LRES2004PT-POE
PCIe 2.1 x4 | Intel I350 | 1G | RJ45 | Quad-port

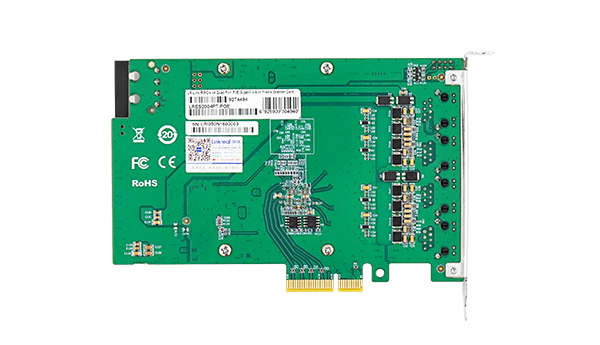

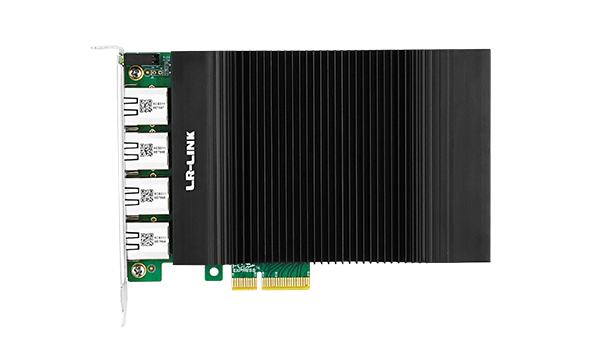

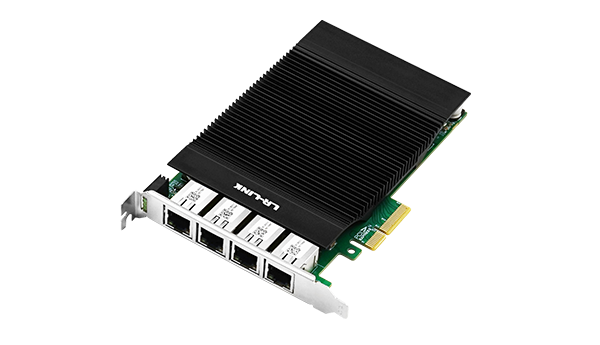

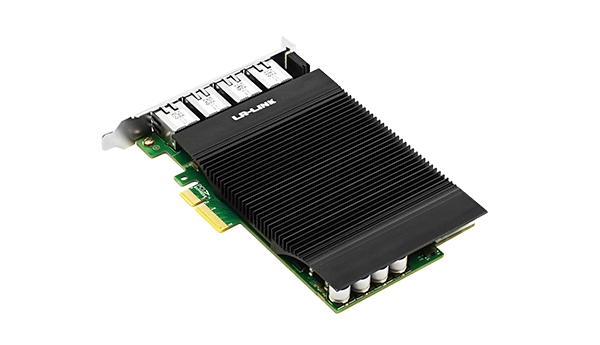

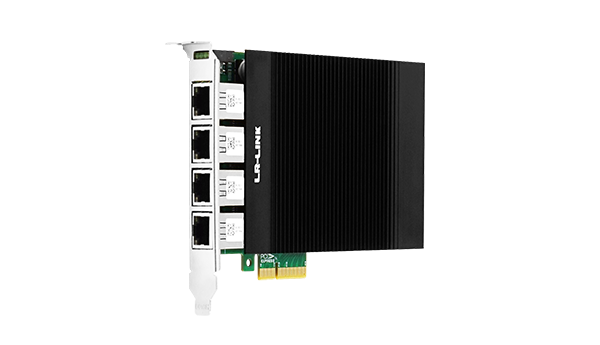

LRES2004PT-POE
PCIe x4 Quad-port PoE+ Gigabit Vision Frame Grabber Card (Intel I350)
The single-port PoE output power consumption is up to 30W, and an external large 4-Pin power supply interface is provided.
Adaptive to the power consumption output required by external devices: Class 0, Class 1, Class 2, Class 3;
The adapter card adopts a wider RJ45 spacing design;
The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time;
The RJ5 connector with thickened gold is carefully selected to ensure a more solid and reliable connection;
The design of four 8-Pin RJ45 heads can better save the precious PCIe slot resources of the motherboard;
The separate design of RJ45 socket and filter makes the product have better performance in conduction and radiation anti-interference performance.
Overview
LRES2004PT-POE is a quad-port copper Gigabit Ethernet PCIe2.1 x4 PoE+ Ethernet image acquisition card independently developed by Linkreal Co., Ltd. based on the Intel I350 main control chip solution. It is also compatible with PCIe x8, x16 channels. The image acquisition card design is mainly designed to be used in industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc., and is also suitable for ordinary servers.
The frame grabber has integrated hardware acceleration to perform TCP/UDP/IP checksum offload and TCP segmentation tasks. The host processing technology can offload the accelerator, freeing up CPU resources to free up more CPU resources to process other applications.
LRES2004PT-POE is developed based on the Intel four-port Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, which allows four ports to fully The duplex working mode works to adapt to high-performance network communication. It can expand bandwidth through link aggregation and save PCI Express channel resources without occupying bus bandwidth.
Specifications
Controller | Intel I350 | |
Cable medium | Copper | |
Fiber Type | CAT-5 | 50M(1Gbps),100M(1Gbps) |
CAT-6 | 50M(1Gbps),100M(1Gbps) | |
CAT-6e | 50M (1Gbps),100M(100Mbps) | |
CAT-7 | 100M(1Gbps) | |
Bracket Height | Full Height | |
Power (min) | 2.736W | |
Power (max) | 6.6W | |
System Support | Windows 7 /8 /8.1 /10 /11 | |
Windows Server 2008 /2012 /2016 | ||
Windows Server 2019 /2022 | ||
RHEL/CentOS 7.3 /7.6 /7.9 | ||
RHEL/CentOS 8.2 /8.3 | ||
Deepin 15.11 /20 /20.6 | ||
Ubuntu 16.04.3 /18.04.5 /20.04.1 | ||
SUSE 12.5 | ||
FreeBSD 12.2 | ||
ZTE New Fulcrum 3.2.2 /5.0.5 | ||
Asianux Server v7.0 | ||
Galaxy Unicorn v10 SP1 | ||
NeoKylin 7.6 | ||
Zhongke Fangde desktop operating system 4.0 | ||
Zhongke Fangde server operating system | ||
Tongxin UOS 20 | ||
Emind OS | ||
VMware ESXi 6.5 /6.7 /7.0 | ||
Mikrotik | ||
iKuai router | ||
Bus Type | PCIe v2.1(5.0GT/s) x4; Compatible with x8 x16 | |
Data rate per port | 1Gbps | |
Connector | 4*1G RJ45 | |
Power Supply | PCIe | |
Protocol Support | IEEE 802.3ae 10 Gigabit Ethernet over fiber IEEE 802.3z Gigabit Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.1AS / IEEE 802.1Q VLAN IEEE 802.3AD / IEEE 802.3ad IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.1P / IEEE 802.3ac |
PXE | Yes |
DPDK | Yes |
WoL | Yes |
iSCSI | No |
Jumbo Frames | Yes |
FCoE | No |
VMDq, SR-IOV | Yes |
1588 | Yes |
Jumbo Frame(max) | 9.5KB |
ESD | ±8KV (Contact) , ±15KV (Air) |
Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to131 ℉) |
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC, CE, RoHS |
PCB Size(L x W x H) | 156.7*104.37*1.6 mm |
Package Size(L x W x H) | 250*170*32 mm |
Weight(g) | * |
10Mbps | Connection Status | Green Link |
Transfer status | Green Blink | |
100Mbps | Connection Status | Green Link + Green Link |
Transfer status | Green Blink + Green Link | |
1Gbps | Connection Status | Green Link + Orange Link |
Transfer status | Green Blink + Orange Link |
P/N | Description |
LRES2004PF-POE | PCIe x4 Quad-port PoE+ Gigabit Vision Frame Grabber Card (Intel I350) |

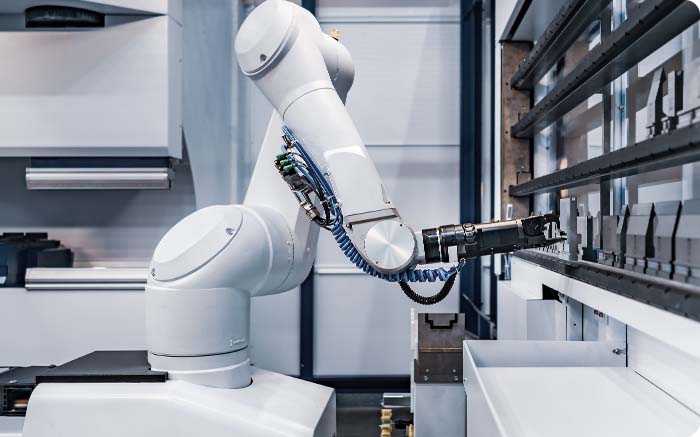

Application
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| Release_28.2.zip | OS Independent | v28.2 | 2024-07-19 |
|
