PCIe 2.1 x4 | Intel I350 | 1G | RJ45 | Dual Port

LRES2002PT-POE

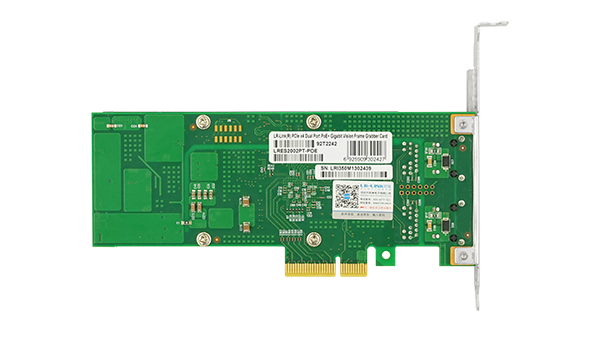

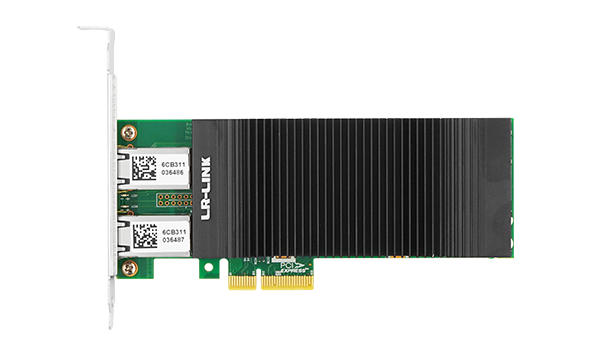

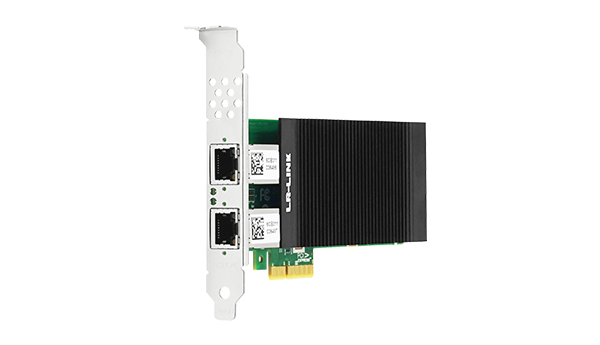

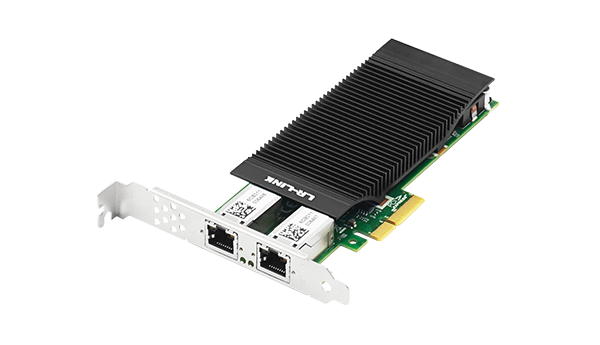

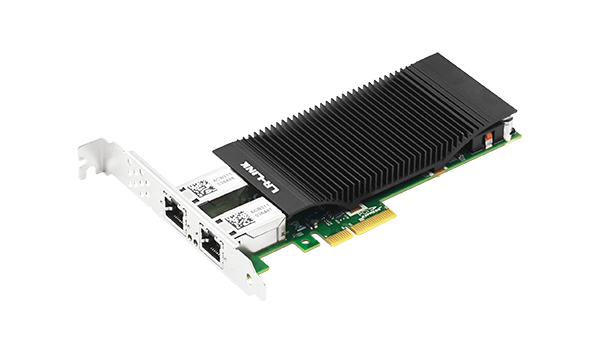

PCIe x4 Dual Port 802.3at PoE+ Gigabit Vision Frame Grabber Card (Intel I350 Based)

Single-port PoE output power consumption up to 30W.

Adaptive power consumption output for external devices: Class 0, Class 1, Class 2, Class 3;

The adapter card adopts a wider RJ45 pitch design;

The interface specially designed for industrial cable access, with LR-LINK customized industrial network cable, can lock the cable and network port more firmly, effectively solve the problem of unstable connection between network port and cable in industrial places. Compatible with common cable access at the same time;

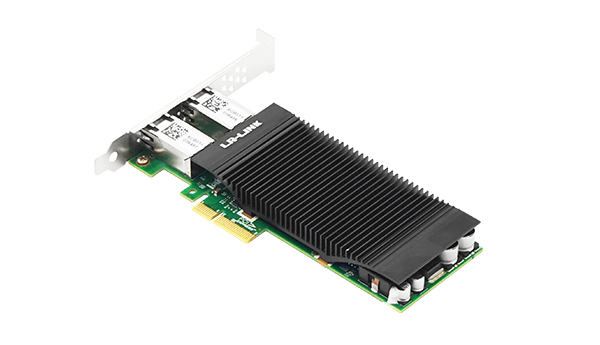

The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time;

Be carefully selected thickened gold RJ5 connector to ensure a more secure and reliable connectivity;

2*8-pin RJ45 head design can save the motherboard's valuable PCIe slot resources.

LRES2002PT-POE

PDF 737.86KB

Download

More Support

Overview Specifications Driver

Overview

LRES2002PT-POE is a PCIe x4 PoE 1G dual-port copper industrial ethernet network adapter based on the Intel I350 chipset,be developed independently by Shenzhen Lianrui Electronics Co., Ltd and is compatible with x8, x16 lanes. The PoE adapter is designed mainly used on industrial field vision inspection server and equipment,vision field client, fast moving Ethernet data transmission equipment etc. It's also suitable for ordinary servers.

The Adapter controller has integrated hardware acceleration capability to perform TCP/UDP/IP checksum and load sharing and TCP segmentation task. Host processing technology can be divided into accelerators and release CPU resources to handle with other applications. The adapter is based on Intel I350 dual gigabit ethernet MAC+PHY (media access controller and physical interface transceiver) dual port controller

Specifications

Controller	Intel I350
Baffle Height	Half & Full height
Power Consumption	3.0W
PoE power/port	30W
Total output power	Power form PCIe up to 75W
System Support	Windows XP/Vista7/8/8.1/10/11
	Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2/2022 R2
	Linux Stable Kernel version 2.6.32.x/3.x/4.x or later;
	Linux CentOS/RHEL 6.x / 7.x or later;
	Ubuntu 14.x/15.x/16.x or later;
	VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type	PCIe v2.1 x4，compatible with x8、x16
Data rate	10/100/1000MbE
Connector	2*8-Pin RJ45

Protocol Support	IEEE802.3af -2003 PoE standard IEEE802.3at -2009 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
iSCSI	No
WoL	No
Jumbo Frames	YES
DPDK	Yes
PXE	Yes
FCoE	No

Operating Temperature	0 ℃ to 55 ℃ (32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃

Size(mm)	16012021
Weight(g)	*

LED Indicators	POE: Green
	1000Mbps:Yellow Link + Green Blink
	100Mbps: Green Blink 10Mbps, No

P/N	Description
LRES2002PT-POE	PCIe x4 Dual Port 802.3at PoE+ GigE Vision Frame Grabber Card (Intel I350 Based)

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
