PCIe 2.1 x4 | Intel I210 | 1G | RJ45 | Quad-port

LRES2039PT-POE

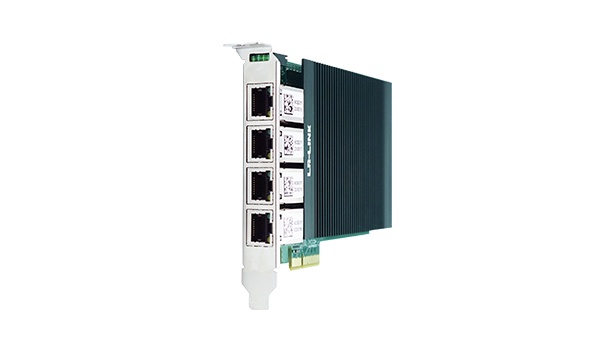

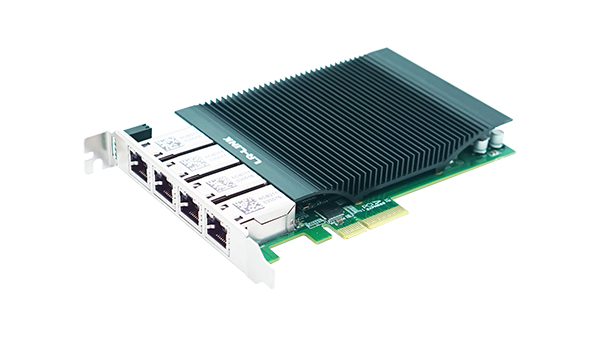

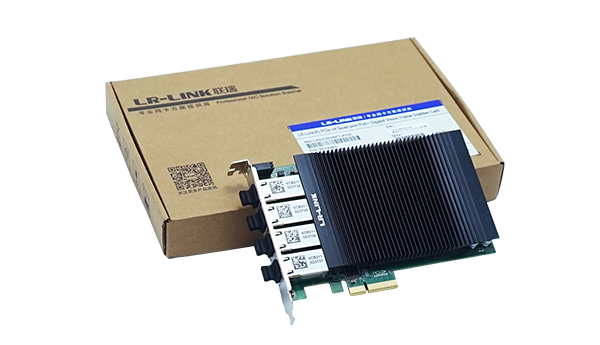

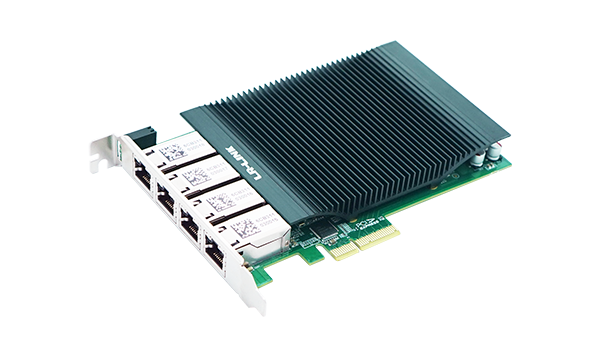

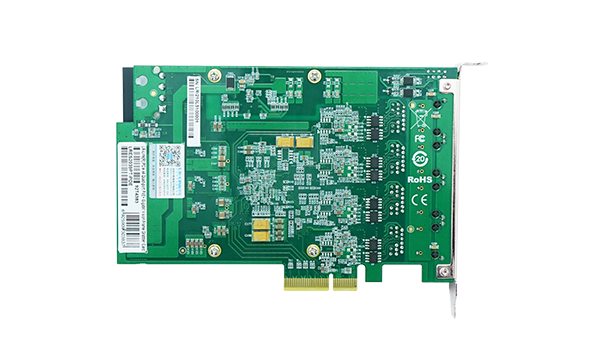

PCIe x4 Quad-port PoE+ GigE Vision Frame Grabber Adapter (Intel I210 Based)

Adaptive to the power consumption output required by external devices: Class 0, Class 1, Class 2, Class 3, Class 4;

The adapter card adopts a wider RJ45 spacing design;

The interface is specially designed for industrial-grade cable access, which effectively solves the problem of compact network ports in industrial places, and is compatible with ordinary cable access;

The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time;

The RJ5 connector with thickened gold is carefully selected to ensure a more solid and reliable connection;

The design of four 8-Pin RJ45 can better save the precious PCIe slot resources of the motherboard.

LRES2039PT-POE

PDF 624.26KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES2039PT-POE is a quad-port copper gigabit ethernet PCI Express v2.1 x4 PoE+ ethernet vision frame grabber card independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I210 chip. It is compatible with PCIe x8 and x16 slots. The adapter design is mainly designed for industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc., but also suitable for ordinary servers.

The adapter has integrated hardware acceleration capabilities to perform TCP/UDP/IP checksum load and TCP segmentation tasks. The host processing technology can load accelerators to free up CPU resources to process other applications.

Specifications

Controller	Intel I210
Cable medium	Copper
Fiber Type	CAT-6: 50M（1Gbps）,100M（1Gbps）,150M(1Gbps)
	CAT6e: 50M（1Gbps）,100M（1Gbps）,150M(100Mbps)
	CAT7: 100M(1Gbps)
Bracket Height	Full Heightt &Low Profilet
Power (MAX)	5.1W
Power (MIN)	3.9W
POE Power	AF; 60W
POE Power	AT: 90W
System Support	Windows 7 /8 /8.1 /10 /11
	Windows Server 2008 /2012 /2016 /2019 /2022
	RHEL/Centos7.3 /7.6 /7.9 /8.2 /8.3
	Deepin 15.11 /20 /20.6
	Ubuntu 16.04.3 /18.04.5 /20.04.1
	SUSE 12.5
	FreeBSD 12.2
	ZTE New Pivot 3.2.2 /5.0.5
	Asianux Server v7.0
	Galaxy Unicorn v10 SP1
	NeoKylin 7.6
	Zhongke Fangde desktop operating system 4.0
	Zhongke Fangde server operating system
	Tongxin UOS 20
	Emind OS
	Open Kylin 0.7.5
	VMware ESXi 6.5 /6.7 /7.0
	Mikrotik
	iKuai router
Bus Type	PCIe v2.1 x4 , compatible with x8 , x16
Data rate per port	10/100/1000Mbps
Connector	4*1G RJ45

Protocol Support	IEEE802.3af -2003 PoE standard IEEE802.3at -2009 PoE+ standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
PXE	No
DPDK	Yes
WoL	No
SR-IOV	No
Jumbo Frames	Yes
FCoE	No
UEFI	Yes

Operating Temperature	0 ℃ to 55 ℃ (32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS

PCB Size(mm)	104.37156.71.6
Packag Size(mm)	25017032

10M	LINK	Green Link
10M	ACT	Green Blink
100M	LINK	Green Link + Green Link
100M	ACT	Green Blink + Green Link
1G	LINK	Green Link + Orange Link
1G	ACT	Green Blink + Orange Link

P/N	Description
LRES2039PT-POE	PCIe x4 Quad-port PoE+ GigE Vision Frame Grabber Adapter

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
