LREG1007PT

PCIe 3.0 x8 | XILINX | 10G | Quad-port

LREG1007PT

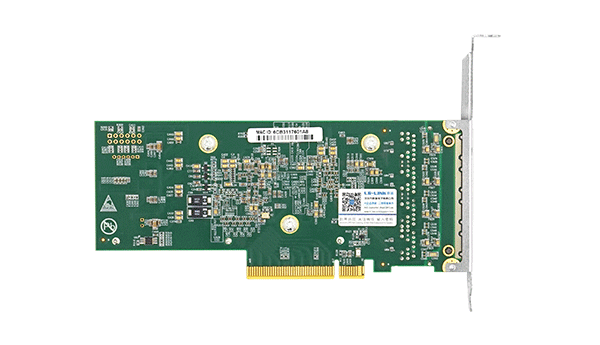

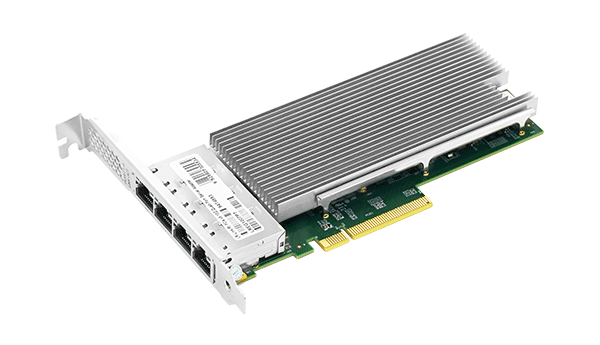

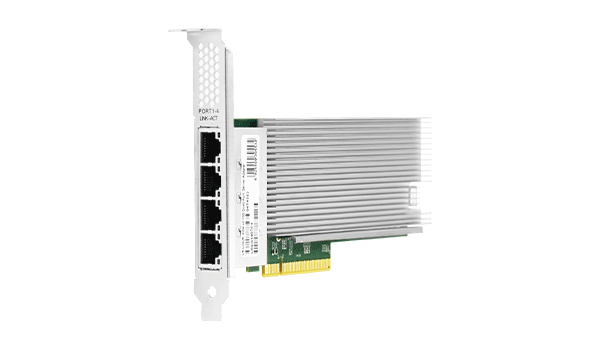

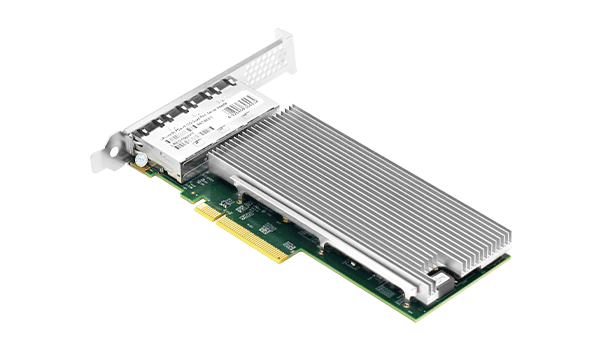

PCIe x8 Quad-port 10 Gigabit Copper Ethernet Network Adapter(XILINX)

This product is mainly designed for scenarios such as cloud computing, network security, and industrial control
Its bandwidth capacity is 40Gbps
It supports DPDK high-performance data receiving and sending packets
It supports forwarding functions based on MAC and VLAN.
Overview

LREG1007PT is a 10G intelligent network adapter based on the chip solution independently developed by Linkreal CO.,Ltd. The product integrates four 10Gigabit Ethernet Medium Access Controller (MAC) and RJ45 port, which not only has the functions of Ethernet MAC and PHY layer, but also can effectively manage network traffic.

The product is mainly designed for cloud computing, network security and industrial control scenarios. It provides kernel mode and user mode drivers to adapt to different operating systems. The product supports hardware virtualization, multi-queue and other offloading functions, which can effectively reduce CPU overhead.

It meets the needs of network traffic, business offloading, accelerated processing, virtualization and big data computing, and is an ideal solution to achieve high-performance network applications.


Specifications

Specifications



Controller

Xilinx FPGA

Cable medium

Copper

Cable Type

10GBase-T & 1000Base-T

Bracket Height

Low Profile & Full Height

Power (min)

18.42W

Power (max)

33W

System Support

Windows 10

Windows 11

Windows 2022

Centos7.9

Bus Type

PCIe 3.0 x8

Data rate per port

1G/10Gbps

Connector

4*10G RJ45

Power Supply

PCIe

ESD_Contact Discharge

±6KV

Lightning Surge

±1KVcommon-mode



Technical Features



Protocol Support

IEEE 802.1P     IEEE 802.1Q          IEEE 802.1AD

IEEE 802.1AX    IEEE 802.3X

PXE

No

DPDK

Yes

WoL

No

Jumbo Frames

9.6KB

SR-IOV

Yes

UEFI

No

Environment Features



Operating Temperature

0to 55(32 to 131 )

Storage Temperature

-40 to 85 (-40 to 185 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS



Physical Features



PCB Size(mm)

164*68.9*1.6

Package Size(mm)

222*147*28



LED Indicators



1/10G

Connection Status

Green Link

Transfer status

Green Link + Orange Blink





Order Information



P/N

Description

LREG1007PT

PCIe x8 Quad-port 10Gigabit Copper Ethernet Network Adapter(XILINX)



PS: Above details are only for reference, if there is any change,no prior notice.
