LRES1042PT
PCIe 3.0 x4 | AQC107 | 10G | Dual-port

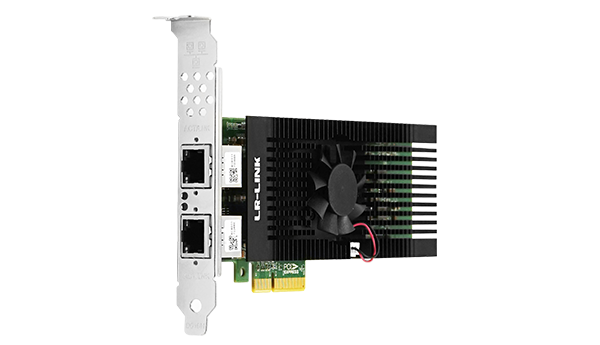

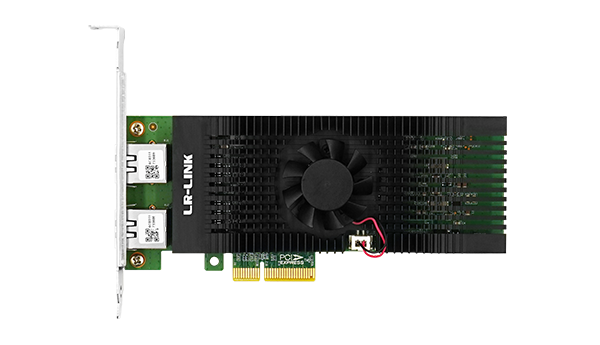

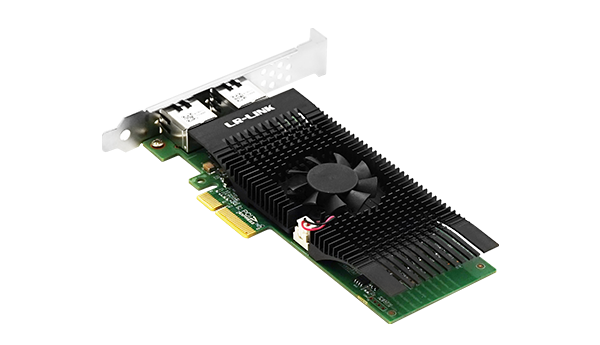

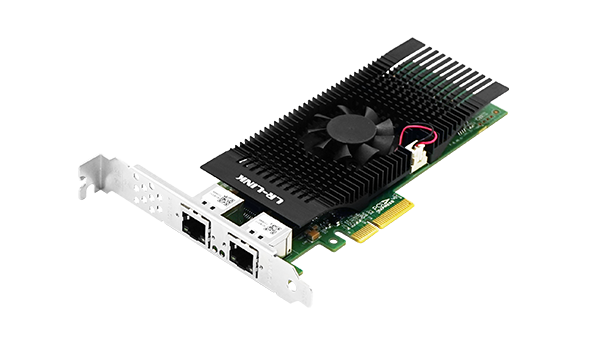

LRES1042PT
PCIe x4 dual-port 10G Frame grabber
Integrate PCIe, MAC and PHY to minimize board space and power consumption;
Support low power consumption mode;
Support link check between devices;
Support PCIe v3.0 x4.
Overview
LRES1042PT is a PCI-Express x4 dual electrical port 10G Ethernet network adapter independently developed by Linkreal Co., Ltd. based on the Marvell AQC107 chip solution. It is also compatible with PCIe x8 and x16 channels. It is a high-performance 5-speed adapter that provides power and space-efficient connectivity to client systems. The universal interface of PCIe v3.0 Network communication needs provide powerful and flexible network connection solutions for enterprises and data centers.
LRES1042PT is compatible with IEEE 802.3an & IEEE 802.3 bz standards and can realize the transmission of 2.5GBASE-T, 5GBASE-T, 10GBASE-T, 1000BASE-T and 100BASE-TX on 100 meters twisted pair cabling. Supports MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload for high performance and low CPU utilization, with jumbo data frame support up to 16 KB.
10G Frame Grabber Customer Application Case 1
10G Frame Grabber Customer Application Case 2
LR-LINK 5/10G machine vision inspection solution--recommended configuration
Specifications
Model | LRES1042PT | |
Controller | Marvell AQC107 | |
Cable medium | Copper | |
Cable type | 100Base-TX、100Base-T4、100Base-T 1000BASE-CX、1000BASE-T 2.5GBASE-T、5GBASE-T、10GBSAE-T | |
Bracket Height | Low Profile & Full Height | |
Power (min) | 6.84 W | |
Power (max) | 11.292 W | |
Bus Interface | PCIe v3.0 (8.0GT/s) x4; Compatible x8 x16 | |
Data rate per port | 100Mbps;1/2.5/5/10Gbps | |
Connector | 2*10G RJ45 | |
Power Supply | PCIe | |
Operating System Support | * Windows 8 /8.1 /10 /11 * Windows Server 2008 /2012 /2016 * Windows Server 2019 /2022 * Deepin 15.11 /20 /20.6 * VMware ESXi 6.7 * Galaxy Unicorn v10 * NeoKylin 7.6 * RHEL/Centos 7.3 /7.6 /7.9 * RHEL/Centos 8.2 /8.3 * iKuai router | * Ubuntu 16.04.3 /18.04.5 * Ubuntu 20.04.1 /22.04.2 * SUSE 15.4 * ZTE New Fulcrum 5.0.5 /3.2.2 * Tongxin UOS 20 * Asianux Server v7.0 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS |
PXE | Yes | |
DPDK | Yes | |
WoL | No | |
iSCSI | No | |
Jumbo Frames | Yes | |
UEFI | Yes | |
SCAN CHAIN | No | |
SR-IOV | No | |
1588 PTP | Yes | |
Jumbo Frame(max) | 16KB | |
ESD_Contact discharge | ±8KV (Class C) | |
ESD_Air discharge | ±15KV (Class C) | |
Protocol Support | IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair IEEE 802.3bz 2.5/5GBASE-T IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 802.3x Full Duplex and flow contro IEEE 802.3az - Energy Efficient Ethernet (EEE) | |
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| Linux-driver_2.5.6_3.10_to_newer | Linux | 2.5.6 | 2024-08-13 |
 |
| (Windows_10_x86) Marvell_AQtion_32-bit_Win_ver2.1.20 | Windows | 2.1.20 | 2024-08-13 |
|
| (Windows_10_x64、Windows11) Marvell_AQtion_Win-64-bit_3.1.7 | Windows | 3.1.7 | 2024-08-13 |
|
| (Windows_10_LTCS ) Marvell_AQtion_Win_2.2.3 | Windows | 2.2.3 | 2024-08-13 |
|
| （Windows_7_8_8.1）Win_ver_2.1.17 | Windows | 2.1.17 | 2024-08-13 |
|
