LREC9802BT
LREC9802BT

PCIe 2.0 x8 | Intel X540 | 10G | RJ45 | Dual-port

LREC9802BT

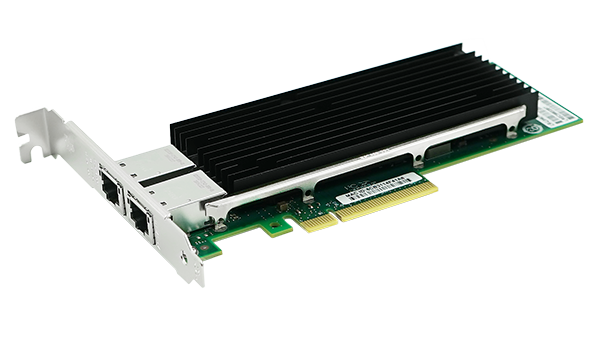

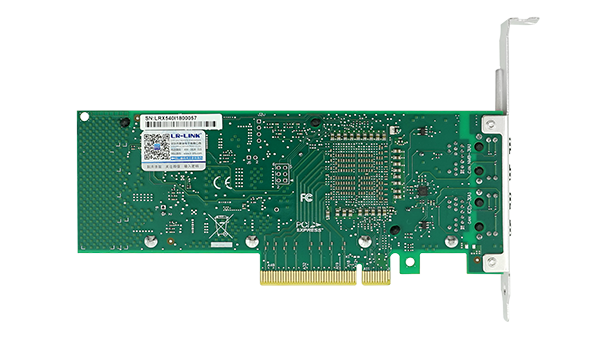

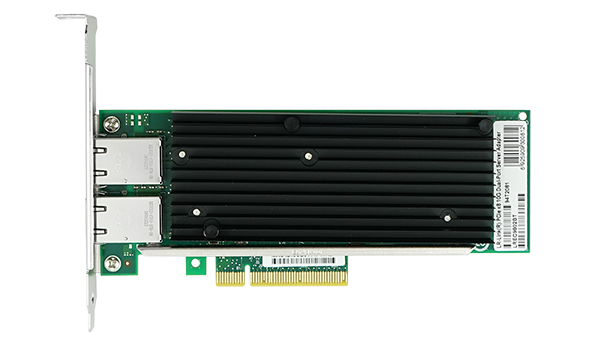

PCIe x8 Dual-port 10G Ethernet Network Adapter (Intel X540)

Dual-port 10GbE copper port adapters
PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes
PXE、iSCSI 、FCoE boot

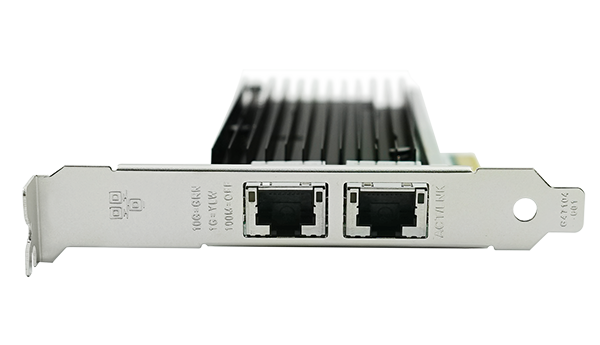

RJ45 connectivity
Network Virtualization
IEEE 802.3an/ab and 10G Ethernet Specification Compliance
Low Profile and Full-Height bracket
LREC9802BT
PDF 0B
Download
More Support
Overview

LREC9802BT is a PCIe x8 10Gbps Dual Copper Port Ethernet copper Server Adapter based on Intel X540 chipset, and is compatible with PCIe x16 slot.Thisserver adapteroptimizes its performance , making the system I/O no longer be the bottleneck of the network applicationand itcan be used in any PCI Express X8 host device and its master control (Intel X540 10G Ethernet controller) includes two fully integrated EthernetMediaAccessControl (MAC) and two fully integrated 10GBASE-T copper PHYs ports.




The Server Adapter LREC9802BT Simplifies Migration to 10 Gigabit Ethernet(GbE), Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP).




Jumbo Frame Transfer, No Frame Loss: LR-LINK PCIe x4 dual-port 10G Ethernet Network Adapter LRES1042PT


Specifications

Controller

Intel X540

Transmission Rate Per Port

10GbE/1GbE/100MbE

Network Standard Physical Layer Interfaces

Cat-6A 10G up to 100m，Cat-6 10G up to 55m

Cat-5E/Cat-6/Cat-6A 1G/100M up to 100m

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0℃to 55℃(32℉to 131℉)

Virtualization Technology

VMDq,PCI-SIG SR-IOV,Intel VT-c

LED Indicators

10Gb/s: Green and Green blinking,1Gb/s/100Mb/s: Green and Orange blinking

Operating System Support

Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2

Windows 7 / 8 / 8.1 / 10

FreeBSD 9 / 10 / 11 or later

Linux Stable Kernel version 2.6./x/3.x/4.x or later

VMware ESX/ESXi 5.x/6.x or later

Driver
File name For OS Version Upload time Downlaod
ixgbe-5.20.10.tar.gz Linux 5.20.10 2024-08-15
Release_28.2.zip OS Independent v28.2 2024-07-19
