LREC6880BT
PCIe 3.0 x4 | AQC107 | 10G | RJ45 | Single-port
LREC6880BT

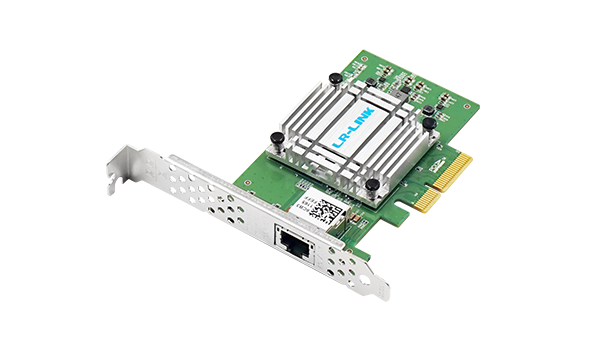

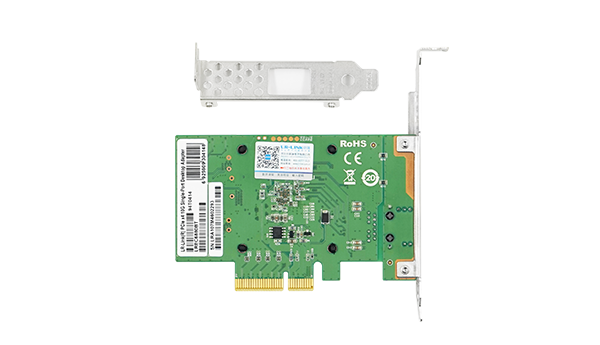

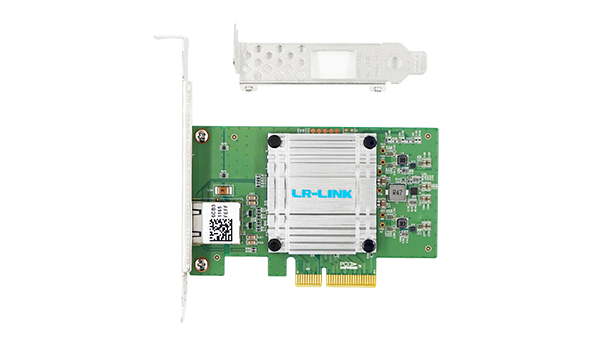

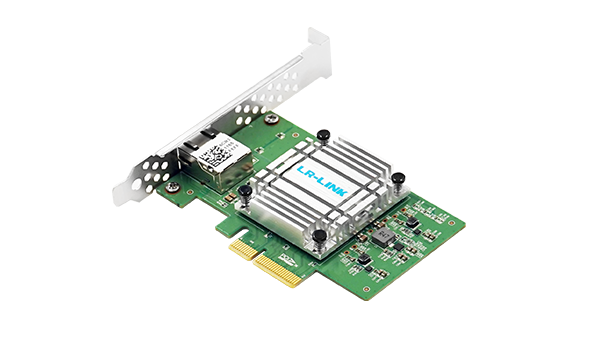

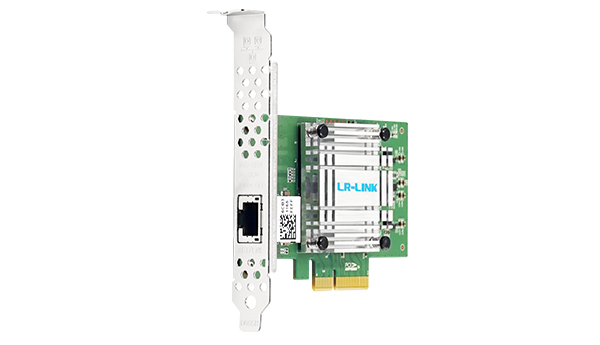

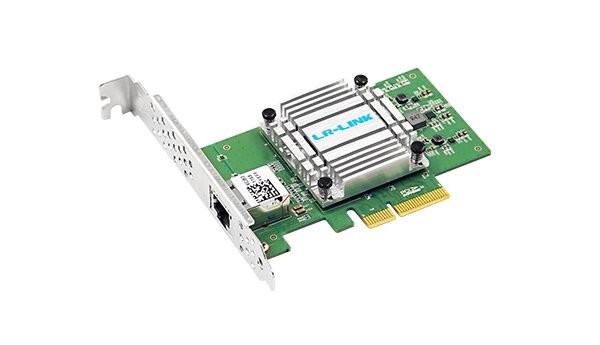

PCIe 3.0 x4 Single-port RJ45 10G Ethernet Network adapter v2 (Aquantia AQtion AQC107)
[Brand]: Lr-link
[Hardware Interface]: PCIE x 4
[Operating System]: 8 . 1,Linux,Operating System,Ubuntu,Windows,Windows 7
[Color]: multicolor
[Compatible Devices]: Desktop
[Item Dimensions LxWxH]: 4.61 x 4.72 x 0.83 inches
[Data Link Protocol]: Ethernet, Gigabit Ethernet
[Data Transfer Rate]: 10 Gigabytes Per Second
Overview
LREC6880BT is a PCI Express 3.0 x4 single-port 10 Gigabit Ethernet network adapter independently developed by Linkreal Co., Ltd. based on the Aquantia AQtion AQC107 chip solution.
【Aquantia AQtion controller】: The 10g single-port RJ45 network card is based on the original Aquantia AQtion AQC107 controller, which provide power and space-efficient connectivity to client systems. PCIe 2.1 x4, compatible with x8 , x16.
【Supported operating systems】: Windows 7/8/8.1/10, Windows Windows Server 2008 R2 /2012 R2 /2016 R2 /2019 R2, Linux, Linux CentOS/RHEL 6.5 / 7.x or later, Ubuntu 14.x/15.x/16.x or later, etc.
【Technical Support】: WoL, Jumbo Frames, DPDK, PXE
【Easy to install】: install the operating system with its driver CD, or download it from the Intel official website. Includes low-profile and full-height stands to support standard and ultra-thin computers/servers.
【After Sales Service】: 24/7 customer service, 30-day free returns, 1-year free warranty, and lifetime technical support.
Jumbo Frame Transfer, No Frame Loss: PCIe x4 Single-port 10G Copper Ethernet Network Adapter LRES2051PT
Specifications
Controller | Aquantia AQC107 |
Transmission medium | Copper |
Copper Type | 10GBase-T Cat 6a or higher , up to 100m |
2.5G/5GBase-T Cat 5E or higher , up to 100m | |
100/1000Base-T Cat 5 or higher , up to 100m | |
Baffle Height | Low Profile & Full Height |
Power Consumption | 4.75W |
OS Support | Windows 7/ 8/ 8.1/ 10/ 11 |
Windows Server 2008 R2/ 2012 R2/ 2016 R2 / 2019 R2/ 2022 R2 | |
RHEL/Centos 6.x/ 7.x or later | |
Ubuntu 16.04.3/ 18.04.5/ 20.04 or later | |
SUSE 12.5 or later | |
FreeBSD 9 / 10 / 11 or later | |
Vmware ESX/ESXi 4.x / 5.x / 6.x or later | |
Bus Type | PCIe v3.0 x4 , compatible with x8 / x16 |
Data rate per port | 10G/5G/2.5G/1G/100M |
Connector | 1*10G RJ45 |
Power Supply | PCIe |
Standards compliant | IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair IEEE 802.3bz 2.5/5GBASE-T IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 802.3x Full Duplex and flow contro IEEE 802.3az - Energy Efficient Ethernet (EEE) |
PXE | Yes |
iSCSI | No |
WoL | Yes |
Jumbo Frames | Yes |
DPDK | Yes |
FCoE | No |
Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
Certification | FCC, RoHS, CE |
PCB Size (mm ±0.5mm) | 105.1*68.1*1.6 （±0.1） |
Size (mm ±0.5mm) | 179*150*30 （±0.1） |

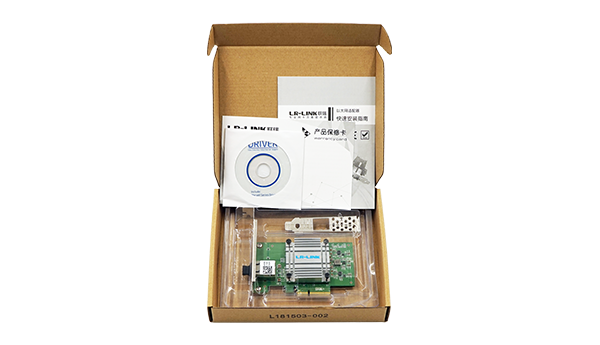

2U Baffle | *1 |
Installation guide | *1 |
Product warranty card | *1 |
Net Weigh (g) | * |
The states | 10G , Orange Link + Green Blink |
5G/2.5G/1G/100M , Green Link + Green Blink |
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| Linux-driver_2.5.6_3.10_to_newer | Linux | 2.5.6 | 2024-08-13 |
 |
| (Windows_10_x86) Marvell_AQtion_32-bit_Win_ver2.1.20 | Windows | 2.1.20 | 2024-08-13 |
|
| (Windows_10_x64、Windows11) Marvell_AQtion_Win-64-bit_3.1.7 | Windows | 3.1.7 | 2024-08-13 |
|
| (Windows_10_LTCS ) Marvell_AQtion_Win_2.2.3 | Windows | 2.2.3 | 2024-08-13 |
|
| （Windows_7_8_8.1）Win_ver_2.1.17 | Windows | 2.1.17 | 2024-08-13 |
|
