PCIe 2.1 x8 | Intel X550 | 10G | RJ45 | Dual-port

LRES1025PT

PCIe x8 Dual-port Copper 10G Ethernet Network Adapter (Intel X550)

Based on Intel X550 main control chip;

A dual-port copper cable 10G Ethernet network adapter;

PCIe v2.1X8 bus, compatible with PCIe X16 bus;

Single chip double port 100M/ 1/2.5/5/10GBE multiple speed support;

LRES1025PT

PDF 533.66KB

Download

More Support

Overview Specifications Driver Related products

Overview

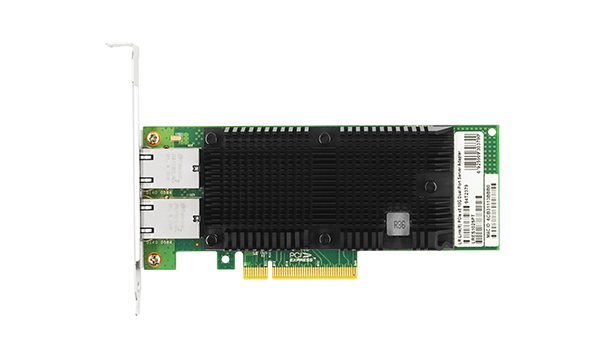

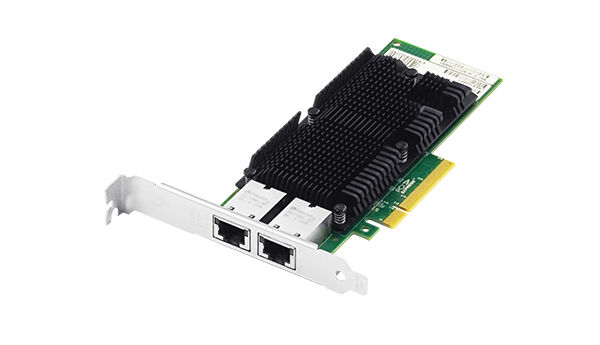

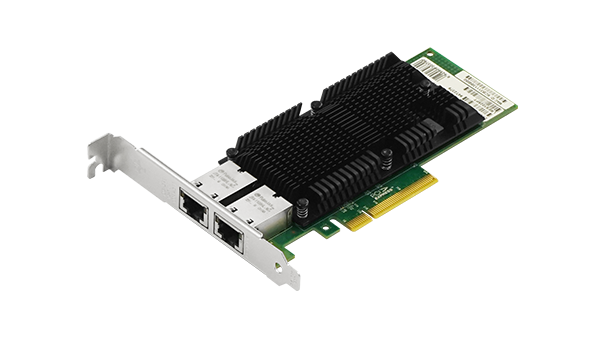

LRES1025PT is a dual-port copper 10G ethernet network adapter independently developed by Linkreal Co., Ltd based on Intel X550. It adopts PCIe v2.1 x8 bus and is compatible with PCIe x16 slot.

LRES1025PT is a single chip with double port 100M/1/2.5/5/10GbE Nbase-T multiple rate, It can meet all kinds of flexible connections required by all networks.

The LRES1025PT supports auto-negotiation between 100MbE, 1GbE & 10GbE to provide smooth transitions & easy migration to 10GbE rate compatibility, and can also be used in 2.5/5.0G network environments. CAT6 and CAT6A cabling are used as standard cabling in many data centers. LRES1025PT has advantages of low cost and easy deployment in network architectures ranging from 1m to 100m.

Jumbo Frame Transfer, No Frame Loss: PCIe x4 dual-port 10G Ethernet Network Adapter LRES1042PT

Specifications

Controller	Intel X550

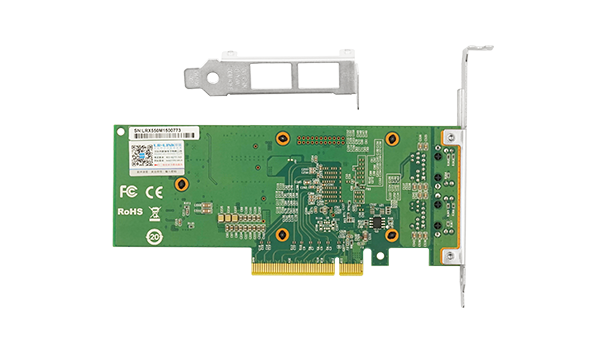

Baffle Height	Half height and full height configuration
Power Consumption	9.0W
System Support	Windows 7/8/8.1/10/11;
	Windows Server 2008 R2/2012 R2/2016 R2/2019 R2/2022 R2
	Linux Stable Kernel version 4.x or later;
	CentOS/RHEL 7.x or later;
	Ubuntu 16.x or later;
	FreeBSD 9/10/11 or later;
	VMware ESX/ESXi 4.x or later;
Bus Type	PCIe v2.1 (8.0GT/s) x8; compatible with x16
Data rate	100M/1/2.5/5/10Gbps
Connector	2*10G RJ45
Power Supply	PCIe

Protocol Support	IEEE 802.3an 10GBASE-T Ethernet IEEE 802.3bz NBASE-T* technology (2.5 & 5.0GbE) IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3u 1000Base-T Ethernet IEEE 802.1Qaz Enhanced Transmission Selection IEEE 802.3x Full Duplex and flow control IEEE 802.1AS IEEE 802.1Q VLAN IEEE 802.3AD IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet
PXE	Yes
DPDK	Yes
WoL	No
iSCSI	No
Jumbo Frames	Yes
FCoE	No
SR-IOV	Yes

Driver

File name	For OS	Version	Upload time	Downlaod
ixgbe-5.20.10.tar.gz	Linux	5.20.10	2024-08-15
Release_28.2.zip	OS Independent	v28.2	2024-07-19
