PCIe 3.0 x4 | AQC113 | 10G | RJ45 | Single-port

LRES2051PT

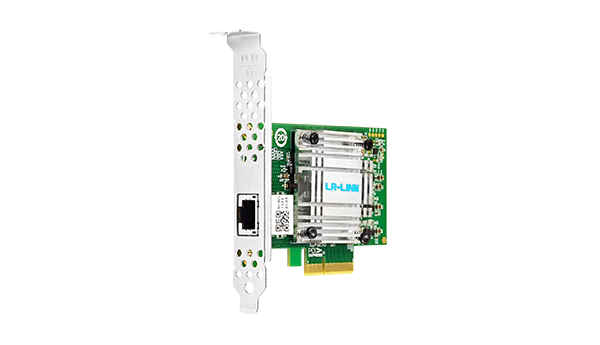

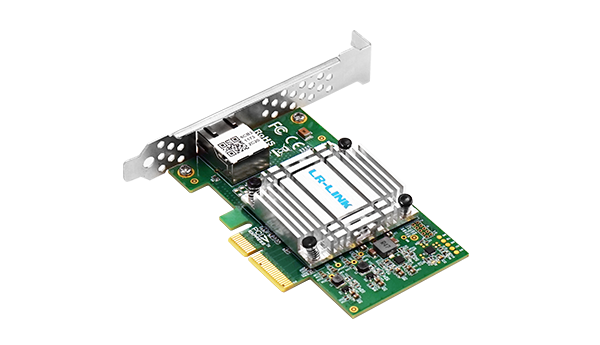

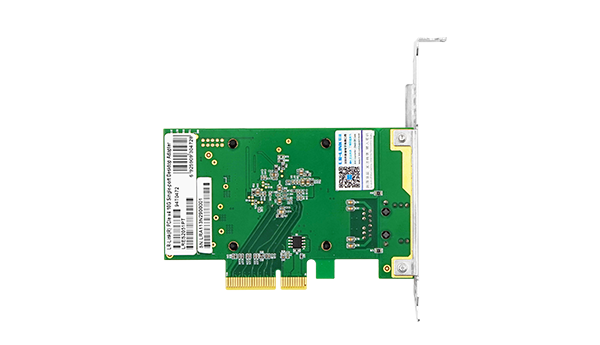

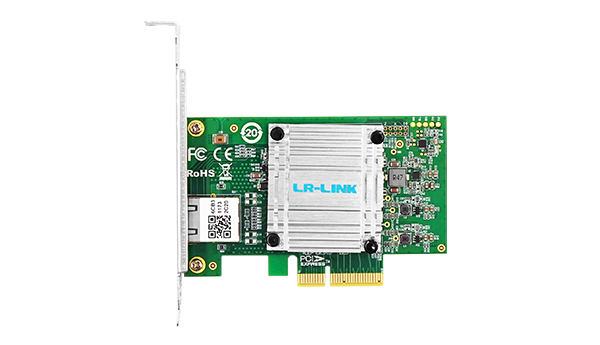

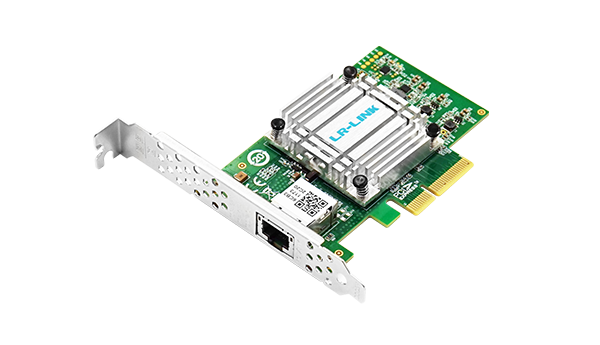

PCIe 3.0 x4 Single-port 10G Copper Ethernet Network Adapter

Improves CPU utilization and network performance

Support low power consumption mode

Support six network rates

Support PCIe v3.0 x4

LRES2051PT

PDF 345.6KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES2051PT is a single-port 10G Ethernet network adapter developed by Linkreal Co., Ltd based on the Marvell AQC113 master control scheme. This adapter is compatible with PCIe x8 and x16 channels and is a high-performance six-speed adapter that provides power and space-efficient connections for client systems while the universal PCIe v3.0 x4 interface provides better flexibility.

LRES2051PT is compatible with IEEE 802.3an & IEEE 802.3 bz standards and can achieve 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T transmission on 10-meter twisted pair wiring. The product has excellent ESD anti-static performance and supports jumbo frames up to 16 KB, which can fully utilize the Ethernet performance of the network adapter and improve data transmission efficiency.

Jumbo Frame Transfer PCIe x4 dual-port 10G Ethernet Network Adapter: LRES1042PT

Specifications

Model	LRES2051PT
Controller	Marvell AQC113
Cable medium	Copper
Copper Cable Type	10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-T/ 10BaseT
Bracket Height	Low Profile & Full Height
Power (min)	1.2177 W
Power (max)	2.805W
Bus Interface	PCIe v3.0 (8GT/s) x4; Compatible x8 x16
Data rate per port	10G /5G /2.5G /1G /100M /10M
Connector	1*10G RJ45
Power Supply	PCIe
Operating System Support	* Windows 10 /11 * Windows Server 2022 * RHEL/Centos7.3 /7.6 /7.9 /8.2 /8.3 * Deepin 15.11 /20 /20.6 * Ubuntu 16.04.3 /18.04.5 * ZTE New Fulcrum 3.2.2 /5.0.5 * Asianux Server v7.0 * NeoKylin 7.6	* Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Tongxin UOS 20 * Emind OS * OpenKylin 0.7.5 * iKuai router
PXE	Yes
WoL	Yes
Jumbo Frames	Yes
SR-IOV	No
ESD_Contact discharge	±8KV
ESD_Air discharge	±15KV
Lightning surge test	±1KV common mode
Protocol Support	IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair IEEE 802.3bz 2.5/5GBASE-T IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 802.3x Full Duplex and flow control IEEE 802.3az - Energy Efficient Ethernet (EEE)

10M/100M/1G

/2.5G/5G/10G

Connection Status

(ACT) Orange Link + (LINK) Green Link

Transfer status

(ACT) Orange Link + (LINK) Green Blink

Operating Temperature	0℃ to 70℃ (-32 ℉ to 158 ℉)
Storage Temperature	-55 ℃ to 105 ℃ (-67 ℉ to 221 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS

Driver

File name	For OS	Version	Upload time
(x64_21H2_22H2_or_newer) Marvell AQtion_Win10-11_3.1.8	Windows	3.1.8	2024-08-13
(x32)Marvell_AQtion_32-bit_Win_ver2.1.20	Windows	2.1.20	2024-08-13
marvell_linux_2.5.6	Linux	2.5.6	2024-08-13
