PCIe 3.0 x8 | Intel X710 | 10G | RJ45 | Dual-port

LRES1012PT

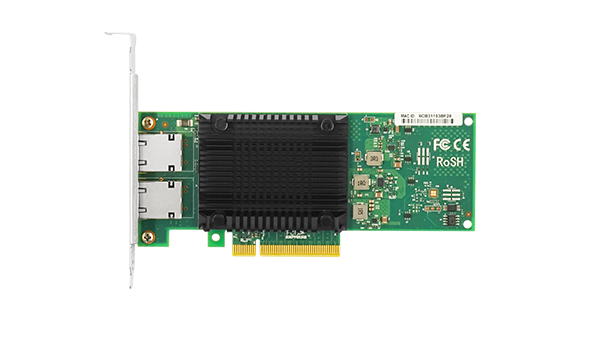

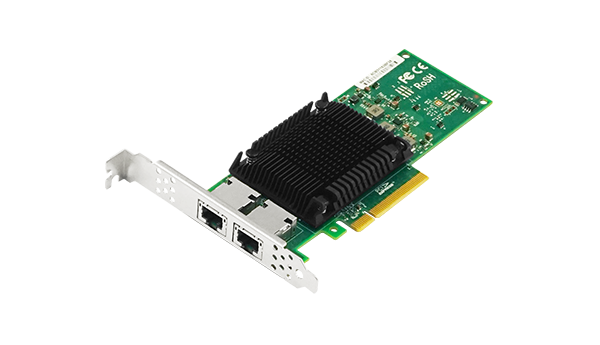

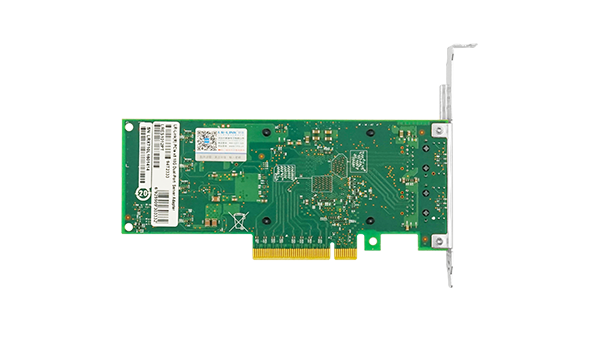

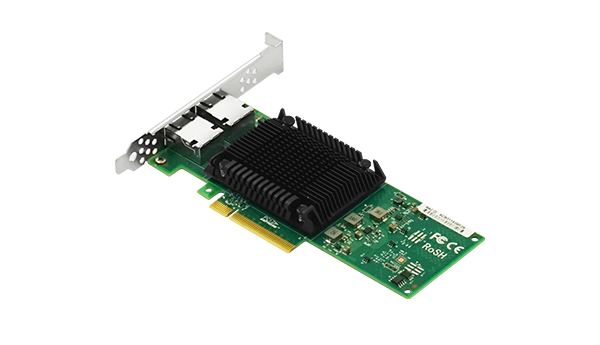

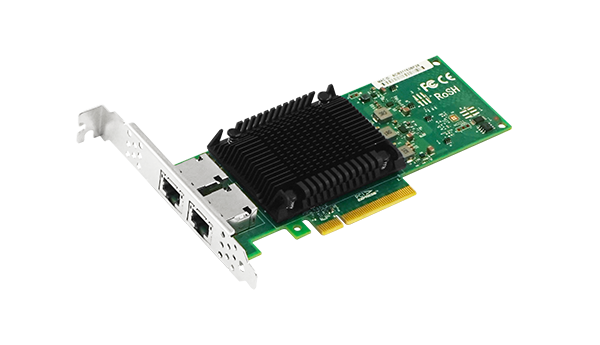

PCIe x8 Dual-port 10G Copper Ethernet Network Adapter (Intel X710)

Based on Intel master dual port 10G Ethernet network adapter,

Compatible with PCIe X16 channels.

This adapter applies to the server and its application devices.

NBAE-T support with 2.5G and 5.0G and adaptive link rates.

LRES1012PT

PDF 556.45KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES1012PT is a dual-port copper cable 10G ethernet network adapter independently developed by Linkreal Co., Ltd. based on Intel chip, which is compatible with PCIe x16 channel. The adapters are designed primarily for use on servers and their application devices, as well as for common servers.

The LRES1012PT was developed based on Intel's dual-port 10G multi-rate ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, adding 2.5G and 5.0G NBAE-T support with adaptive link rates to the previous generation of 10 Gigabit ports. In a variety of rate adaptive but also greatly reduce the power consumption to bring better performance.

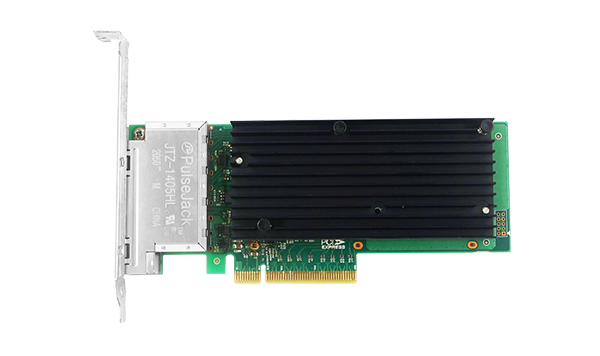

PCIe x8 Quad-port 10G Copper Ethernet Network Adapter (Intel X710): LRES1013PT

Specifications

Controller	Intel X710
Baffle Height	Full-height & half-height bracket
Power Consumption	9.6W
System Support	Windows 10
	Windows Server 2016 R2/2019 R2
	Linux Stable Kernel version 3.x/4.x or later;
	Linux CentOS/RHEL 7.x or later;
	Ubuntu 16.x or later;
	VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type	PCIe v3.0 x8, compatible with x16
Data rate per port	100/1000MbE/2.5/5/10GbE
Connector	2*10G RJ45

Protocol Support	IEEE 802.3an 10GBASE-T Ethernet IEEE 802.3bz 2.5/5GBASE-T Ethernet IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588
iSCSI	No
WoL	No
Jumbo Frames	YES
DPDK	Yes
PXE	Yes
FCoE	No

Driver

File name	For OS	Version	Upload time
ixl-1.14.2.tar.gz	FreeBSD	1.14.2	2024-08-14
i40e-2.25.11.tar.gz	Linux	2.25.11	2024-08-14
Release_28.2.zip	OS Independent	v28.2	2024-07-19
