LRES1053PT
PCIe 3.0 x8 | AQC113 | 10G | Quad-port
LRES1053PT

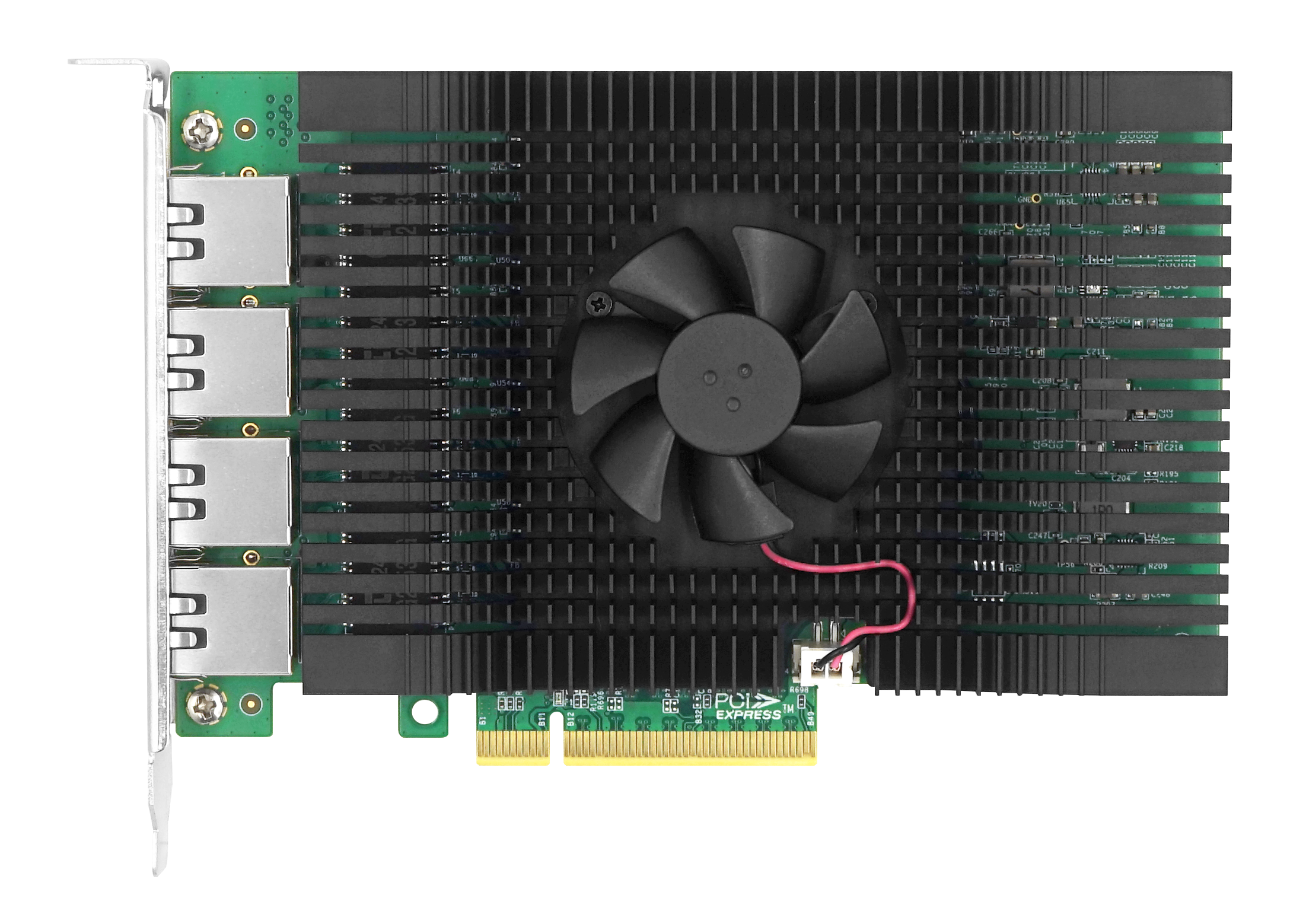

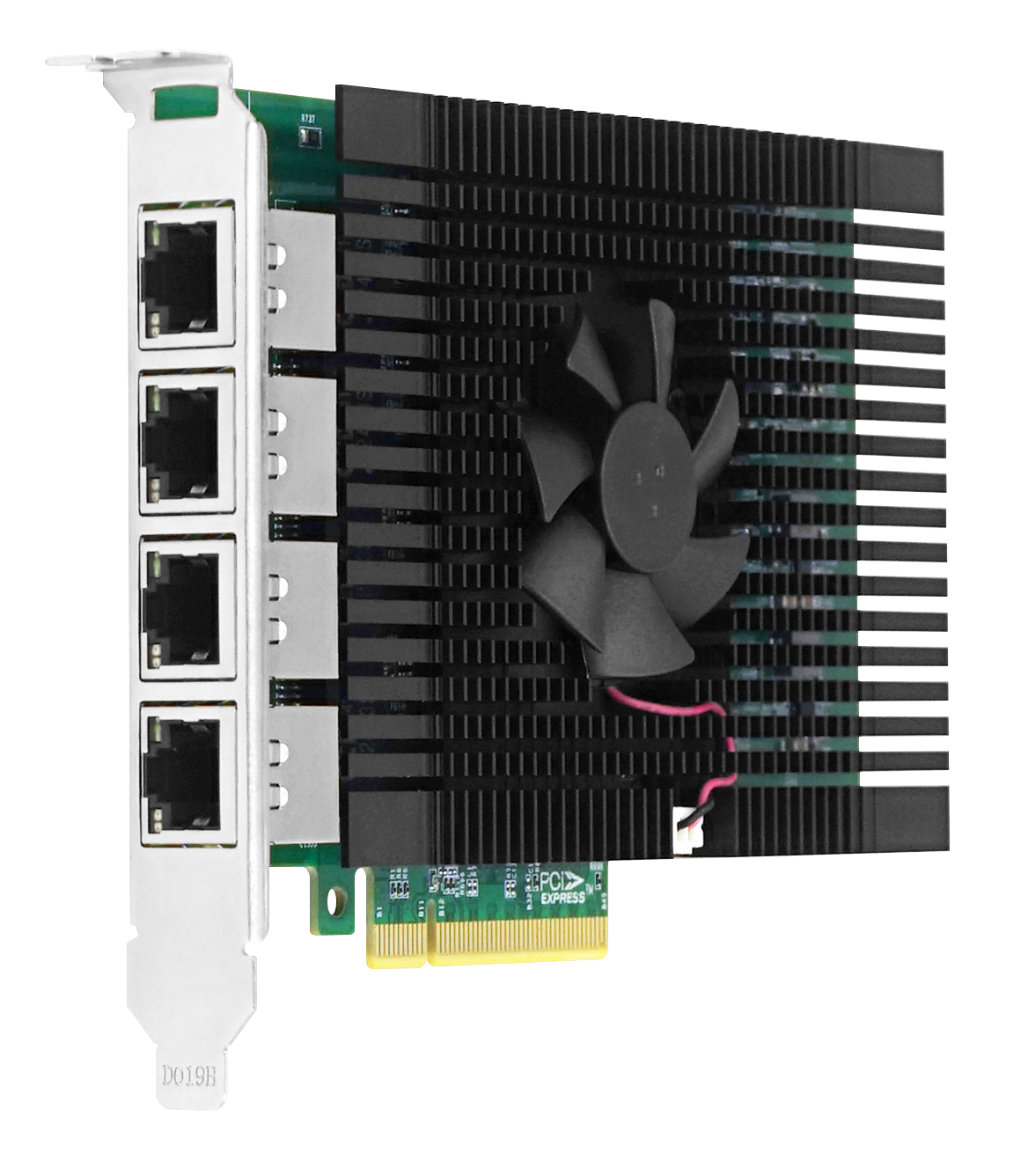

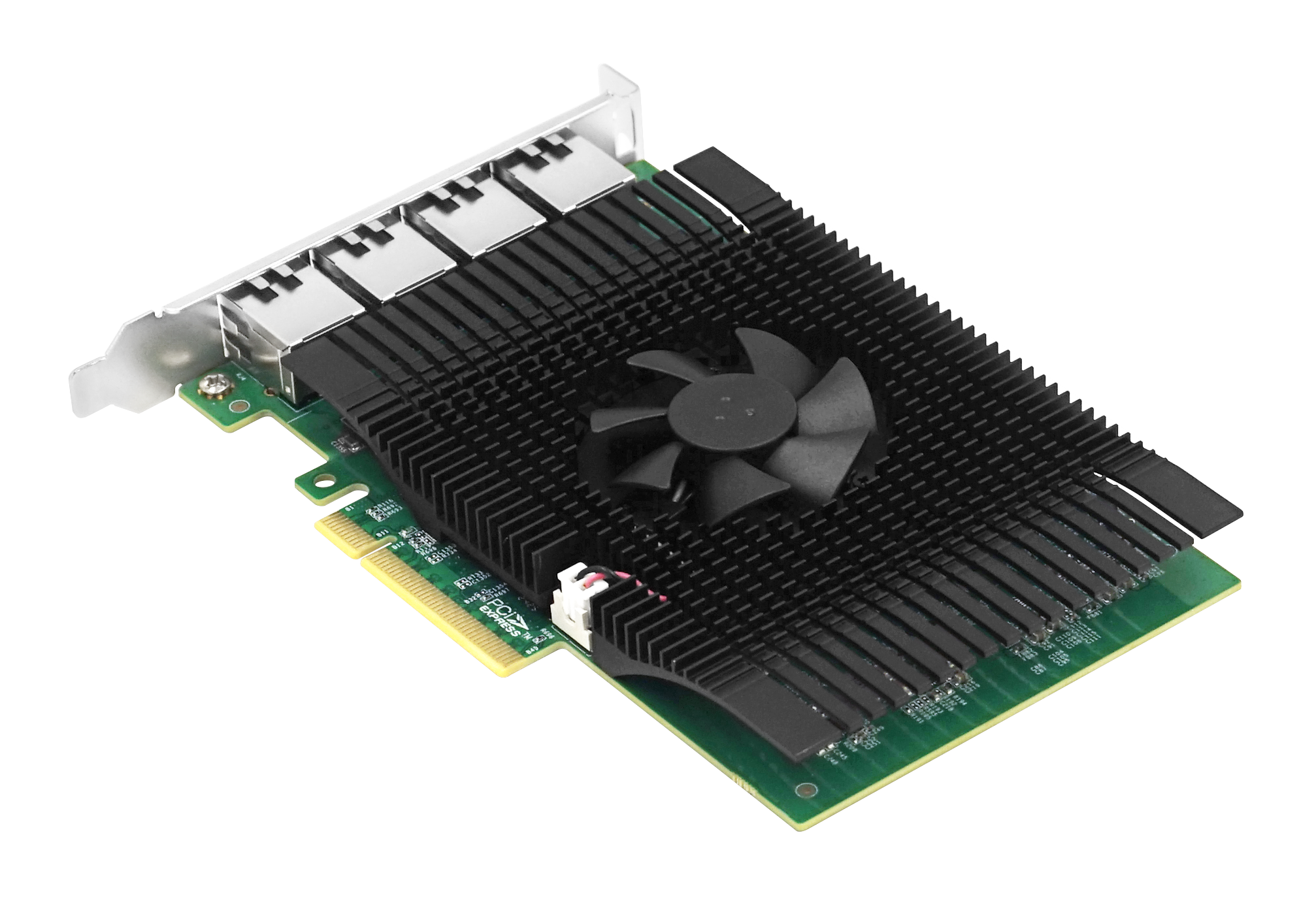

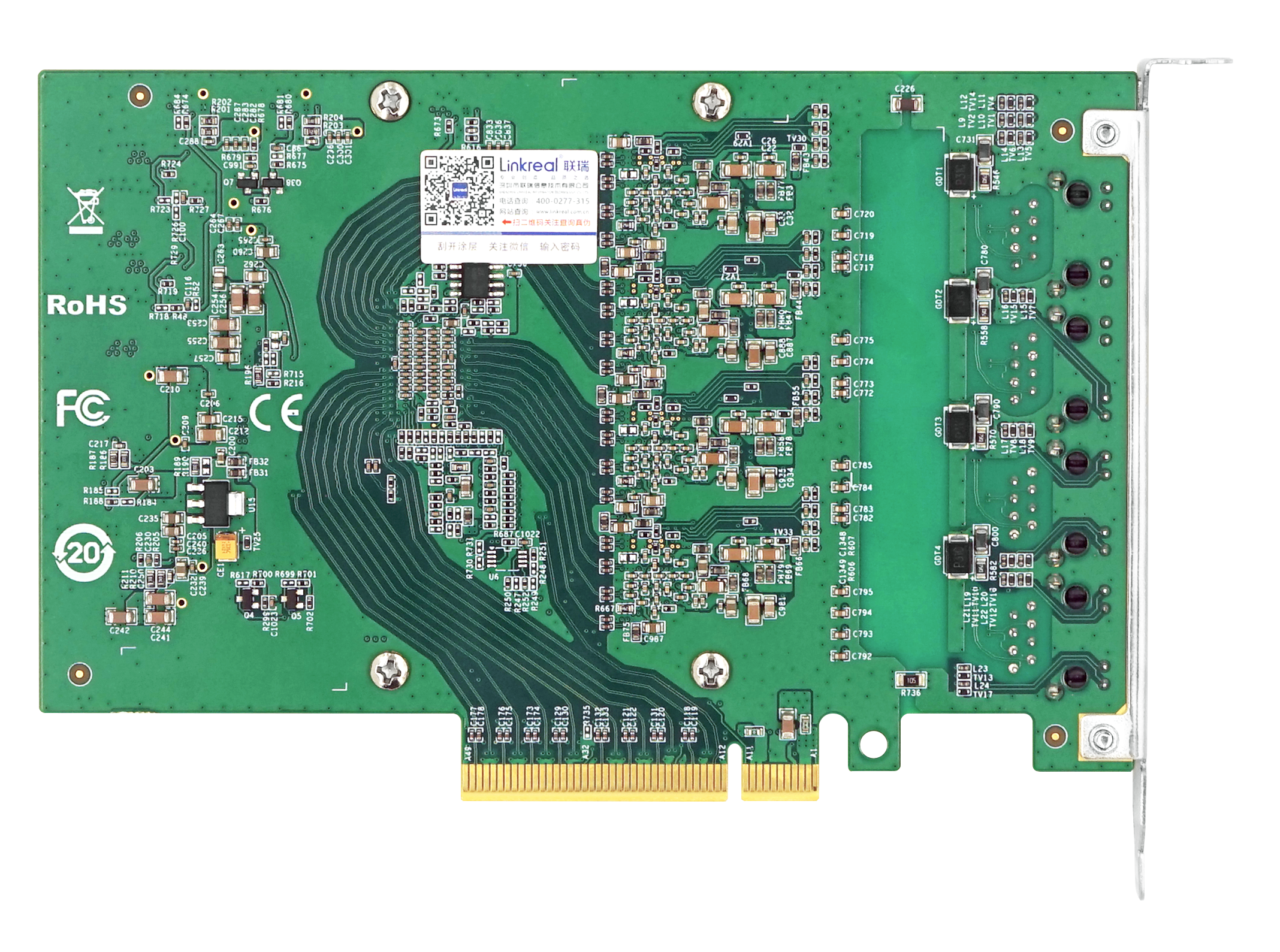

PCIe3.0 x8 Quad-port 10G Vision Frame Grabber Card (Aquantia AQtion AQC113 Based)
Supports 6 network rates, including 10M/100M/1G/2.5G/5G/10Gbps;
Supports PXE and UEFI functions;
Support for packets up to 16 KB (Jumbo Frames)
Overview
LRES1053PT is a PCIe3.0 x8 quad-port 10G Ethernet network adapter developed by Linkreal Co., Ltd. based on Aquantia AQtion AQC113 host controller solution, which is also compatible with PCIe x16 slots, and is a high-performance 4-port adapter. It is a high performance 4-port adapter. It is mainly used in industrial field vision inspection equipment, vision field clients, and fast mobile Ethernet data transmission equipment. The adapter has outstanding performance in data transmission, network bandwidth, average transmission delay, and actual packet transmission rate. It can connect four 10GigE industrial cameras at the same time and work stably, which meets the use of regular industrial control machine installation.
Specifications
Model | LRES1053PT | |
Controller | Aquantia AQtion AQC113 | |
Cable medium | Copper | |
Fiber Type | 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T100BASE-TX/10BASE-Te. | |
Bracket Height | Full Height | |
Min Power(w) | 1.2 | |
Max Power(w) | 19.38 | |
Connector | 4*RJ45 | |
Bus Type | PCIe v3.0 (8GT/s) x8 | |
Data rate per port | 10M/100M/1G/2.5G/5G/10Gbps | |
Power Supply | PCIe | |
Protocol Support | IEEE 802.3ae 10 Gigabit Ethernet over fiber IEEE 802.1Q VLAN IEEE 802.3AD IEEE IEEE 802.1AS IEEE P802.1Qaz IEEE Std 802.1Qau IEEE P802.1Qbb | |
PXE | Yes | |
WoL | No | |
UEFI | Yes | |
SR-IOV | No | |
1588 PTP | Yes | |
Jumbo Frames | 16KB | |
System Support | * Windows 10(21h2 and newer) * Windows 11 * Windows Server 2022 * RHEL/Centos7.3/7.6/7.9/8.2/8.3 * Deepin 15.11/20/20.6 * Ubuntu 16.04.3/18.04.5 * Ubuntu 20.04.1 * NewStartOS 3.2.2 * openKylin 0.7.5 | * KylinOS V10 SP1 * NeoKylin7.6 * Zhongke Fangde Desktop Operating System 4.0 * Zhongke Fangde Server Operating System * UOS 20 * YMOS |
Model | LRES1053PT | |
Controller | Aquantia AQtion AQC113 | |
Cable medium | Copper | |
Fiber Type | 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T100BASE-TX/10BASE-Te. | |
Bracket Height | Full Height | |
Min Power(w) | 1.2 | |
Max Power(w) | 19.38 | |
Connector | 4*RJ45 | |
Bus Type | PCIe v3.0 (8GT/s) x8 | |
Data rate per port | 10M/100M/1G/2.5G/5G/10Gbps | |
Power Supply | PCIe | |
Protocol Support | IEEE 802.3ae 10 Gigabit Ethernet over fiber IEEE 802.1Q VLAN IEEE 802.3AD IEEE IEEE 802.1AS IEEE P802.1Qaz IEEE Std 802.1Qau IEEE P802.1Qbb | |
PXE | Yes | |
WoL | No | |
UEFI | Yes | |
SR-IOV | No | |
1588 PTP | Yes | |
Jumbo Frames | 16KB | |
System Support | * Windows 10(21h2 and newer) * Windows 11 * Windows Server 2022 * RHEL/Centos7.3/7.6/7.9/8.2/8.3 * Deepin 15.11/20/20.6 * Ubuntu 16.04.3/18.04.5 * Ubuntu 20.04.1 * NewStartOS 3.2.2 * openKylin 0.7.5 | * KylinOS V10 SP1 * NeoKylin7.6 * Zhongke Fangde Desktop Operating System 4.0 * Zhongke Fangde Server Operating System * UOS 20 * YMOS |
Operating Temperature | 0℃ to 50℃ (32 ℉ to 122 ℉) |
Storage Temperature | -40 ℃ to 85 ℃ (-40℉ to 185 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC，CE，RoHS |
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| (x64_21H2_22H2_or_newer) Marvell AQtion_Win10-11_3.1.8 | Windows | 3.1.8 | 2024-08-13 |
 |
| marvell_linux_2.5.6 | Linux | 2.5.6 | 2024-08-13 |
|
Related products

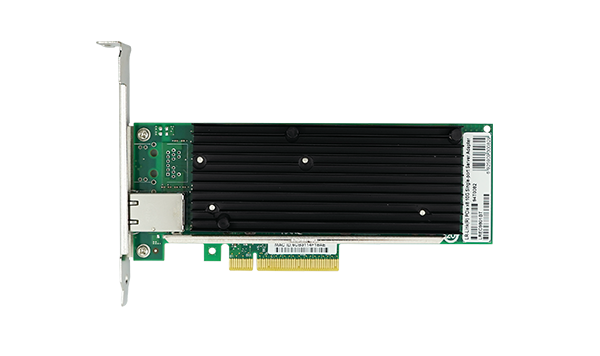

LREC9801BT
Ports
Single-port
Connector
RJ45
Rate
10Gbps
PCle
x8
Chip
Intel X540

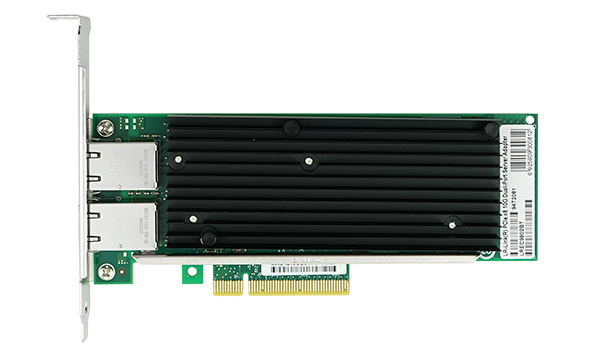

LREC9802BT
Ports
Dual-port
Connector
RJ45
Rate
10Gbps
PCle
x8
Chip
Intel X540
LREC9811BT
Ports
Single-port
Connector
RJ45
Rate
10Gbps
PCle
x4
Chip
Intel X550

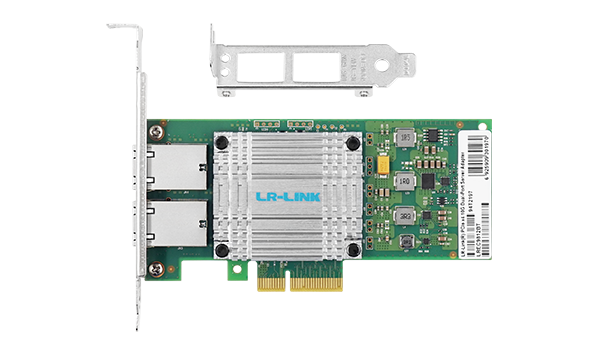

LREC9812BT
