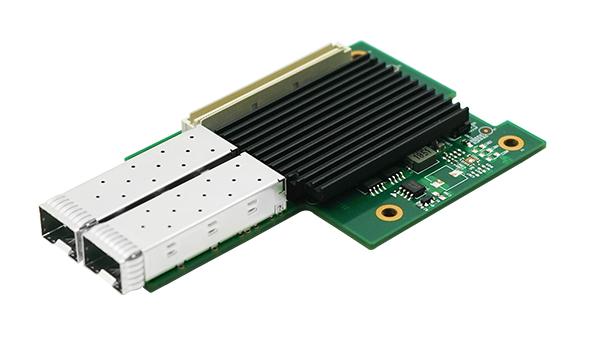

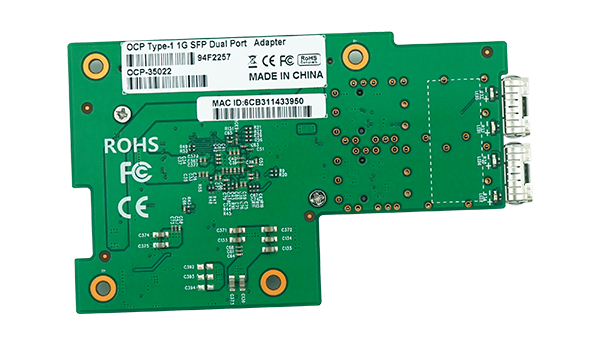

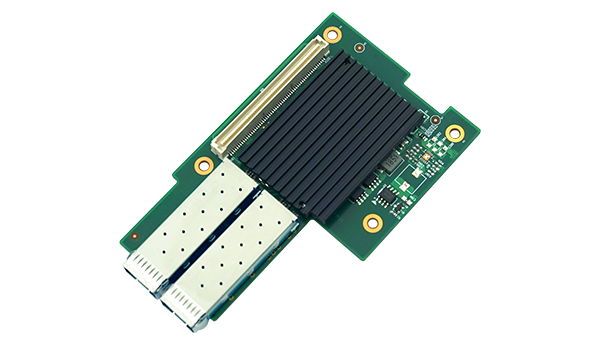

LRES3010PF-OCP

OCP Type-1 Dual-port 1G SFP Mezzanine Ethernet Network Adapter (Intel I350)

Low cost, low power,energy-efficient Ethernet and DMA merging.

Dual-port 1000MBASE-X controller with integrated MAC and PHY

Eight transmit queues and four receive queues per port.

1000Mbps Fiber Ethernet networks transition.

OCP Type-1 PCI Express interface

LRES3010PF-OCP

PDF 709.9KB

Download

More Support

Overview

LRES3010PF-OCP is an OCP Type-1 dual-port mezzanine Gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 main control program. It is suitable for all-weather non-stop operation on multi-node server, firewall, gatekeeper, data monitoring and other data transmission.

The adapter uses the Intel I350 main control chip, which has a wide range of system compatibility and stability. Each network port has an independent Gigabit channel network port and works independently of each other.

Support the safe transmission of Gigabit optical fiber at the application site. In the Gigabit Ethernet connection, four gigabit fiber ports can be allowed to work in full-duplex mode at the same time, and four network ports can be aggregated to increase network traffic bandwidth or any network port can be used for aggregation. Can save PCI Express channel resources in a compact space.

Specifications

Controller	Intel I350
Baffle Height	*
Power Consumption	3.2W
System Support	Windows XP/Vista7/8/8.1/10
	Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;
	Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later;
	Linux CentOS/RHEL 6.x / 7.x or later;
	Ubuntu 14.x/15.x/16.x or later;
	VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type	OCP Type-1
Data rate supported per port	1000MbE
2*SFP

OCP 2.0 | Intel I350 | 1G | SFP | Dual-port
