OCP 3.0 | Intel I350 | 1G | RJ45 | Dual-port

LRES3041PT-OCP

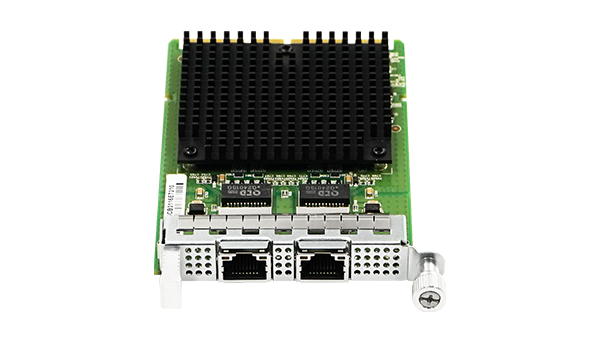

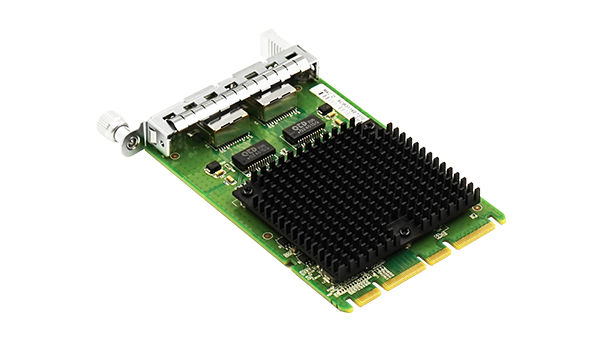

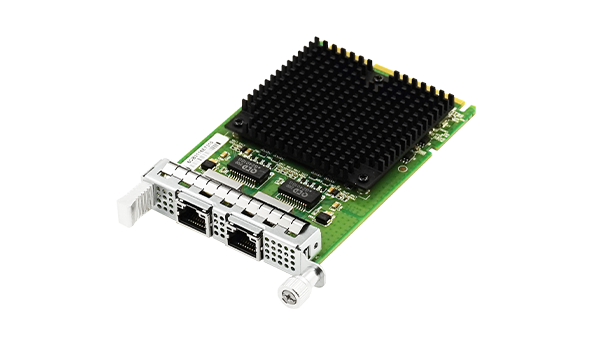

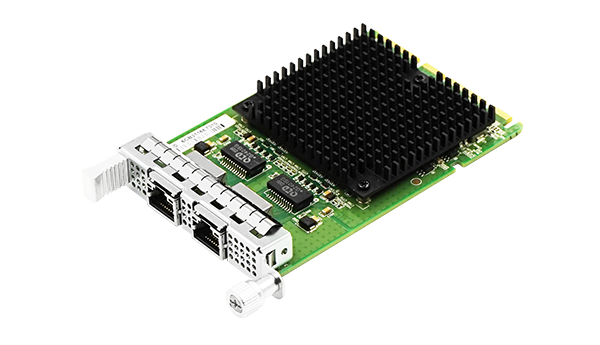

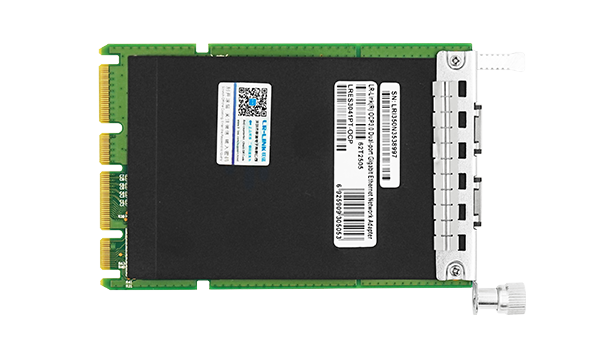

OCP3.0 Dual-port Gigabit Copper Ethernet Network Adapter (Intel I350)

An Intel solution OCP3.0 SFF structure of the dual-port optical fiber Gigabit Ethernet network adapter

With a rate of 1G

It can enhance DPDK to be more efficient and flexible in packet forwarding and packet processing.

LRES3041PT-OCP

PDF 485.99KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES3041PT-OCP is an OCP3.0 SFF dual-port copper Gigabit Ethernet network adapter independently developed by Linkreal Co., Ltd. based on the Intel I350 master control solution. This adapter is mainly designed for use in servers and their application equipment.

LRES3041PT-OCP can simultaneously bundle and aggregate multiple ports into a group to achieve fault tolerance and redundancy, to expand network bandwidth and ensure network performance, and can automatically detect and implement real-time fault recovery. The communication of the port is routed to other members in the same group to continue operation to achieve uninterrupted high-performance communication.

LRES3041PT-OCP adopts the SFF standard structure of OCP3.0, which is developed on the Ethernet MAC+PHY (media access controller and physical interface transceiver) controller based on Intel Gigabit rate, and supports NCSI function and Scan Chain Function, also has ESD anti-static protection ability and surge protection ability.

OCP3.0 Quad-port Gigabit Ethernet Network Adapter: LRES3023PT-OCP

Specifications

Controller	Intel I350
Cable medium	Copper
Fiber Type	Cat5	50M(1Gbps);100M(1Gbps);150M(1Gbps)
	Cat6	50M(1Gbps);100M(1Gbps);150M(1Gbps)
	Cat6e	50M(1Gbps);100M(100Mbps);150M(100Mbps)
	Cat7	100M(100Mbps)
Bracket Height	SFF
Power (min)	2.484 W
Power (max)	3.024 W
System Support	Windows 7 /8 /8.1 / 10 /11
	Windows Server 2008 /2012 /2016 /2019 /2022
	RHEL/Centos7.3 /7.6 /7.9 /8.2 /8.3
	Deepin 15.11 /20 /20.6
	Ubuntu 16.04.3 /18.04.5 /20.04.1
	SUSE 12.5
	FreeBSD 12.2
	ZTE New Fulcrum 3.2.2 /5.0.5
	Asianux Server v7.0
	Galaxy Unicorn v10 SP1
	NeoKylin 7.6
	Zhongke Fangde desktop operating system 4.0
	Zhongke Fangde server operating system
	Tongxin UOS 20
	Emind OS
	OpenKylin0.7.5
	VMware ESXi 6.5 /6.7 /7.0
	Mikrotik
	iKuai router
Bus Type	OCP3.0 SFF
Data rate per port	1Gbps
Connector	2*1G RJ45
Power Supply	OCP

Protocol Support	IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588
PXE/UEFI	Yes
DPDK	Yes
WoL	Yes
iSCSI	No
Jumbo Frames	Yes
FCoE	No
VMDq、SR-IOV	Yes
IPsec	Yes
ESD_Air discharge	±15KV (Class C)
Jumbo DataFrame Max	9.2KB
NCSI功能	Yes
Scan Chain	Yes
ESD_Contact discharge	±8KV(Class A)
ESD_Air discharge	±15KV(Class C)
Lightning surge test	±2KV common mode

Operating Temperature	0 ℃ to 55 ℃ (32 ℉ to131 ℉)
Storage Temperature	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
