OCP 3.0 | Net-swift 1860 | 1G | RJ45 | Quad-port

LRES3019PT-OCP

OCP3.0 Quad-port Gigabit Ethernet Network Adapter (Net-swift 1860)

Net-swift WX1860 main controller;

A Quad-port copper gigabit ethernet network adapter.

It is widely used in network communication and used on servers, embedded and so on.

It is of great significance for breaking the monopoly of certain enterprises and ensuring information security.

LRES3019PT-OCP

PDF 535.41KB

Download

More Support

Overview Specifications Driver Related products

Overview

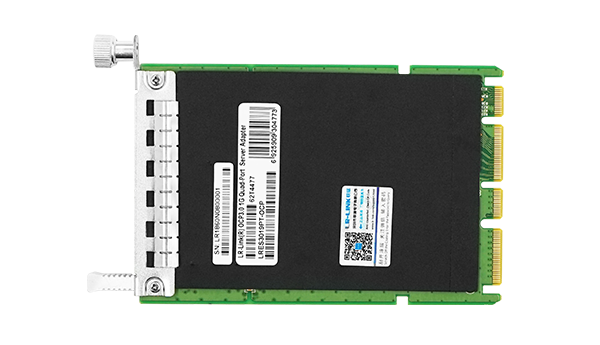

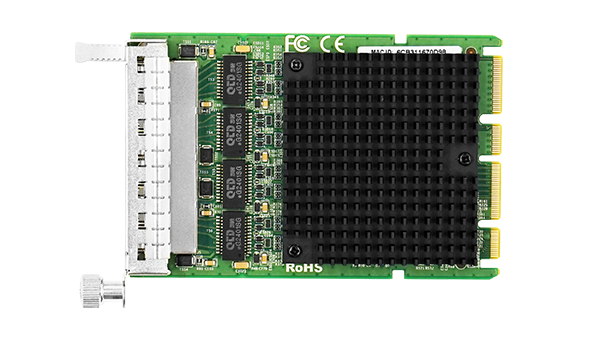

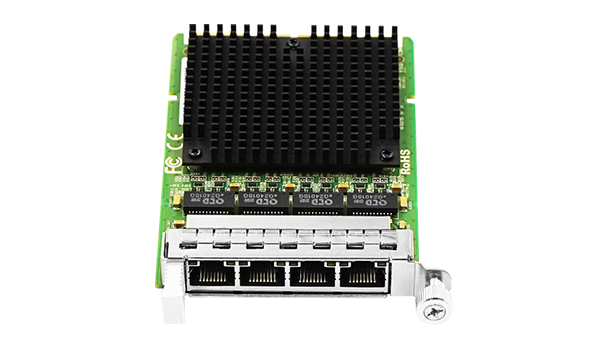

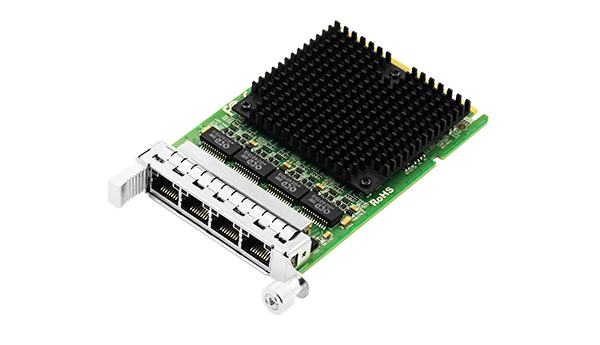

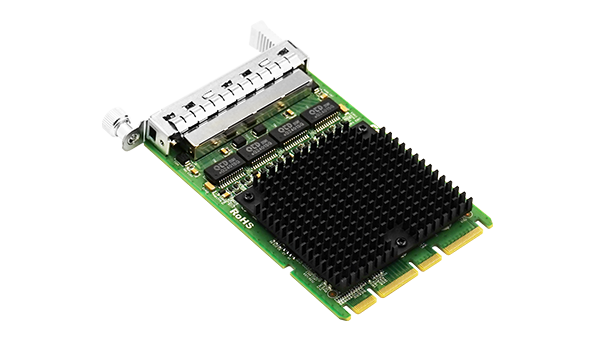

LRES3019PT-OCP is a OCP3.0 SFF Quad-port copper gigabit ethernet network adapter developed by Linkreal Co., Ltd. based on Net-swift. The adapter card achieves a four-port bidirectional communication transfer rate with a theoretical throughput of 8G on a PCI Express v2.1 x4 bus.

The ethernet network card (LRES3019PT-OCP) with Net-swift 's independent intellectual property rights launched by Shenzhen Lianrui Electronics Co., Ltd. has a fully integrated gigabit ethernet media access control (MAC) module. It is widely used in network communication, and can also be used on servers, embedded and so on.

The main controller used by Net-swift's independent intellectual property rights and independent controllability, which is of great significance for breaking the monopoly of certain enterprises and ensuring information security.

The controller used by LRES3019PT-OCP is autonomous and controllable. The indicators including data transmission, data network bandwidth, average transmission delay, and actual small packet transmission rate have reached the industry level.

Specifications

Controller	Net-swift WX1860
Cable medium	Copper
Fiber Type	CAT-6	50M(1Gbps);100M(100Mbps);
	CAT-6e	50M (1Gbps);100M(100Mbps);
	CAT-7	100M(1Gbps)
Bracket Height	SFF
Power（min）	1.512W
Power（max）	2.42W
System Support	Windows 7 /8 /8.1 /10 /11
	Windows Server 2012 /2016 /2019 /2022
	RHEL/CentOS 7.6 /7.9 /8.2 /8.3
	Deepin 20/ 20.6
	Ubuntu 16.04.3 /18.04.5 /20.04.1
	ZTE New Fulcrum 3.2.2 /5.0.5
	Asianux Server V7.0
	Galaxy Unicorn V10 /V10 SP1
	NeoKylin 7.6
	Zhongke Fangde desktop operating system 4.0
	Zhongke Fangde server operating system
	Tongxin UOS 20
	Emind OS
	VMware ESXi 6.5 /6.7
	Mikrotik
	iKuai router
Bus Type	OCP3.0 SFF
Data rate per port	100/1000Mbps、1Gbps
Connector	4*1G RJ45
Power Supply	OCP3.0

Protocol Support	IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.1Q VLAN IEEE 802.1AS IEEE 802.1Qau IEEE 802.1p IEEE 802.1Qbg Virtual Bridging IEEE 802.1Qbb Priority Flow Control
PXE	Yes
DPDK	Yes
WoL	Yes
iSCSI	No
Jumbo Frames	Yes
IEEE 1588	Yes
FCoE	No
SR-IOV	Yes
UEFI	No
Jumbo data frame MAX	9.5KB
ESD_Contact discharge	±8KV (Class B)
ESD_Air discharge	±15KV (Class C)

Operating Temperature	0℃ to 70℃ (-32 ℉ to 158 ℉)
Storage Temperature	-40℃ to 70℃ (-40℉ to 158℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS

Driver

File name	For OS	Version	Upload time	Downlaod
Win Driver_tn_setup.exe	Windows	1.2.0606.2023	2024-05-05
ngbe-1.2.6.zip	Linux	1.2.6	2024-05-05
