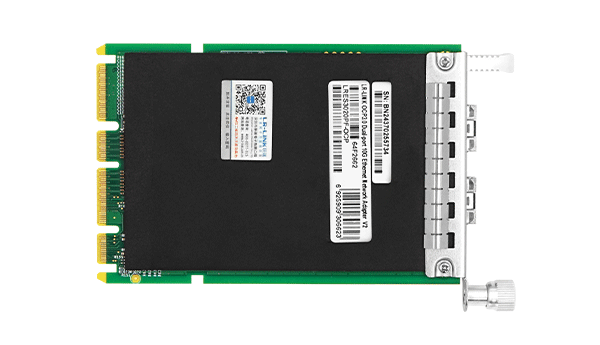

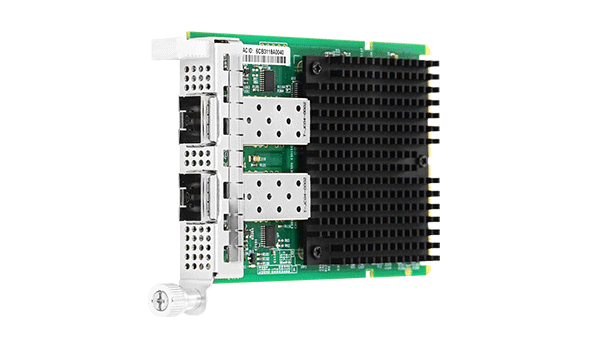

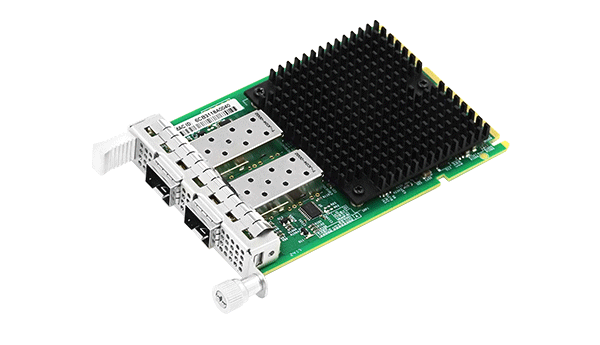

OCP3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Net-swift 1820)

LRES3020PF-OCP is a dual optical port 10G ethernet adapter with OCP3.0 SFF structure developed by Linkreal Co., Ltd. based on the Net-swift WX1820 master control solution.The dual-port of the network adapter can simultaneously support the self-adaptation of 1/10G link rate. It can be used flexibly in network environments with different speed requirements, and can provide reliable performance in flexible LAN and SAN networks.

The adapter card has domestic independent intellectual property rights of the Ethernet optical network card (LRES3020PF-OCP), with local area network performance acceleration, network security, network integration, network virtualization, data center bridging and other functions, the transmission bandwidth of a single port is 10Gbps , the number of logic gates of the main controller reaches 18 million, and the on-chip SRAM capacity reaches 25Mbit. Primarily designed for servers and high-end equipment.

The adapter card is based on the WX1820 10G Ethernet MAC+PHY (media access controller and physical interface transceiver) dual-port controller, which meets the needs of customers for using the network with multiple operating systems.

LRES3020PF-OCP This server adapter card is used to meet the needs of new and old server markets for network traffic and data distribution, processing, virtualization and big data computing in the current and long-term future.
