LRES3039PF-OCP
OCP 3.0 | Intel X710 | 10G | SFP+ | Dual-port

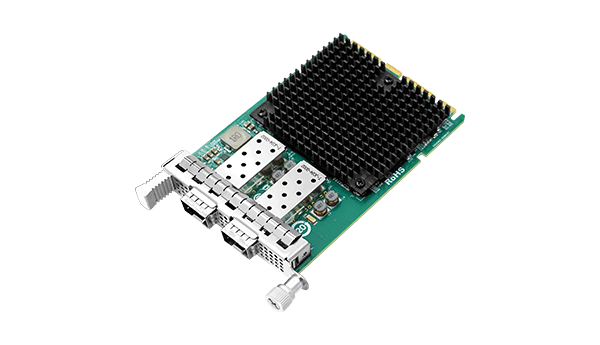

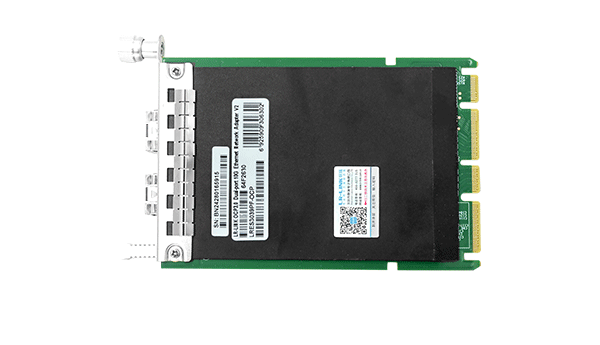

LRES3039PF-OCP
OCP3.0 Dual-port 10G Ethernet Network Adapter V2 (Intel X710-BM2 Based)
Support NCSI sideband management;
Support FRU read and write;
Equipped with 2 10G SFP+interfaces, supporting 1G/10Gbps data transfer rate;
Support device hot swapping (requires motherboard support);
Support SMBus temperature monitoring;
Overview
LRES3039PF-OCP is an OCP3.0 Dual-port 10G Ethernet Network Adapter independently developed by Linkreal Co., Ltd. based on the Intel X710 control solution. This product is based on the Intel X710 control scheme, adopts the OCP 3.0 SFF standard, and has a dual port 10G fiber optic Ethernet interface. It is designed specifically for next-generation data centers and can provide up to 10G data transfer rates to meet the growing demand for server and network virtualization. Whether in flexible LAN or SAN networks, LRES3039PF-OCP can provide stable and reliable performance. This adapter is mainly used for servers and high-end devices, not only to meet current and future long-term server needs, but also to adapt to the current network environment. In addition, LRES3039PF-OCP also has NCSI and Scan Chain functions, bringing more convenience to users. Meanwhile, its excellent ESD anti-static protection capability also ensures the stable operation of the equipment in complex network environments.
OCP 3.0 Dual-Port 10G Copper Ethernet Network Adapter: LRES3021PT-OCP
Specifications
Model | LRES3039PF-OCP | |
Controller | Intel X710-BM2 | |
Cable medium | optical fiber | |
Fiber Type | 10GBASE-SR、10GBASE-LR、10GBASE-Cu 1GBASE-SR、1GBASE-LR、1GBASE-Cu | |
Bracket Height | SFF | |
Firmware version | 9.50 | |
Min Power(w) | 2.52W | |
Max Power(w) | 5.544W | |
Connector | 2*10G SFP+ | |
Bus Type | PCIe3.0 (8.0GT/s) x8 | |
ESD(Contact discharge) | ±6KV | |
Data rate per port | 1G/10Gbps | |
Power Supply | OCP | |
Protocol Support | IEEE 802.1Qbg, 802.1az, 802.1Qbb | |
PXE/UEFI | Yes | |
NCSI | Yes | |
WoL | Yes | |
SR-IOV | Yes | |
1588 PTP | Yes | |
ScanChain | Yes | |
FRU read and write | Yes | |
SMBus Monitoring Temperature | Yes | |
Jumbo Frames | 9.7KB | |
System Support | * Windows 8.1/10/11 * Windows Server 2008/2012 * Windows Server 2016/2019 * Windows Server 2022 * RHEL/Centos7.6/7.9/8.2/8.3/9.0 * Deepin 15.11/20/20.6 * Ubuntu 16.04.3/18.04.5 * Ubuntu 20.04.1/22.04/24.04 * SUSE 12.5/15 SP4 * FreeBSD 12.2/13.2 * NewStartOS V6.6.6/V4.5.2 * Galaxy Unicorn v10 * NeoKylin 7.6 * Openkylin 2.0 | * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * UOS 20 * YMOS * iKuai router * Rocky 9.4 * openEuler 24.03 * Debian-12.5.0 * FusionOS-22.0.6/-23.0.6 * Openkylin 2.0 * VMware ESXi 6.7/7.0 |
1Gbps | Connection Status | (LINK)Orange Link+(ACT) Green Link |
Transfer status | (LINK)Orange Link+(ACT) Green Blink | |
10Gbps | Connection Status | (LINK)Green Link+(ACT Green Link |
Transfer status | (LINK)Green Link+(ACT) Green Blink |
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| ixl-1.14.2.tar.gz | FreeBSD | 1.14.2 | 2024-08-14 |
 |
| i40e-2.25.11.tar.gz | Linux | 2.25.11 | 2024-08-14 |
|
| Release_28.2.zip | OS Independent | v28.2 | 2024-07-19 |
|
