LRES3024PF-OCP

OCP 3.0 | Net-swift SP1000A | 10G | SFP+ | Dual-port

LRES3024PF-OCP

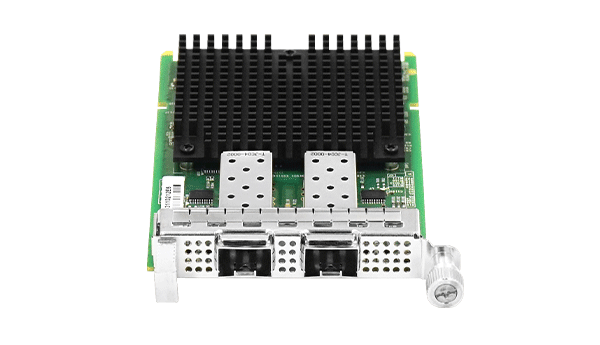

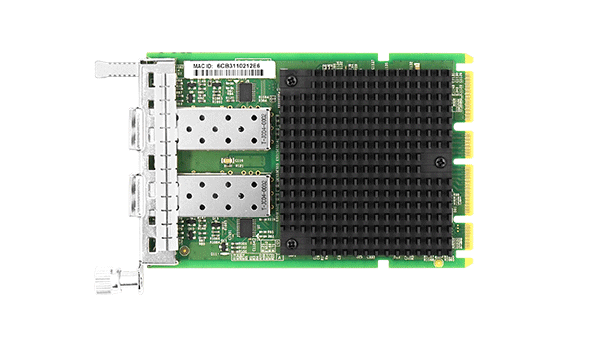

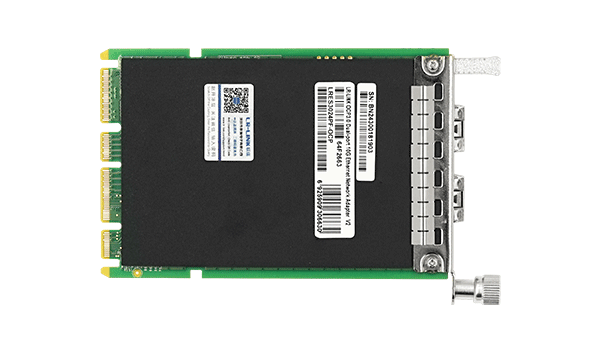

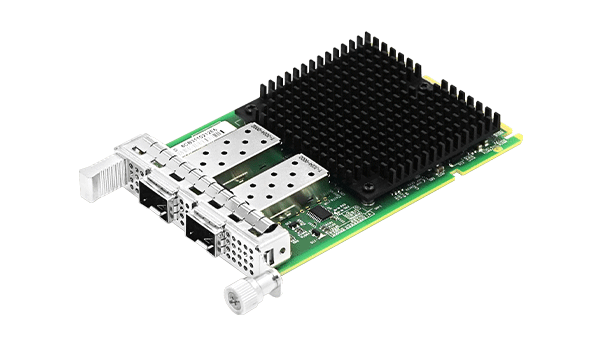

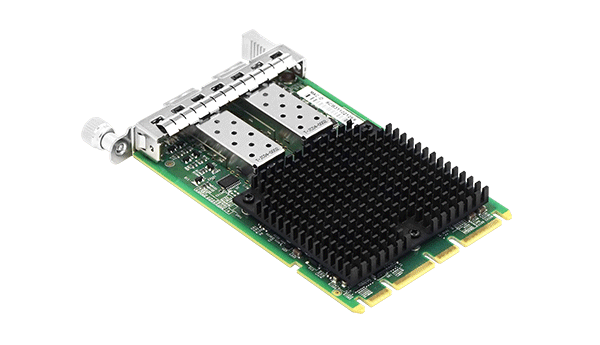

OCP3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Net-swift SP1000A)

An Intel solution OCP3.0 SFF structure of the dual-port optical fiber 10G ethernet network adapter
With a rate of 1G/10G
It can enhance DPDK to be more efficient and flexible in packet forwarding and packet processing.
Overview

LRES3024PF-OCP is a dual optical port 10G ethernet adapter with OCP3.0 SFF structure developed by Linkreal Co., Ltd. based on the Net-swift SP1000 master control solution.The dual-port of the network adapter can simultaneously support the self-adaptation of 1/10G link rate. It can be used flexibly in network environments with different speed requirements, and can provide reliable performance in flexible LAN and SAN networks.


The adapter card has domestic independent intellectual property rights of the Ethernet optical network card (LRES3024PF-OCP), with local area network performance acceleration, network security, network integration, network virtualization, data center bridging and other functions, the transmission bandwidth of a single port is 10Gbps , the number of logic gates of the main controller reaches 18 million, and the on-chip SRAM capacity reaches 25Mbit. Primarily designed for servers and high-end equipment.


The adapter card is based on the SP1000 10G Ethernet MAC+PHY (media access controller and physical interface transceiver) dual-port controller, which meets the needs of customers for using the network with multiple operating systems.


LRES3024PF-OCP This server adapter card is used to meet the needs of new and old server markets for network traffic and data distribution, processing, virtualization and big data computing in the current and long-term future.


OCP 3.0 Dual-Port 10G Copper Ethernet Network Adapter: LRES3021PT-OCP

Specifications


Controller

Net-swift SP1000

Cable medium

Optical Fiber

Fiber Type

10GBase-SR、10GBase-LR、10GBase-ER、10GBase-ZR、10GBase-LRM、10GBase-Cu

1GBase-SR、1GBase-LR

Bracket Height

SFF

Power (min)

5.712W

Power (max)

6.144W

System Support

Windows 7 /8 /8.1 /10 /11

Windows Server 2012 /2016

Windows Server 2019 /2022

RHEL/CentOS 7.3 /7.6 /7.9 /8.2 /8.3

Deepin 20 /20.6

Ubuntu 16.04.3 /18.04.5

SUSE 12.5

ZTE New Fulcrum 3.2.2 /5.0.5

Asianux Server v7.0

Galaxy Unicorn v10 SP1

NeoKylin 7.6

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Tongxin UOS 20

Emind OS

VMware ESXi 6.7

iKuai router

Bus Type

OCP3.0 SFF

Data rate per port

1/10Gbps

Connector

2*10G SFP+

Power Supply

OCP


Protocol Support

IEEE 802.3ae 10GBase-X

IEEE 802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.3x Full Duplex and flow control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3ap       IEEE 802.3as      IEEE 802.3bc

IEEE 802.3bd       IEEE 802.1p       IEEE 802.1Q VLAN

IEEE 802.1Qau      IEEE 802.1Qaz     IEEE 802.1Qbb

IEEE 802.1Qbg      IEEE 802.1Qbh     IEEE 802.1X

IEEE 802.1AE       IEEE 802.1AEbn    IEEE 802.1AS

IEEE 802.1AX       IEEE 802.3aq      IEEE 802.3an

PXE

Yes

RDMA

No

DPDK

Yes

WoL

No

iSCSI

No

Jumbo Frame

Yes

SR-IOV

Yes

Jumbo DataFrame Max

9.5KB

ESD_Contact discharge

±8KV (Class B)

ESD_Air discharge

±15KV (Class C)


Operating Temperature

0℃ to 70℃ (-40℉ to 158℉)

Storage Temperature

-65 ℃ to 140 ℃ (-85℉ to 284℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS




Driver
File name For OS Version Upload time Downlaod
txgbe-1.3.6 Linux 1.3.6 2024-08-12
txgbe_win_ndis6.3 Windows 6.3 2024-08-12
