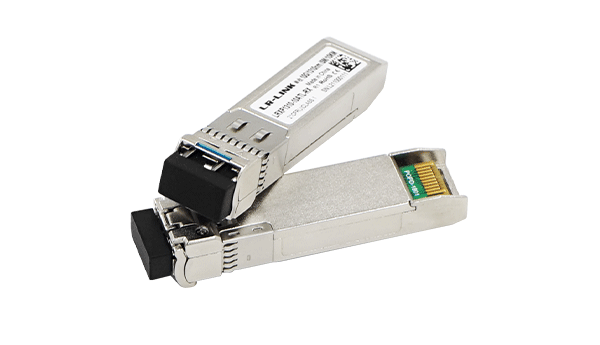

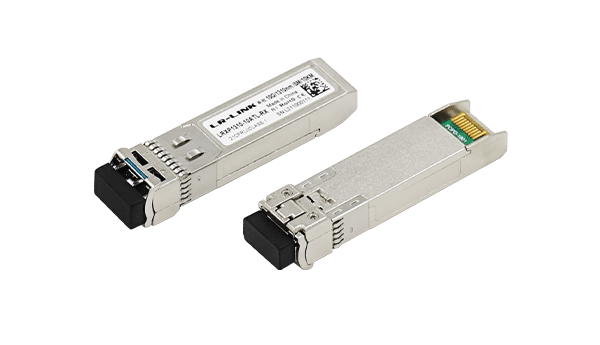

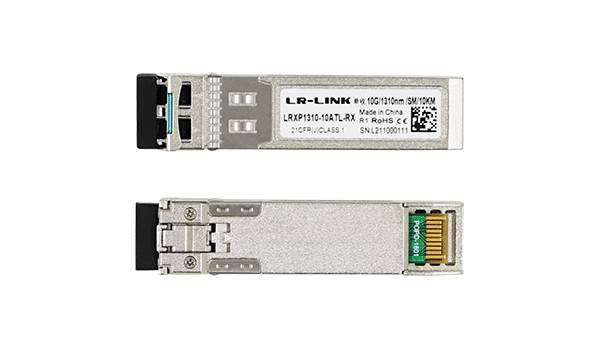

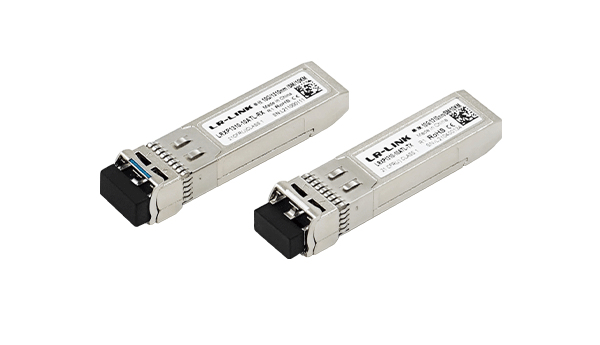

SFP+ | 10G | 1330nm | LC | 10km

LRXP1310-10ATL-TX

10GBASE SFP+ 1330nm-TX 10km DDM Simplex LC SMF Transceiver Module

Single power supply +3.3V;

Hot-pluggable design;

Up to 10Gb/s receiving data transmission capability;

1330nm DFB laser transmitter;

laser safety standard IEC-60825 compliant;

RoHS compliant;

Up to 10km transmission on SMF;

Working temperature range: 0°C~70°C.

LRXP1310-10ATL-TX

PDF 236.46KB

Download

More Support

Overview Specifications Related products

Overview

LR-LINK LRXP1310-10ATL-TX has 10Gb/s transmission data transmission capability and is suitable for 10Gb/s Ethernet. It complies with SFF8472.

LRXP1310-10ATL-TX has a transmission distance of up to 10 km on SMF, complies with the laser safety standard IEC-60825, consumes less than 1W, and has the advantages of low power consumption, low EMI and excellent ESD protection.

Specifications

Absolute Maximum Ratings
Parameter	Symbol	Min.	Typical	Max.	Unit
Data rate	DR	-	10.3125	-	Gb/s
Operating temperature	TC	0	-	70	◦C
Storage temperature	TSTO	−40	-	85	◦C
Operating voltage	VCC	-	3.6	-	V

Transmitter
Parameter	Symbol	Min.	Typical	Max.	Unit
Transmitted optical power	P	−6	-	+0.5	dBm
Optical center wavelength	λC	1290	1310	1330	nm
Extinction Ratio	ER	3.5	-	-	dB
Side-Mode Suppression Ratio	SMSR	35	-	-	dB
Dispersion Penalty	-	-	-	3.2	dB
Transmitted optical power	P	−6	-	+0.5	dBm

Transmitter
Parameter		Symbol	Min.	Typical	Max.	Unit
Differential input impedance		RIN	90	100	110	Ω
Differential input swing		VIN PP	180	-	700	mV
TX Disable	Disable	-	2.0	-	Vcc	V
TX Disable	Enable	-	0	-	0.8	V
TX Fault	Assert	-	2.0	-	Vcc	V
TX Fault	Deassert	-	0	-	0.8	V
