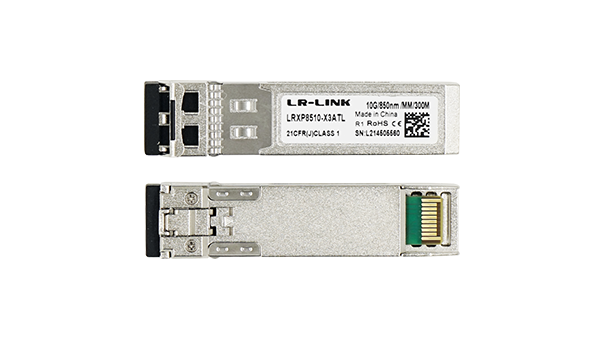

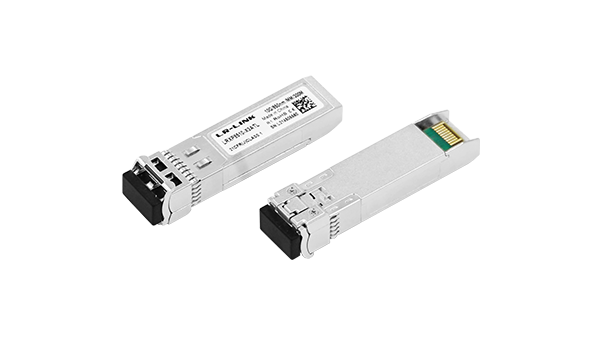

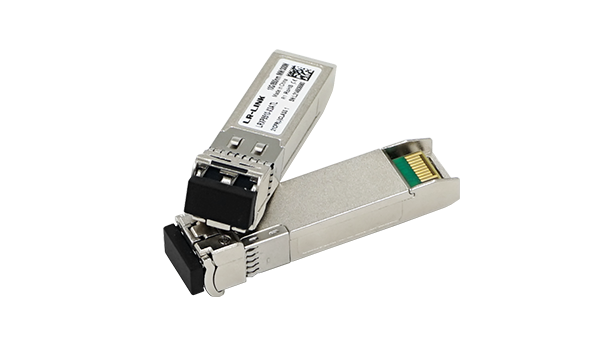

SFP+ | 10G | 850nm | Multi-mode | 300M

LRXP8510-X3ATL

10G Multimode 850nm Module, 300M

Single power supply + 3.3V power supply and dual LC interfaces;

Hot-swappable design;

Up to 10Gb/s transceiver data transfer capability;

850nm VCSEL laser transmitter;

Compliant with IEC-60825 laser safety standard;

RoHS compliant;

Maximum transmission distance of 300m over OM3 multimode fiber;

Operating temperature range: 0℃~70℃.

LRXP8510-X3ATL

PDF 330.98KB

Download

More Support

Overview Specifications Related products

Overview

LR-LINK LRXP8510-X3ATL 10G SFP+ Multimode Ethernet Fiber Optic Module has 10Gb/s transceiver data transmission capability for 10Gb/s Ethernet, which is compliant with the IEEE 802.3ae standard and SFF-8431 standard.

LRXP8510-X3ATL has a transmission distance of up to 300M over SMF. The product realizes digital diagnostic function through 2-wire serial bus, complies with the standard of SFF-8472, and consumes less than 1W of power, which has the advantages of low power consumption, low EMI and excellent ESD protection.

Application

10Gb/s 10G Ethernet

10Gb/s Fibre Channel

10G CPRI

Specifications

Absolute Maximum Ratings
Parameter	Symbol	Min.	Typical	Max.	Unit
Data rate	DR	9.83	10.3125	11.3	Gb/s
bit error rate (BER)	BER			10-12
Operating temperature	TC	0		70	◦C
Storage temperature	TSTO	-40		85	◦C
Operating Current	ICC		180	290	mA
Operating voltage	VCC	3.14	3.3	3.46	V

Transmitter
Parameter	Symbol	Min.	Typical	Max.	Unit
Transmitted optical power	P	-7		-1	dBm
Optical center wavelength	λC	840		860	nm
Extinction Ratio	ER	3	5.5		dB
Optical Modulation Amplitude	OMA		−1.5		dBm
Spectral Width (RMS)	Δλ			0.45	nm
Receivers
Parameter	Symbol	Min.	Typical	Max.	Unit
Receiver Overload	POL	0.5			dBm
Receiver reflectivity	TRRX			−12	dB
Optical center wavelength	λC	840		860	nm
LOS High Level Warning	LOSA	-30			dBm
LOS Low Level Warning	LOSD			-14	dBm
Dispersion Penalty	LOSH	0.5			dB
