SFP | 1G | 850 nm or 1300nm | Multi-mode | 2KM

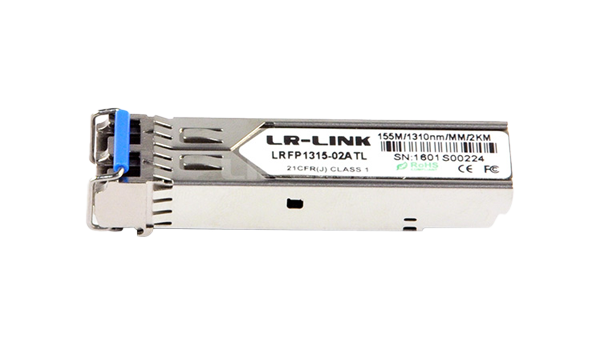

LRFP1315-02ATLD

SFP Duplex 155Mbps 3.3V Multi-Mode Transceiver 2KM

Features

Single + 3.3V power supply

Differential Inputs and Outputs

Small Form Factor Pluggable MSA Compliant.

Compliant with SFF-8472 MSA Digital Diagnostic

Monitor (DDM), Internal Calibration. (SJ Series)

Class 1 Laser International Safety Standard IEC

825 Compliant. Complies with EN60825-1 and FDA

21 CFR 1040.10 and 1040.11

Commercial Operation Temp.: 0 oC to +70 oC

Industrial Operation Temp.: -40 oC to +85 oC

RoHS Compliant

LRFP1315-02ATLD

PDF 0B

Download

More Support

Overview

The transceiver from LR-LINK is small form factor pluggable module with standard duplex connector for fiber communications. This module is designed for multi-mode-fiber (MMF) and operates at a nominal wavelength of 850 nm or 1300nm with cost effective and high performance. It is with the SFP 20-pin connector to allow hot plug capability.
