SFP+ | 10G | 1330nm | 10km

LRXP1310-10ATL-RX

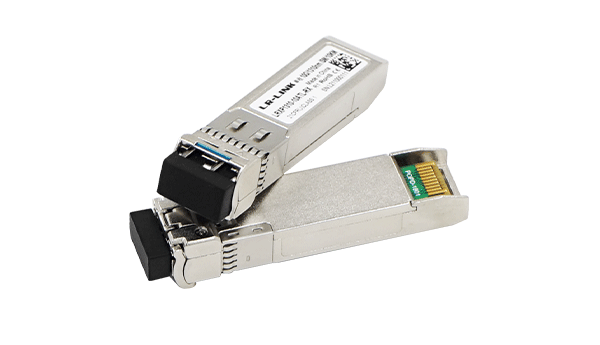

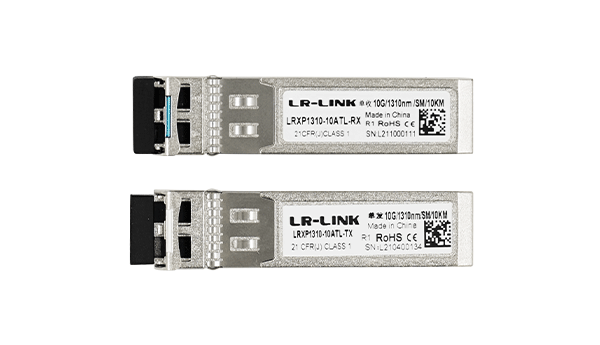

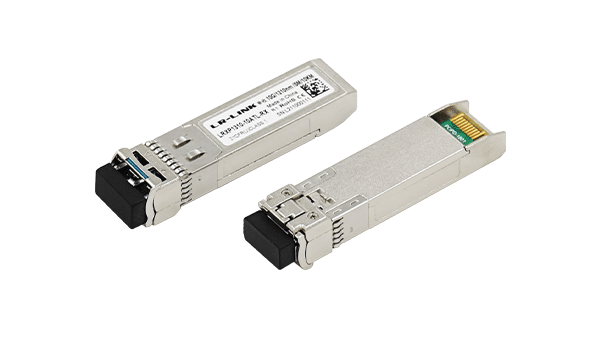

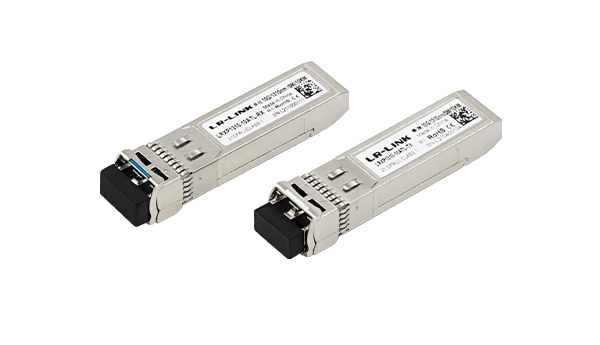

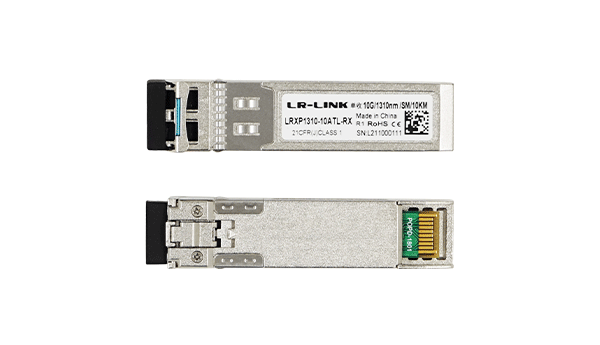

10GBASE SFP+ 1330nm-RX 10km DDM Simplex LC SMF Transceiver Module

Single power supply +3.3V;

Hot-pluggable design;

Up to 10Gb/s receiving data transmission capability;

1310nm DFB laser receiver;

laser safety standard IEC-60825 compliant;

RoHS compliant;

Up to 10km transmission on SMF;

Working temperature range: 0°C~70°C.

LRXP1310-10ATL-RX

PDF 230.25KB

Download

More Support

Overview Specifications Related products

Overview

LR-LINK LRXP1310-10ATL-RX has 10Gb/s receiving data transmission capability and is suitable for 10Gb/s Ethernet. It complies with SFF8472.

LRXP1310-10ATL-RX has a transmission distance of up to 10 km on SMF, complies with the laser safety standard IEC-60825, consumes less than 1W, and has the advantages of low power consumption, low EMI and excellent ESD protection.

Specifications

Absolute Maximum Ratings
Parameter	Symbol	Min.	Typical	Max.	Unit
Data rate	DR		10.3125		Gb/s
Operating temperature	TC	0		70	◦C
Storage temperature	TSTO	−40		85	◦C
Operating voltage	VCC		3.6		V

Receiver
Parameter	Symbol	Min.	Typical	Max.	Unit
Receiver overload	POL	-3			dBm
Optical center wavelength	λ C		1310		nm
Receive Sensitivity	RX SEN1			−13	dBm
Return loss	ORL	12			dB
LOS signal active	LOSA	−28			dBm
LOS signal failure	LOSD			−14	dBm
LOS signal hysteresis interval	LOSH	0.5		4	dB

Receiver
Parameter	Symbol	Min.	Typical	Max.	Unit
Differential output swing	VOUT PP	300		800	mV
Output differential impendence	ZOUT		100		Ohm
LOS signal active	VLOS A	2.0		VCC	V
LOS signal failure	VLOS D	0		0.8	V
