LREMN100PF-4SFP+

PCIe 3.0 x8 | Mucse RNP N10-X8 | 10G | SFP+ | Quad-port

LREMN100PF-4SFP+

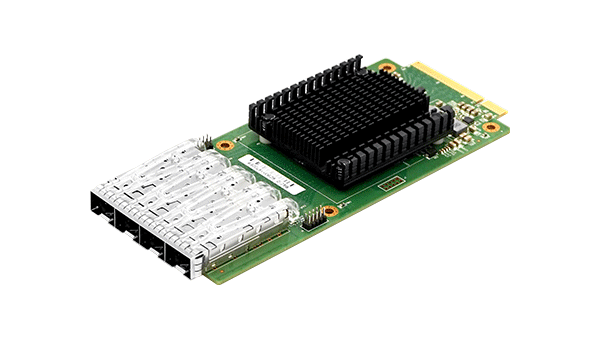

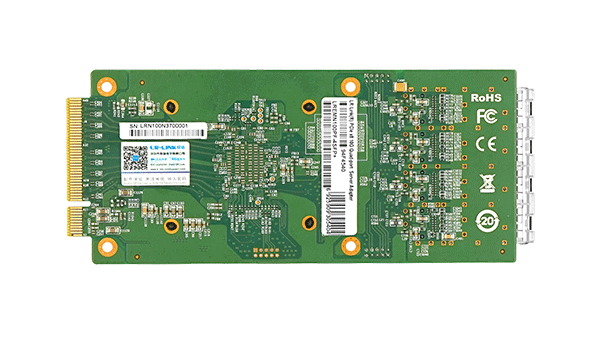

PCIe x8 10G Quad-port Server Adapter (Mucse RNP N10-X8 Based)

Supports encryption protection of data streams;
Support QoS and support data flow control according to the queue mechanism;
Supports data packet offloading, supports IP/TCP and IP/UDP checksum offloading;
High security and high cost performance.
Overview

LREMN100PF-4SFP+ is a PCIe 3.0 x8 10G Quad-port Server Adapter based on the Mucse RNP N10-X8 main control solution. As a network card using a nationally produced chip main control solution, LREMN100PF-4SFP+ breaks the monopoly of foreign technology. , provides strong support to ensure national information security, has a high degree of reliability and stability, and can ensure the normal operation of the network in various complex environments.

The product also has complete data encryption functions and supports secure transmission protocols such as IPSec and MACSec, which can protect the integrity and confidentiality of data during transmission. In terms of application, this network card is suitable for various scenarios such as firewalls and intrusion detection and prevention systems, and can provide users with excellent network performance guarantees and reliable secure connections. Whether it is a large enterprise or a government agency, users can improve network security protection capabilities by deploying LREMN100PF-4SFP+, ensuring the safe transmission of key information and reliable protection of network resources, and protecting key assets from network threats.


Specifications

Model

LREMN100PF-4SFP+

Controller

Mucse RNP N10-X8

Cable medium

Optical Fiber

Fiber Type

10GBASE-R

Power (min)

5.736W

Power (max)

9.156W

Bus Interface

PCIe3.0 x8

Data rate per port

10Gbps

Connector

4*10G SFP+

Power Supply

PCIe

Operating System Support

* Deepin 15.11 /20 /20.6

* Galaxy Unicorn V10

* NeoKylin 7.6

* RHEL/CentOS 7.6 /7.9 /8.3

* Ubuntu 16.04.3 /18.04.5

* Ubuntu 20.04.1 /22.04.2

* Emind OS

* OpenKylin 0.7.5

* ZTE New Fulcrum 5.0.5 /3.2.2

* Tongxin UOS 20

* Asianux Server V7.0

* Zhongke Fangde desktop operating system 4.0

* Zhongke Fangde server operating system

PXE

Yes

WoL

No

iSCSI

No

Jumbo Frames

Yes

UEFI

Yes

VMDq、SR-IOV

Yes

1588 PTP

No

Protocol Support

IEEE 802.1P、IEEE 802.1Q、IEEE 802.2、IEEE 802.3ac、

IEEE 802.3az、IEEE 802.3x、IEEE 802.3z、IEEE 802.3ad


Driver
File name For OS Version Upload time Downlaod
rnpm-0.3.1.tar.gz.zip Linux 0.3.1 2024-08-14
