LREM7100PF-2SFP+
PCIe 3.0 x8 | Intel X710 | 10G | SFP+ | Mezzanine | Dual-port

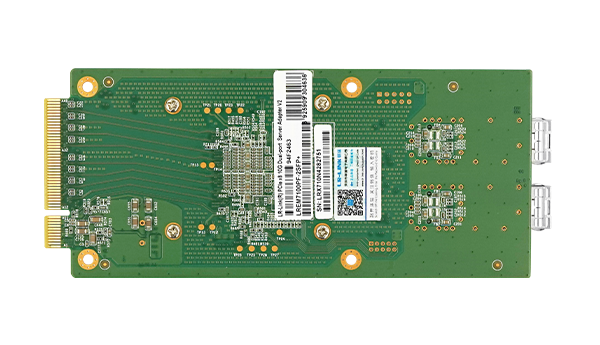

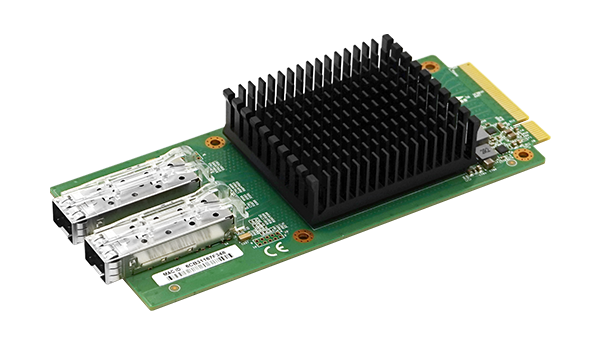

LREM7100PF-2SFP+
PCIe x8 Dual-port 10G SFP+ Mezzanine Ethernet Network Adapter (Intel X710)
Based on Intel X710 main control development
Equipped with two SFP+ optical ports, supporting 1G /10G data transmission rate
Adopts mezzanine structure, easy to use in firewalls, gateways and other security platforms
PCIe v3.0 x8, compatible with v2.0, v2.1
Overview
LREM7100PF-2SFP+ is a dual-port 10G cross-plug fiber optic Ethernet network adapter developed by Linkreal CO.,LTD. based on Intel X710 chip solution. The adapter adopts a cross-plug structure, which is easy to use on security platforms such as firewalls and gateways, and at the same time meets the needs of data transmission by providing unparalleled features for device and network virtualization functions.
With a maximum bandwidth data transfer performance of 10G per port, this Ethernet network adapter takes the bottleneck out of the network system for applications.
The LREM7100PF-2SFP+ is based on the Intel X710 high-performance Ethernet network adapter. In addition to managing the functions of the MAC and PHY Ethernet layers, the controller manages PCI-Express datasheet traffic at its switching links and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculation and TCP segmentation.
The LREM7100PF-2SFP+ is based on the high-speed PCIe3.0 x8 interface and is backward compatible with PCI Express v2.0 and PCI Express v2.1 transfer rate interfaces.
Specifications
Controller | Intel X710 | ||
Cable medium | Fiber Optics | ||
Fiber Type | 1000BASE-SX、1000BASE-LX、10GBASE-SR、 10GBASE-LR、10GBASE-ER | ||
Bracket Height | * | ||
Min Power(w) | 3.84W | ||
Max Power(w) | 4.416 W | ||
Connector | 2 * 10G SFP+ | ||
Bus Type | PCIe 3.0 (8.0GT/s) x8; PCIe2.0, PCIe2.1 compatible | ||
Data rate per port | 1 /10 G | ||
Power Supply | PCIe | ||
Protocol Support | IEEE802.3ba 10 Gigabit Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.3BD IEEE 802.1AS IEEE 802.1Q VLAN IEEE 802.3AD IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.3ap | ||
PXE | Yes | ||
UEFI | Yes | ||
DPDK | Yes | ||
WoL | No | ||
iSCSI | Yes | ||
Jumbo Frames | Yes | ||
SCAN CHAIN | No | ||
SR-IOV | Yes | ||
1588 PTP | No | ||
System Support | * Windows 7 /8 /8.1 /10 /11 * Windows Server 2008 /2012 /2016 /2019 /2022 * Deepin 15.11 /20 /20.6 * VMware ESXi 6.5 /6.7 /7.0 * Galaxy Unicorn v10 * NeoKylin 7.6 * OpenKylin 0.7.5 * RHEL/CentOS 7.6 /7.9 /8.2 /8.3 * Ubuntu 16.04.3 /18.04.5 /20.04.1 /22.04.2 * SUSE 12.5 /15.4 * FreeBSD 12.2 /13.2 * ZTE New Fulcrum 5.0.5 /3.2.2 * Tongxin UOS 20 * Asianux Server v7.0 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * Mikrotik * iKuai router | ||
LED Indicators | 1G | LINK | Green Link |
ACT | Green Blink | ||
10G | LINK | Green Link + Green Link | |
ACT | Green Link + Green Blink | ||
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| ixl-1.14.2.tar.gz | FreeBSD | 1.14.2 | 2024-08-14 |
 |
| i40e-2.25.11.tar.gz | Linux | 2.25.11 | 2024-08-14 |
|
| Release_28.2.zip | OS Independent | v28.2 | 2024-07-19 |
|
