LRES3002PT
PCIe 2.1 x4 | Intel I210 | 1G | RJ45 | Dual-port
LRES3002PT

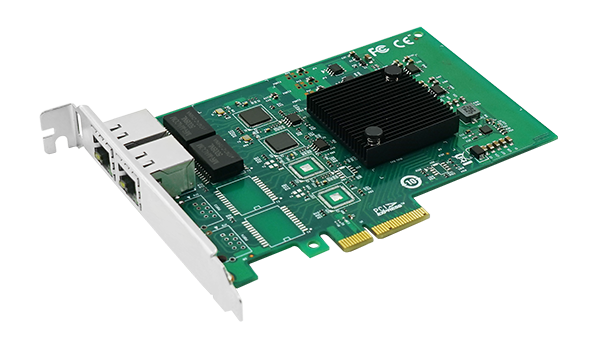

PCIe x4 Dual-port Copper Gigabit Ethernet Network Adapter (Intel I210)
Low cost, low power,energy-efficient Ethernet and DMA merging
Dual-port 1GBASE-T controller with integrated MAC and PHY
Four transmit queues and four receive queues per port
10/100/1000Mbps networks transition
PCI Express (Pcle) v 2.1
Overview
LRES3002PT is PCI Express x4 Dual-ports Gigabit Ethernet network adapter developed by Linkreal Co., Ltd. based on Intel I210 control solution. It can also be used on PCIe x8 and x16 channels. The use of miniaturized design does not reduce the performance indicators of the network card.
Ethernet power management technologies such as energy-efficient Ethernet and DMA merging are used, with four transmit queues, four receive queues, and error correction memory protection to improve data transmission reliability by combining parallel and pipeline logic architectures. Together, effectively managing packets with delays.
High-performance network data transmission on the machine bus architecture, compatible with Ethernet and Fast Ethernet, which greatly reduces customer deployment and training costs, allowing users to quickly and easily migrate their networks to Gigabit Ethernet 10/100/1000Mbps. The link rate is adaptive to the links on the network. At the highest Gigabit Ethernet connection, four ports can be simultaneously operated in full-duplex mode to accommodate high-performance network communication, which can extend bandwidth and save PCI Express channel resources through link aggregation.
PCIe2.1 x4 Dual-port Gigabit Ethernet Network Adapter: LRES2024PT
Specifications
Specifications | ||
Controller | Intel(R) Chip | |
Transmission medium | Copper | |
Type | 1000Base-T Cat 5E/6 or higher , up to 100m | |
100Base-Tx Cat5/5E/6 or higher , up to 100m | ||
10Base-T Category 3/4/5/5E/6 or higher , up to 100m | ||
Baffle Height | Full height | |
Power Consumption | 3.2W | |
Connector | 2*1G RJ45 | |
PCI-e Bus Type | PCI Express v2.1 (2.5GT/s) x4 , compatible with x8、x16 | |
Data rate per port | 10/100/1000Mbps | |
Power supply | PCIe | |
Standards compliant | IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3az - Energy Efficient Ethernet (EEE) | |
OS Support | * Windows 7、8/8.1、10 * Windows Server 2008 / R2 * Windows Server 2012 / R2 * Windows Server 2016 / R2 * Windows Server 2019 / R2 * Linux Stable Kernel version 2.6.x / 3.x / 4.x or later * CentOS / RHEL 6.x / 7.x or later * Ubuntu14.x/16.x or later * FreeBSD 9 / 10 / 11 or later * Vmware ESX/ESXi 5.x / 6.xor later | |
PXE | No | |
DPDK | Yes | |
WOL | Yes | |
iSCSI | Yes | |
Jumbo Frames | Yes | |
FCoE | No | |
LED Indication | ||
LED Indication | 1000Mbps：Orange bright + Green flashing | |
10Mbps/100Mbps: Green flashing | ||
Environment Features | ||
Operating Temperature | -40℃ to 85℃ (40 ℉ to +185 ℉) | |
Storage Temperature | -55 ℃ to +105 ℃ (-67 ℉ to +221 ℉) | |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ | |
Certification | FCC B,CE | |
Physical Features | ||
Product Size(mm) | 147*120*21 | |
Sackage Size (mm) | 225*150*30 | |
Weight(g) | 92 | |
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| Release_28.2.zip | OS Independent | v28.2 | 2024-07-19 |
|
