LRES3004PT
PCIe 2.1 x4 | Intel I210 | 1G | RJ45 | Quad-port
LRES3004PT

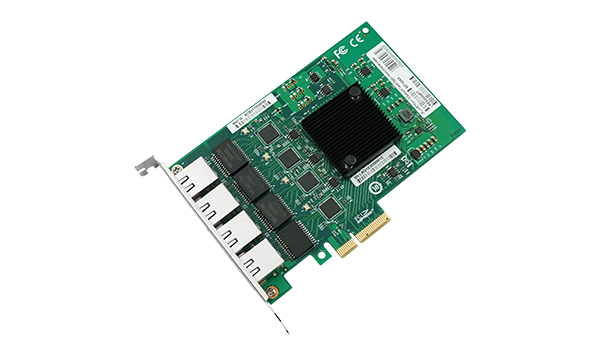

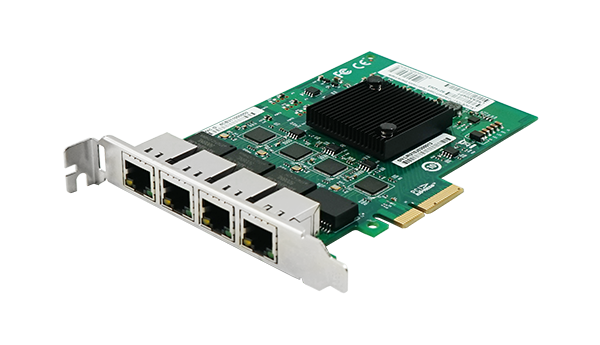

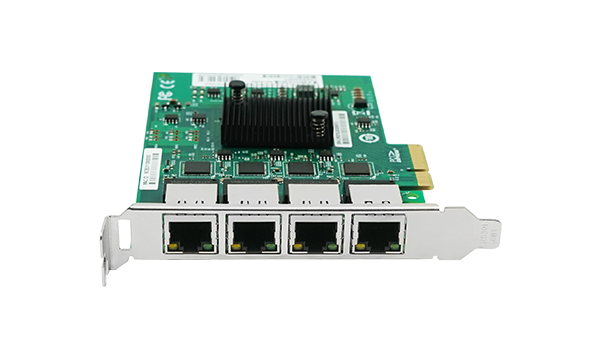

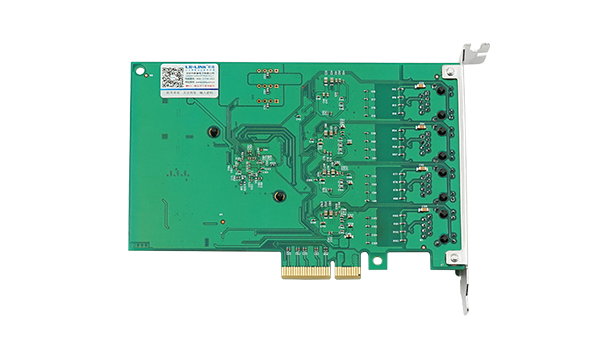

PCIe x4 Quad-port Copper Gigabit Industrial Automatic Card Wide Temperature Range (Intel I210 )
Wide Temperature Range
Intel Ethernet i210 Controller
Support DPDK
Support WOL(Wake-on-LAN) for each port
Support Jumbo Frame
PCI Express x4 interface
3U bracket
Overview
LRES3004PT is PCI Express x4 single-port Gigabit Ethernet network adapter developed by Linkreal Co., Ltd. based on Intel I210 control solution. It can also be used on PCIe x8 and x16 channels. The use of miniaturized design does not reduce the performance indicators of the network card.
Ethernet power management technologies such as energy-efficient Ethernet and DMA merging are used, with four transmit queues, four receive queues, and error correction memory protection to improve data transmission reliability by combining parallel and pipeline logic architectures. Together, effectively managing packets with delays.
High-performance network data transmission on the machine bus architecture, compatible with Ethernet and Fast Ethernet, which greatly reduces customer deployment and training costs, allowing users to quickly and easily migrate their networks to Gigabit Ethernet 10/100/1000Mbps. The link rate is adaptive to the links on the network. At the highest Gigabit Ethernet connection, four ports can be simultaneously operated in full-duplex mode to accommodate high-performance network communication, which can extend bandwidth and save PCI Express channel resources through link aggregation.
PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter: LRES2025PT
Specifications
Specifications | |
Controller | Intel(R) I210 |
Cable | Copper cable |
Cable Type | 1000Base-T Cat 5E / Cat6 or more higher: up to 100m |
100Base-Tx Cat5/5E/6 or more higher: up to 100m | |
10Base-T Category 3/4/5/5E/6more higher: up to 100m | |
Bracket | Low profile and Full-height Bracket |
Power consumption(max) | 6.2W |
Operating system Support | Windows 7 |
Windows 8/8.1 | |
Windows 10 | |
Windows Server 2008 /2008 R2 | |
Windows Server 2012 /2012 R2 | |
Windows Server 2016 R2 | |
Linux Stable Kernel version 2.6.x/3.x/4.x or Later | |
Linux RHEL/CentOS 6.x/7.x or Later | |
Ubuntu 12.x/14.x/16.x/17.x or Later | |
Linux SLES 10/11 or Later | |
FreeBSD 7.x or Later | |
VMware ESX/ESXi 5.x/6.x or Later | |
SCO Open Server 6 and UnixWare 7.1.x or Later | |
Connector | 4*8-Pin RJ45 |
PCI-e slot | PCI Express v2.1 (2.5GT/s) x4；compatible with x8 x16 |
Connector Rate | 1000Mbps /100Mbps/100Mbps |
Technical Features | |
Ethernet Power Management | Yes |
IEEE Standard | IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.3 IEEE 802.1Q VLANs IEEE 802.3az - Energy Efficient Ethernet (EEE) |
PXE | No |
DPDK | Yes |
WOL | No |
iSCSI | No |
Jumbo Frame | Yes |
FCoE | No |
Environment Features | |
Operating Temperature | -40℃ to 85 ℃(-40 ℉ to 185 ℉) |
Storage Temperature | -55 ℃ to +105 ℃ (-67 ℉ to +221 ℉) |
Storage Humidity | 90% non condensing under 35℃ |
Certificate | FCC,CE,Rohs |
LED Indicators | |
LED | 1000Mbps:Yellow Link + Green Blink |
10Mbps/100Mbps: Green Blink | |
Physical Features | |
PCB size(mm) | 147*100*1.6 |
Weight(g) | 109 |
Packing list | |
Packing size（mm） | 255*170*32 |
Quick Install Guide | *1 |
Warranty Card | *1 |
G.W（g） | 245 |
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| Release_28.2.zip | OS Independent | v28.2 | 2024-07-19 |
|
