PCIe 2.1 x4 | Intel I210 | 1G | RJ45 | Twelve-port

LRES2035PT

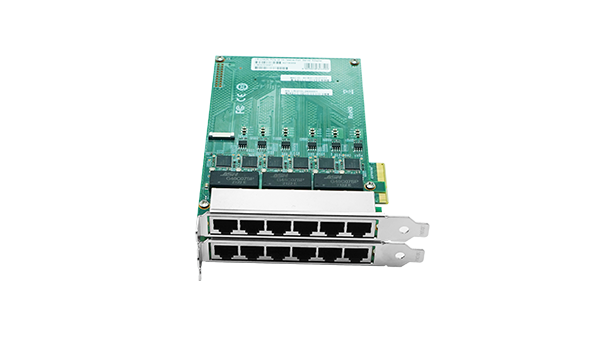

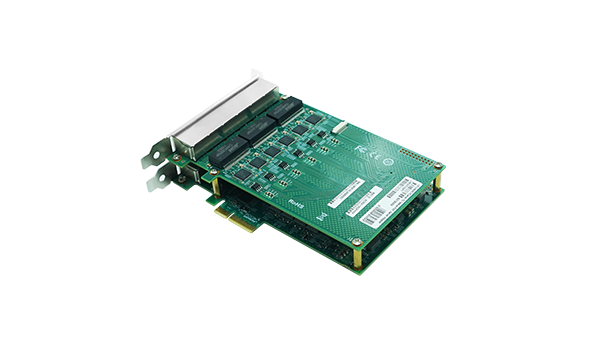

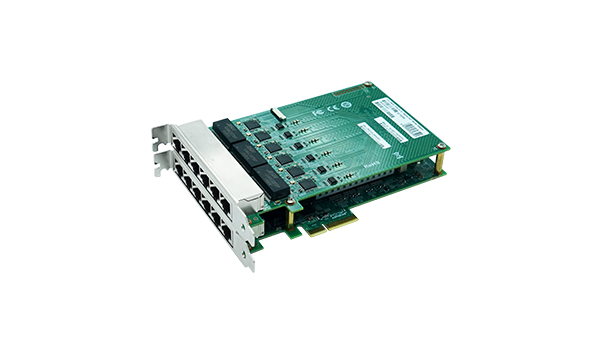

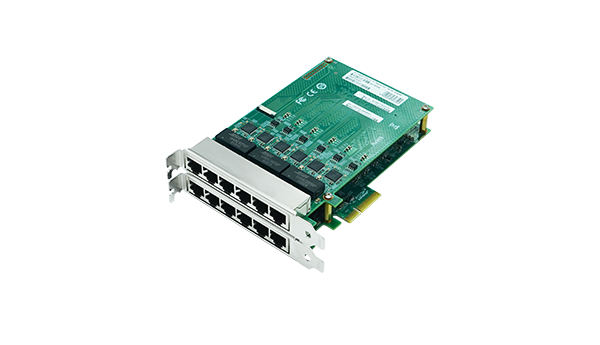

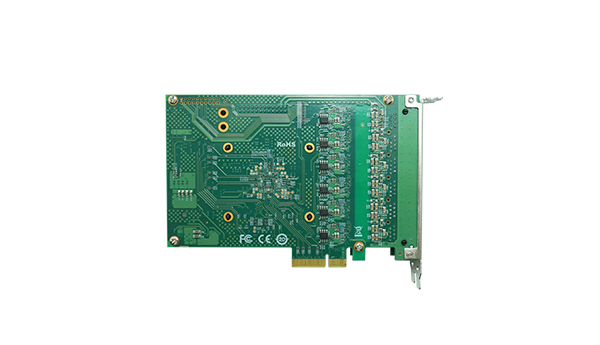

PCIe x4 Twelve-port Copper Gigabit Ethernet Network Adapter (Intel I210)

A 12-port gigabit ethernet network adapter;

It is widely used in data transmission such as industrial manufacturing and machine processing;

And each network port has 4 sending queues and 4 receiving queues, error correction memory protection, etc.;

The bandwidth can be expanded through link aggregation and PCI Express channel resources can be saved.

LRES2035PT

PDF 672.2KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES2035PT is a 12-port gigabit ethernet network adapter with PCIe x4 bus interface developed by Linkreal Co., Ltd. based on the Intel master control solution. It is widely used in industrial manufacturing, machine processing and other data transmission. Especially used in harsh environments.

The card uses ethernet power management technologies such as energy-saving ethernet and DMA merger, and each network port has 4 sending queues and 4 receiving queues, error correction memory protection and other technologies to improve the reliability of data transmission. Combine parallel and pipeline logic architectures to effectively manage delayed data packets. The bandwidth can be expanded through link aggregation and PCI Express channel resources can be saved.

PCIe2.1 x4 Dual-port Gigabit Ethernet Network Adapter: LRES2024PT

Specifications

Controller	Intel Chip
Baffle Height	Full height
Power Consumption	14.0W
System Support	Windows 7/8/8.1/10
	Windows Server 2008 R2/2012 R2/2016 R2/2019 R2;
	Linux Stable Kernel version 3.x/4.x or later;
	Linux CentOS/RHEL 6.x / 7.x or later;
	Ubuntu 14.x/15.x/16.x or later;
	VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type	PCIe v2.1 x4, compatible with x8, x16
Data rate supported per port	10/100/1000MbE
Connector	12*8-Pin RJ45

Protocol Support	IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet
iSCSI	No
WoL	No
Jumbo Frames	Yes
DPDK	Yes
PXE	Yes
FCoE	No

Operating Temperature	0 ℃ to 55 ℃ (32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
