LREC9724PT

PCIe 2.1 x4 | Intel I350 | 1G | RJ45 | Quad-port

LREC9724PT

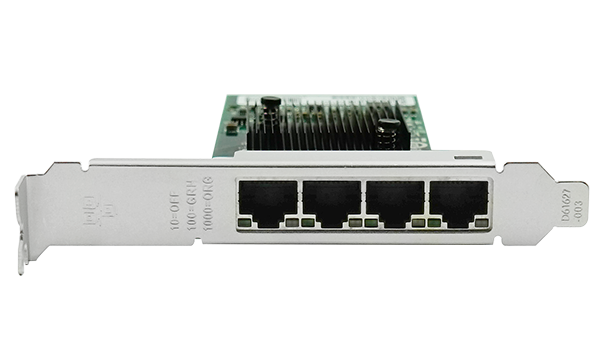

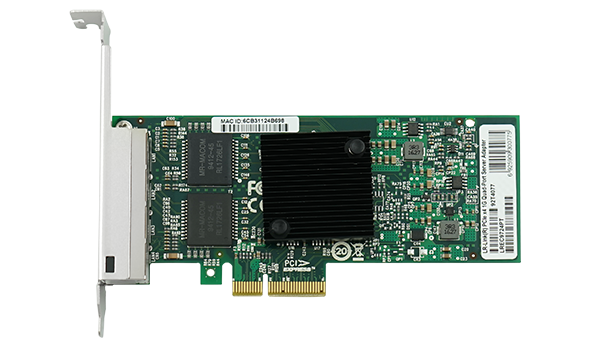

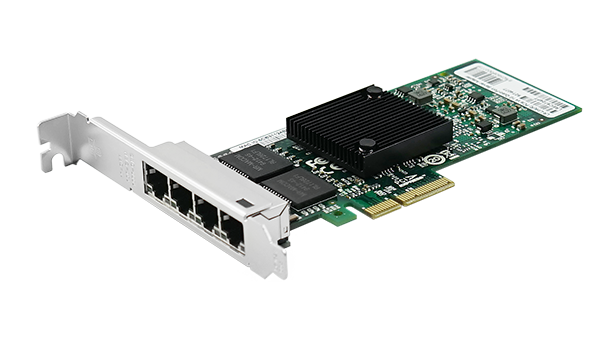

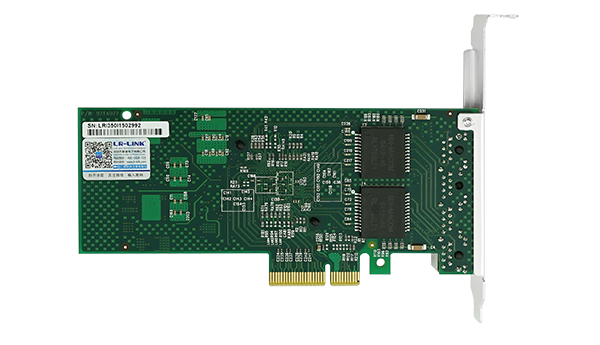

PCIe x4 Quad-port Copper Gigabit Server Network Adapter (Intel I350)

Quad Port 10/100/1000Mbps adapters
PCI Express (PCIe) v2.1(5.0GT/s) x4 lanes
RJ45 Connectivity
Network Virtualization
Flexible I/O virtualization for port partitioning and QoS of up to 32 virtual ports
Vital Product Data(VPD) Support
Management Component Transport Protocol(MCTP)
Low profile and full-height bracket
Overview

LREC9724PT is a PCIe x4 1Gbps Quad-Port Copper Sever Ethernet Adapter based on Intel I350 chipset, compatible with PCIe x8 and x16 slot. The adapter is mainly used on servers and its performance has been optimized while being designed, which makes system I/O no longer be the bottleneck on the application of high-end network. The adapter can be grouped up together through its four ports to expand network bandwidth and ensure network performance. It can also real-time detect automatically and combine the communication route from the faulty port with others to achieve high-performance communications incessantly.




LR-LINK PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter: LRES2025PT

Specifications

Controller

Intel I350

Transmission Rate Per Port

10/100/1000Mbps

Network Standard Physical Layer Interfaces

1000BASE-T:Cat 5eor higherup to 100m

100BASE-Tx:Cat5/5e/6or higherup to 100m

10BASE-T:Cat3/4/5/5e/6or higherup to 100m

Jumbo Frame Support

Up to 9 KB

Operating Temperature

0 °C to 55°C (32 °F to 131°F)

Boot Option and Virtualization

PXE support, Intel® VT-c

LED Indicators

1000Mbps/s:Yellow Link and Green Ack,

100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate

Operating System Support

Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2

WindowsXP / Vista /7 / 8 / 8.1 / 10

Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later

Linux SLES 9 / 10 / 11or later

VMwareESX/ESXi4.x /5.x / 6.xor later



Driver
File name For OS Version Upload time Downlaod
Release_28.2.zip OS Independent v28.2 2024-07-19
