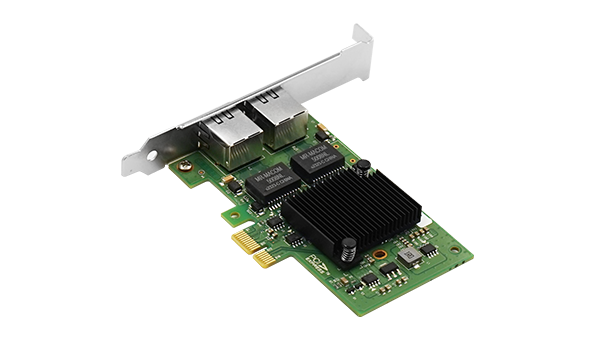

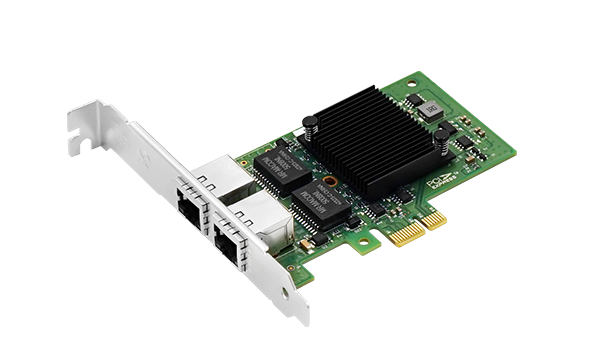

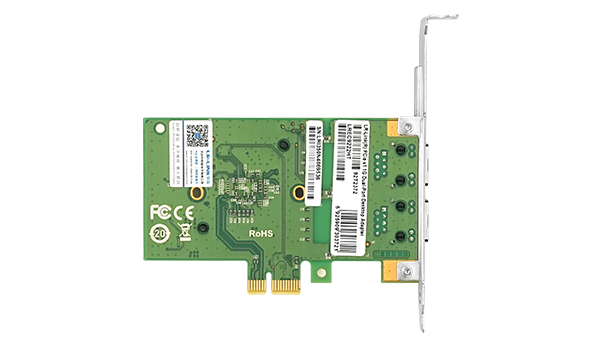

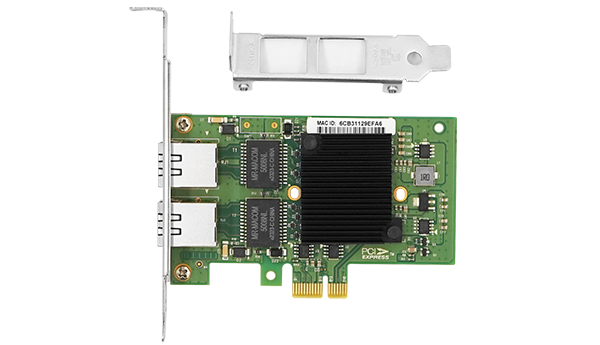

PCIe x1 Dual-port Network Interface Card (Intel I350)

LREC9222HT is a PCI Express x1 dual-port RJ45 Connector Gigabit Ethernet network card independently developed by Linkreal Co., Ltd. based on the Intel I350 chip solution. It is also compatible with PCIe x4, x8, x16 channels. The network card design is primarily used on desktop workstations. The network card can be bundled into groups at the same time through multiple ports to achieve fault tolerance and redundancy to extend network bandwidth and ensure network performance. It can automatically detect and implement communication from the failed port to other members in the same group in real time, to achieve uninterrupted high performance communication.

The network card features integrated hardware acceleration to perform TCP/UDP/IP checksum offloading and TCP segmentation tasks. The host processing technology can load the accelerator, and the host processing technology can load the accelerator, which greatly releases the CPU resources and frees up more CPU resources to process other applications. This network card is an ideal solution for applications that deploy workstation networks.

The LREC9222HT was developed on the Intel I350 dual-port Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, allows both ports to operate in full-duplex mode for high-performance network communications in a Gigabit Ethernet connection, bandwidth can be extended by link aggregation and PCI Express channel resources can be saved without consuming bus bandwidth.
