LREC9224PT

PCIe 2.1 x1 | Intel I350 | 1G | RJ45 | Quad-port

LREC9224PT

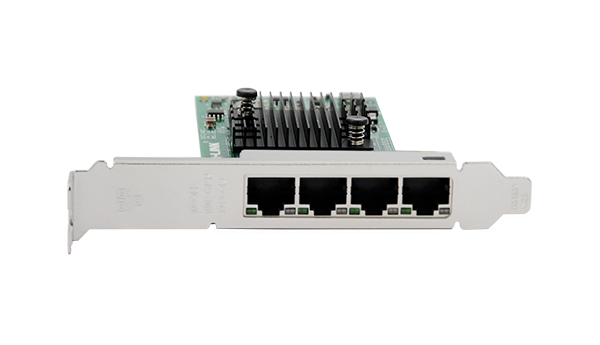

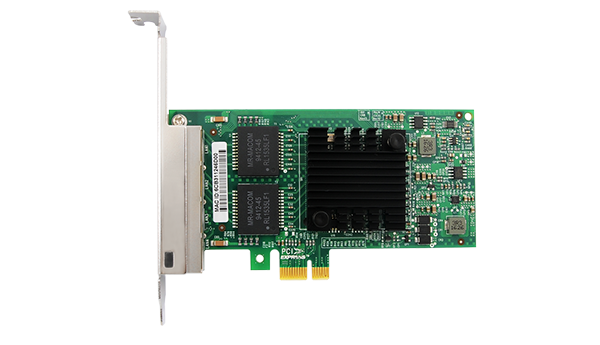

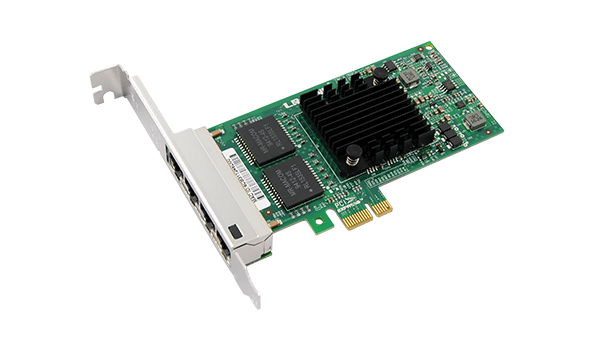

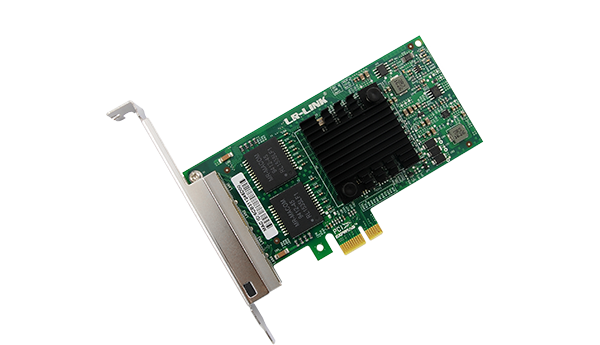

PCIe x1 Quad-port Copper Gigabit Network Adapter with Intel I350 (4 x RJ45)

Quad Port 10/100/1000Mbps adapters
PCI Express v2.1,(5.0GT/s) x1 lane
RJ45 Connectivity
Support PCI-SIG SR-IOV
Support Jumbo Frame up to 9.5KB
Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
IEEE 802.1q VLAN support with VLAN tag insertion

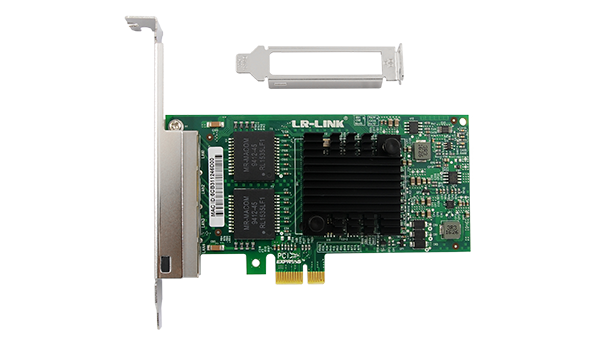

Low profile and full-height bracket
Overview

LREC9224PT is a PCIe x1 quad-port copper ethernet copper adapter based on intel I350 chipset, is compatible with PCIe x4, x8 and x16 slot. The adapter is mainly used on industrial PCs and its performance has been optimized while being designed, which makes system I/O no longer be the bottleneck on the application of high-end network.




The adapter can be grouped up together through its four ports to expand network bandwidth and ensure network performance. It can also real-time detect automatically and combine the communication route from the faulty port with others to achieve high-performance communications incessantly.




LR-LINK PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter: LRES2025PT


Specifications

Controller

Intel I350

Transmission Rate Per Port

10/100/1000 Mbps

Network Standard Physical Layer Interfaces

10BASE-T Cat3/4/5/5E/6:100m most

100BASE-Tx Cat5/5E/6:100m most

1000BASE-T Cat5E/6:100m most

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 55°C (32 °F to 131°F)

Boot Option and Virtualization

PXE support, Intel® VT-c

LED Indicators

1000Mbps:Yellow and Green Blinking

100Mbps:Green and Green Blinking,10Mbps:Not illuminate

Operating System Support

Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2

WindowsXP / Vista /7 / 8 / 8.1 / 10

Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later

Linux SLES 10 / 11or later

VMwareESX/ESXi4.x/5.x/6.xor later



Driver
File name For OS Version Upload time Downlaod
Release_28.2.zip OS Independent v28.2 2024-07-19
