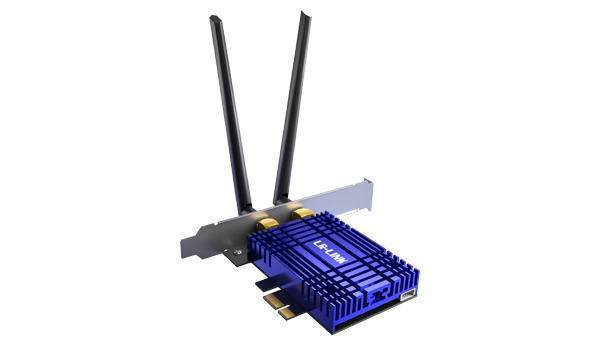

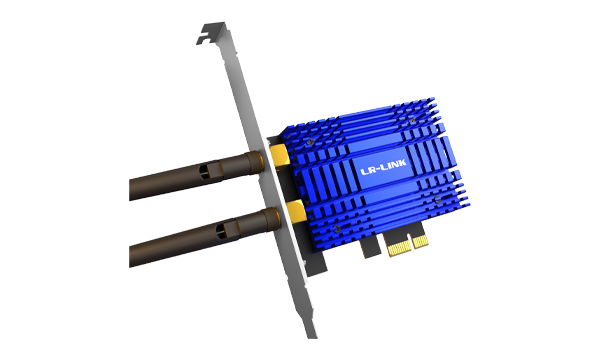

LRCWF-AX210 is a high-speed PCI-E wireless network card that supports the sixth-generation WiFi protocol standard 802.11ax developed by Linkreal Co., Ltd. based on the AX210 module.
LRCWF-AX210 supports 2.4GHz, 5GHz and 6GHz tri-band up to 5374Mbps wireless rate, and supports Bluetooth 5.3 technology at the same time, amazing configuration standards and rich practical functions can meet the higher needs of users.
5374Mbps, the new sixth-generation WiFi standard
LRCWF-AX210 supports 2.4 & 5 & 6 GHz tri-band, the new sixth-generation WiFi standard 802.11ax, and the average throughput in dense environments is at least 4 times higher than that of 802.11ac. The rate of 5GHz and 6GHz can reach up to 2400Mbps, and the rate of 2.4GHz can reach 574Mbps. Users can play various large-scale online games without losing the connection, and enjoy the pleasure of extreme speed.
Bluetooth 5.3, faster and more stable transmission
LRCWF-AX210 adopts Bluetooth 5.3 technology, which has higher data transmission rate, stronger encryption control and better loop broadcast performance than Bluetooth 5.2. The data transmission rate of Bluetooth 5.3 2Mbps is twice that of Bluetooth 5.2; and the support of Bluetooth 5.2 does not have low-speed connection performance, which enables Bluetooth 5.3 to support and be widely used in medical equipment.
2*5dbi high gain antenna, WiFi signal reception
LRCWF-AX210 has an external 2 * 5Bi high-gain omnidirectional antenna to receive router or other WiFi signals to connect to the Internet. Support dual-band free switching. 2.4GHz, 5GHz and 6GHz can respectively meet the requirements of customers for signal penetration ability and anti-interference ability.
Support MU-MIMO
LRCWF-AX210 adopts a new generation
of MU-MIMO wireless technology, allowing
more downlink data to be transmitted at one time, enabling data to be transmitted to more devices.
HARDWARE | ||
Model | LRCWF-AX210 | |
Bus Type | PCI Express 2.0 x1 | |
I/O Controller | AX210NGW | |
Wireless Standard | 802.11 ax /ac /a /b /g /n | |
Wireless Band | 2.4GHz | 2400-2500 MHz |
5GHz | 5150-5850 MHz | |
6GHz | 5925-7125 MHz | |
Bluetooth Version | BT 5.3 | |
Interface Support | PCIe x1, compatible with X4, X8, x16 | |
Transmission Rate (max) | 2.4GHz | 574 Mbps |
5GHz / 6GHz | 2400 Mbps | |
Antenna Gain | 2.4GHz | 3.8 dB |
5GHz | 4.2 dB | |
Encryption | WPA2* Personal and Enterprise,WPA3* | |
Scope Of Application | Desktop PC | |
Transmit Power | WiFi | 19.5 dBm |
BT | 10 dBm | |
Operating System Support | Windows 10 (64-bit) ; Windows11(64bit) | |
Indicator Light | WiFi Signal Light |
CONNECTOR | |
Bus Type | PCI Express 2.0 x1 |
Bluetooth | BT 5.3, support backward compatibility |
ENVIRONMENTAL | |
Operating Temperature | 0℃ - 70℃ (32℉ - 158℉) |
Storage Temperature | -40℃ - 80℃ (-40℉ - 176℉) |
Working Humidity | 10% - 90% RH non-condensing |
Storage Humidity | 5% - 90% RH non-condensing |
