LRHQ131X-02ATM
LRHQ131X-02ATM

QSFP28 | 100G | 1310nm | Single-mode | 2km

LRHQ131X-02ATM

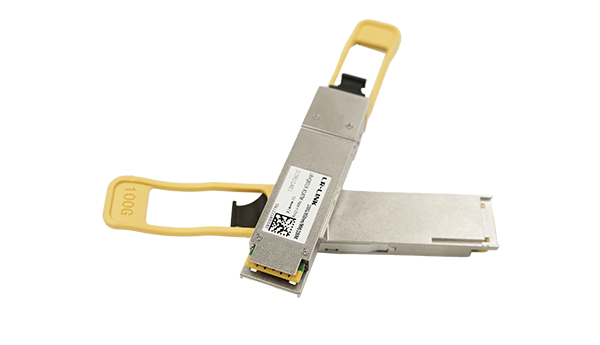

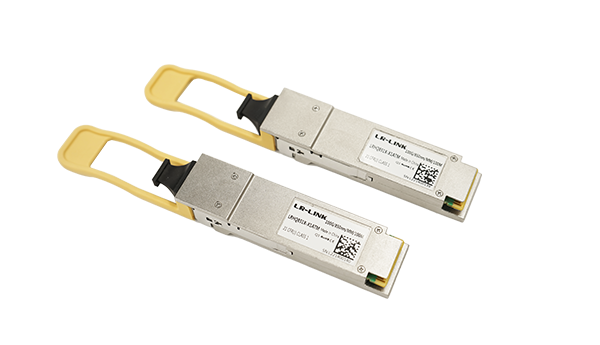

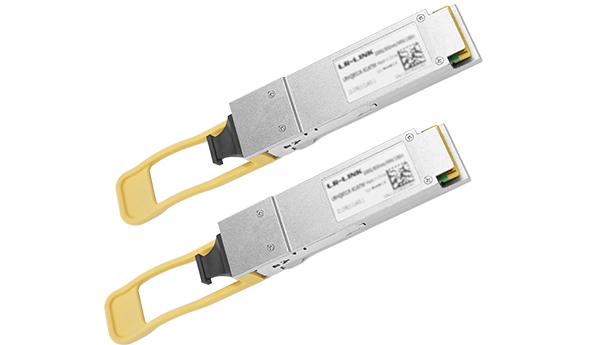

QSFP28 100G Optical Transceiver, 1310nm, Single-mode Fiber, 2km

QSFP28 form factor with Duplex LC receptacles
4xCWDM DFB Laser/PIN Photo Detector
Hot-pluggable
Low power dissipation: <3.5 W(max)
Operating data rate: 25.78125 Gbps per channel (typical)
Operating case temperature range: 0℃ to 70℃
LRHQ131X-02ATM
PDF 1.63MB
Download
More Support
Overview

APPLICATIONS:


• Ethernet for100GBASE-FR4


• InfiniBand EDR, QDR &FDR




INDUSTRY STANDARDS:


• SFF-8679


• SFF-8661


• SFF-8636


• GR-468


• ROHS-6


• IEEE802.3bm


Specifications
