SFP28 | 25G | 1310nm | LC | 10km

LRTP1325-10ATL

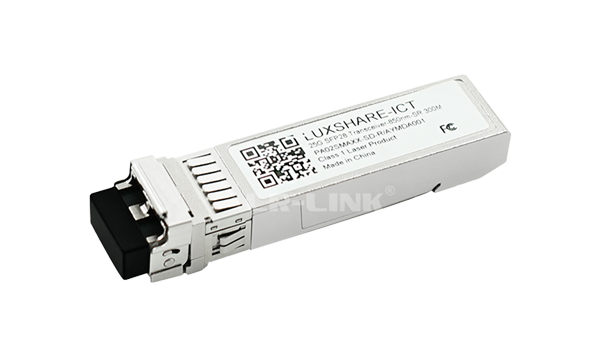

25G SFP28 Single-mode Fiber Optical Transceiver

Operating Data Rate up to 25Gbps;

SFP28 package with duplex LC receptacle connector

Hot-pluggable capability;

Single 3.3V power supply;

Up to 10km transmission distance over SMF;

RoHS 2.0 compliance;

Built- in Digital Diagnostic Monitoring (DDM) function;

Class I laser safety standard IEC-60825 compliant.

LRTP1325-10ATL

PDF 252.98KB

Download

More Support

Overview Specifications Related products

Overview

LR-LINK LRTP1325-10ATL offers customers multi rate of up to 25.78 Gigabit Ethernet connectivity options for 5G front haul , Ethernet applications. This document specifies the electrical, optical, and mechanical characteristics of the 25Gbps module.

The LRTP1325-10ATL supports 25G CPRI and Ethernet application , it is offered in a cost-effective SFP28

form factor and I2C interface. The module supports a link length up to 10km on standard single mode fiber

such as SMF-28.The module converts 25Gbps electrical data to DFB-based high-performance optical signals for

optical transmission. Reversely on the receiver side, the module converts 25Gbps optical signal to electrical

data with PINbased receiver and CDR IC chip.

Specifications

Absolute Maximum Ratings
Parameter	Condition	Min.	Typical	Max.	Unit
Supply Voltage	+3.3v Supply Voltage	-0.5	-	3.6	V
Storage Temperature	Case Temperature	-45	-	90	◦C
Relative Humidity, Storage	None Condensing	5	-	95	%

Transmitter
Parameter		Symbol	Min.	Type	Max.	Unit
Differential Data Input Swing		Vin	180	-	700	mVpp
Input Differential Impedance		Zin	90	100	110	ohm
Tx_Disable	Disable	VD	2.0	-	VCC	V
Tx_Disable	Enable	VEN	GND	-	GND+0.8	V
TX_ Fault	Fault	VF	2.0	-	VCC	V
TX_ Fault	Normal	VNO	0	-	+0.8	V
Receiver
Parameter		Symbol	Min.	Type	Max.	Unit
Differential Date Output Swing		Vout	350	-	850	mVpp
Output Differential Impedance		Zout	90	100	110	ohm
Rx_Los	Los Signal	VOH	2.0	-	VCC+0.3	V
Rx_Los	Normal Operation	VOL	GND	-	GND+0.8	V

Transmitter
Parameter	Symbol	Min.	Type	Max.	Unit
Center Wavelength Range	λC	1260	1310	1360	nm
Average Launch power Tx_off	Poff	-	-	-30	dBm
Spectral Width (-20dBm)	Δλ	-	-	1	nm
Side Mode Suppression Ratio	SMSR	30	-	-	dB
Launch Optical Power	PO	-7	-	+2	dBm
Extinction Ratio	ER	3.5	-	-	dB
Eye Diagram	Compliant with IEEE 802.3-2005
Receiver
Parameter	Symbol	Min.	Type	Max.	Unit
Receiver Sensitivity	Sens	-	-	-12	dBm
Overload Input Optical Power	PMAX	3	-	-	dBm
Center Wavelength Range	λc	1260	-	1600	nm
LOS	LOSD	-	-	-13	dBm
LOS	LOSA	-30	-	-	dBm
LOS Hysteresis	-	0.5	-	-	dB
