SFP+ | 10G | 1310nm | Single-mode | 20km

LRXP1310-20ATL

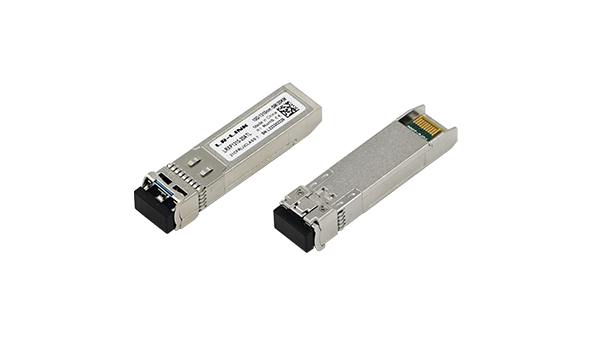

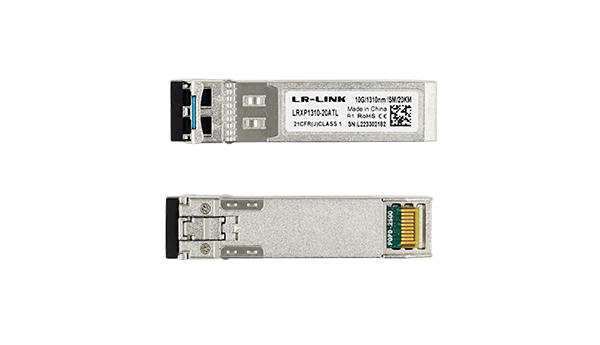

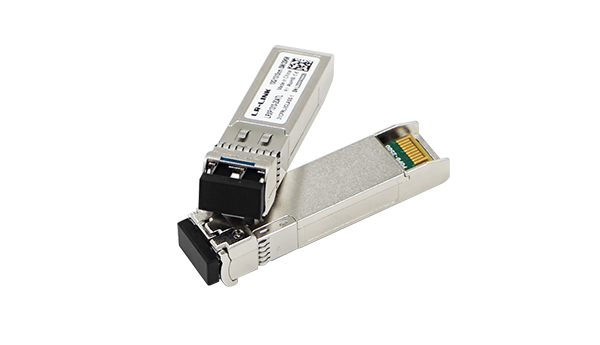

10G SFP+ single-mode ethernet fiber module

Single power supply + 3.3V supply and TTL interface;

Hot-swappable design;

Up to 10Gb/s transmit data transfer capability;

1310nm DFB laser transmitter;

Compliant with IEC-60825 laser safety standard;

RoHS compliant;

Transmission distance up to 20km on SMF single mode fiber;

Operating temperature range: 0℃~70℃.

LRXP1310-20ATL

PDF 356.62KB

Download

More Support

Overview Specifications Related products

Overview

LR-LINK LRXP1310-20ATL 10G SFP+ Single-mode Ethernet Fiber Optic Module has 10Gb/s launch data transmission capability for 10Gb/s Ethernet, which is compliant with IEEE802.3ae 10Gb/s standard.

The LRXP1310-20ATL has a transmission distance of up to 20 kilometers over SMF, complies with the laser safety standard IEC-60825, and consumes less than 1W of power, which has the advantages of low power consumption, low EMI and excellent ESD protection.

Application

10Gb/s 10 Gigabit Ethernet

10Gb/s Fibre Channel

Server, switch, storage and host card adapters

Data center and enterprise networks, Internet of Things

High-speed storage area networks

Computer cluster cross connects

Specifications

Absolute Maximum Ratings
Parameter	Symbol	Min.	Typical	Max.	Unit
Data rate	DR	9.98	10.3125	11.3	Gb/s
Operating temperature	TC	0		70	◦C
Storage temperature	TSTO	-40		80	◦C
Operating voltage	VCC	-0.5		4.0	V

Transmitter
Parameter	Symbol	Min.	Typical	Max.	Unit
Transmitted optical power	P	−6		+0.5	dBm
Optical center wavelength	λC	1290	1310	1330	nm
Extinction Ratio	ER	3.5			dB
Side-Mode Suppression Ratio	SMSR	35			dB
Dispersion Penalty				3.2	dB
Receivers
Parameter	Symbol	Min.	Typical	Max.	Unit
Input optical power overload	PIN	1.5		0	dBm
Optical center wavelength	λC	1260		1360	nm
LOS High Level Warning	LOSA	-30			dBm
LOS Low Level Warning	LOSD			16	dBm
Dispersion Penalty		0.5			dB
