LR-MSAS-SATA-42A
LR-MSAS-SATA-42A

6-Slot Backplane Board | Support Solid State Drive | Support Mechanical Hard Disk

LR-MSAS-SATA-42A

6G LR-MSAS-SATA-42A 6-Slot Backplane Board

6G LR-MSAS-SATA-42A
LR-MSAS-SATA-42A
PDF 0B
Download
More Support
Overview

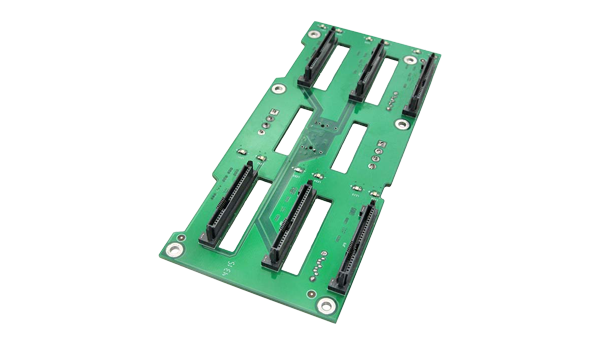

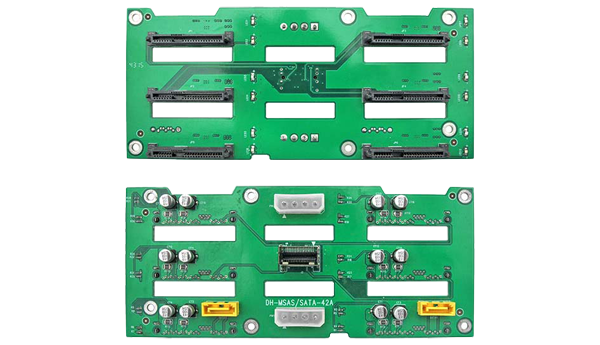

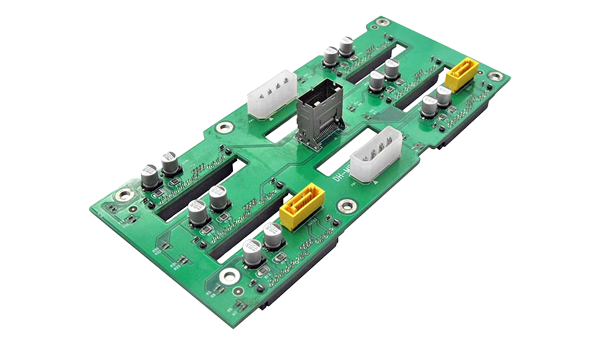

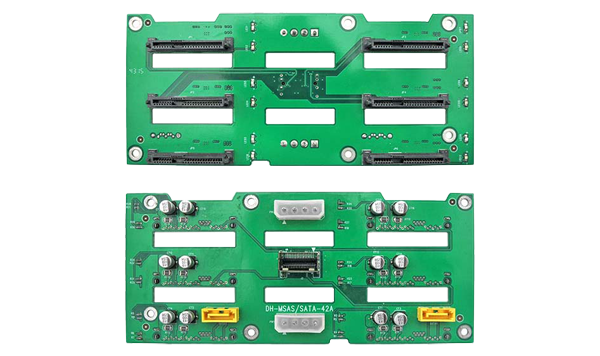

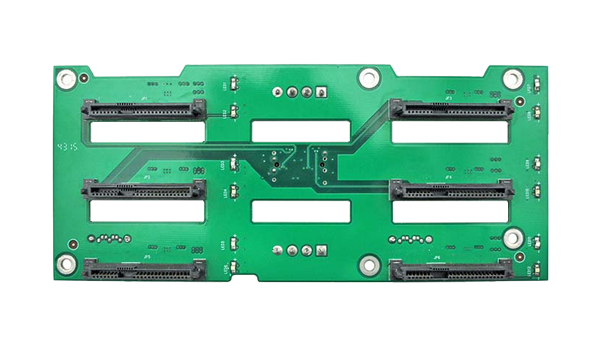

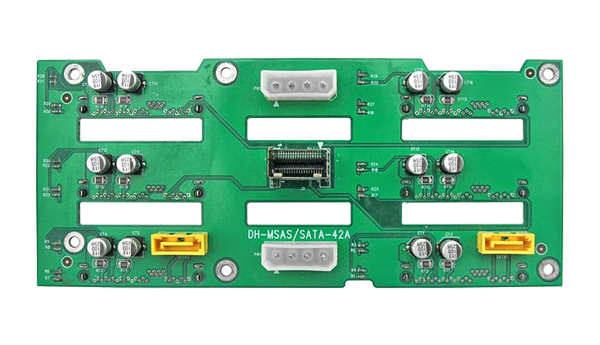

6-Slot Backplane Board


Interface: 3*4Pin Power Supply &6*7Pin SATA Adapter


Support 6*SATA/SAS Hard Disk


Support 2.5/3.5 Inch Hard Disk


Support Solid State Drive


Support Mechanical Hard Disk


Dimension:176mm*76mm


Specifications
