PCIe 2.0 x1 | M.2 SATA | 6Gbps | ASMedia1061 | Dual-Port

LRST9661-2IT

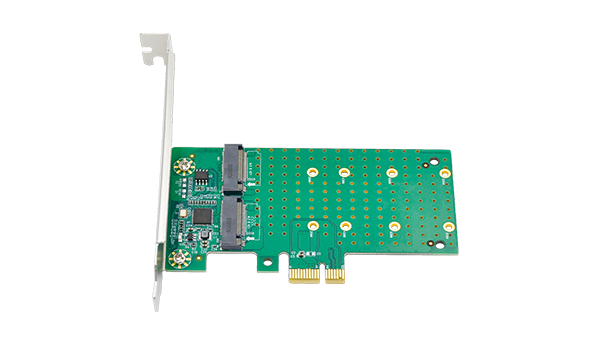

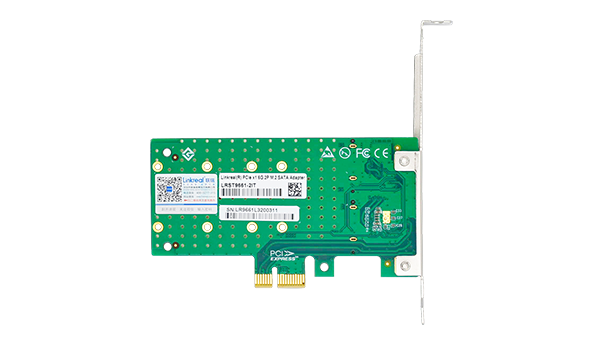

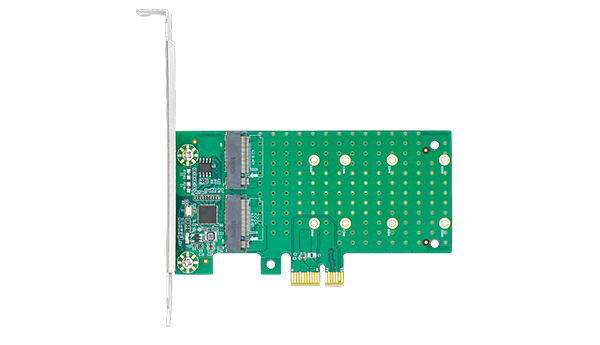

LRST9661-2IT 6Gb/s PCIe x1 to 2-Port M.2 SATA expansion card

Product Model： LRST9661-2IT

Product Name：Dual PCIe x1 to M.2 SATA3 Expansion Card

Chipset:ASMedia 1061

Interface Type:2*M.2 Connectors

Support Equipment:2*M.2 SSD

Host Bus Type:PCIe 2.0 X1

LRST9661-2IT

PDF 0B

Download

More Support

Overview Specifications Related products

Overview

LRST9661-2IT is dual SATA III (6 Gbps) to PCI Express Host Card with Serial ATA Advantage HCI controller, bridges PCI Express to two ports of Serial ATA 6Gbps, enables Serial ATA PHY up to 6Gbps high speed interface, supports SRIS (Separate Reference Clock With Independent Spread) function.

• Compliant with Serial ATA Specification 3.0.

• Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.

• Single virtual channel

• SSC support

• Serial ATA AHCI Spec. Rev.1.3

• Supports two M.2 SATA ports.

• ECRC and Advanced Error Reporting capability

• Support Native Command Queuing (NCQ).

• Support Port Multiplier

• Support Gen 1m and 2m SATA PHY

LR-LINk

Specifications

HARDWARE
Model	LRST9661-2IT
Number of Device	2 internal
I/O Controller	ASMedia1061
Bus Type	PCI Express
Compatible Device Type	M.2 SATA SSDs
Interface	M.2 SATA
CONNECTOR(S)
Device Connector	2*M.2 B-Key SATA Connectors
Host Connector	PCIe 2.0 x1
ENVIRONMENTAL
Humidity	0% – 90%
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-10°C to 65°C (14°F to 149°F)
PHYSICAL CHARACTERISTICS
Dimension	107mm*60mm
Product Weight	46g
WARRANTY INFORMATION
Warranty	2 Years
PACKAGING INFORMATION
Shipping (Package)Weight	3.0oz [86 g]
WHAT'S IN THE BOX
Included in Package	1 - PCI Express to M.2 SATA adapter
	1 - Low-profile bracket
	1 - Full-height bracket(installed)
	2 - Screw & Nut for SSD
