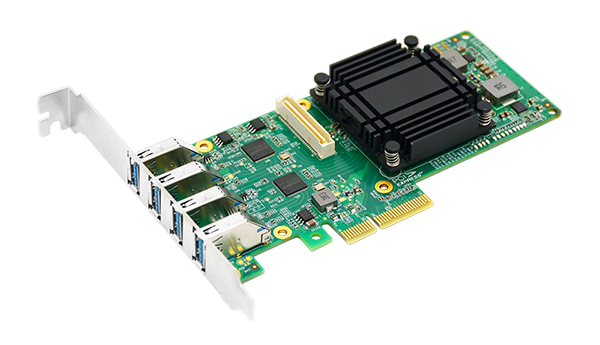

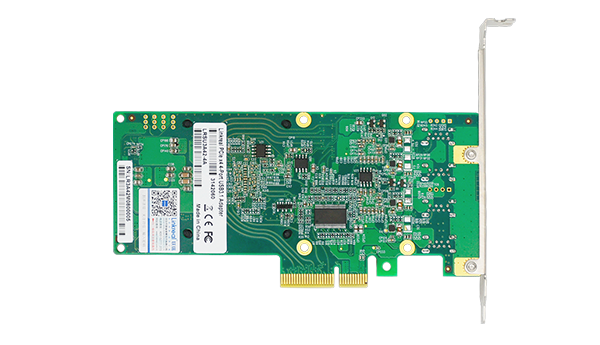

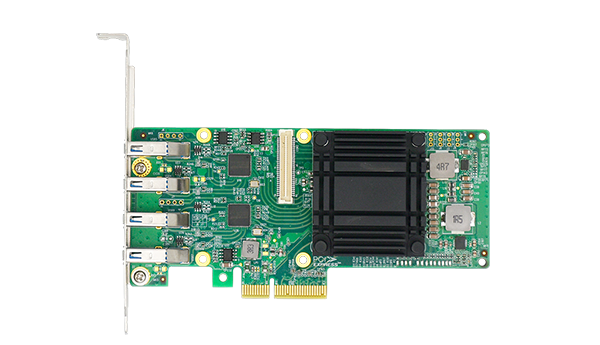

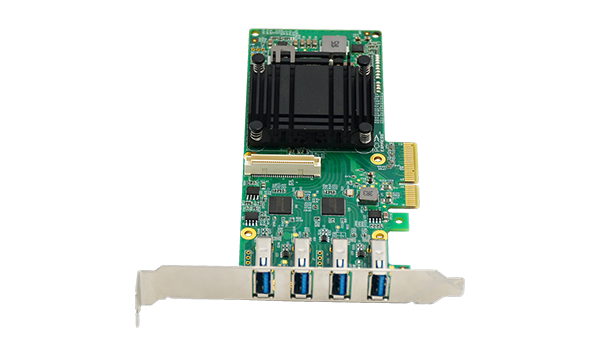

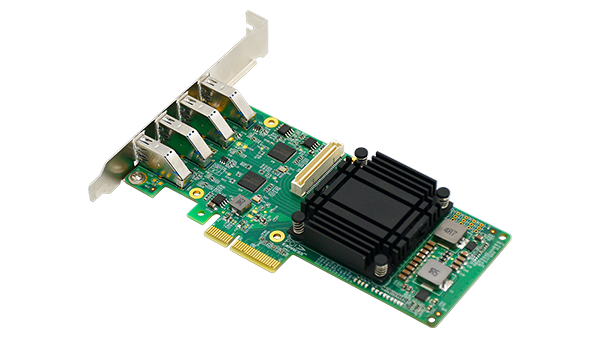

LRSU3A42-4A PCIe x4 to 4 Port USB 3.1 Expansion Card

LRSU3A42-4A is a 4-port USB3.1 host adapter specifically designed for industrial and vision applications. USB3.1 (10Gbps), delivers up to 2 times the data rate over USB 3.0 and is particularly useful for high-speed data storage and imaging devices. It has two independent ASM3142/ASM2142 USB3.1 Host Controllers and x4 PCI Express® Gen3 interface to offer up to 32 Gbps bandwidth for ASM3142/ASM2142. Four USB port devices are connected and working at the same time, which can provide up to 6 Gbps of actual effective bandwidth for each USB port.

In addition to transfer data bandwidth advantage, it features on-board regulated 5V DC power supply 1.5A current limit to supply stable 5V DC power to external USB devices.

Combining high bandwidth, industrial-grade power design and reliable cable connection, it brings convenience to interface USB3.0/USB3.1 devices operating under Windows system and Linux system.

Rock Series: LR-LINK PCIe2.0 x4 4P Type A 5Gb USB 3.0 Adapter LRSU9A72-4A(3U)

Functional Characteristics

• x4 PCI Express® Gen3 interface (4GB/s total bandwidth)

• On-board 5V DC regulated power supply, no external power needed

• 1.5A current limit

• Support most Windows and Linux system

• Compliant with

- Universal Serial Bus 3.1 specification Rev. 1.0

- Intel® xHCI specification Rev. 1.0

Host Interface

PCIe x4 channel, compatible with PCIe x8 and PCIe x16 slot

Skinny version adapter card(support 2U,3U metal case)

Operating System Support

Operating System:

Windows XP

Windows 7/8/8.1/10/Vista

Windows server2008/server2012 (win8/8.1/10/2012 free driver)
