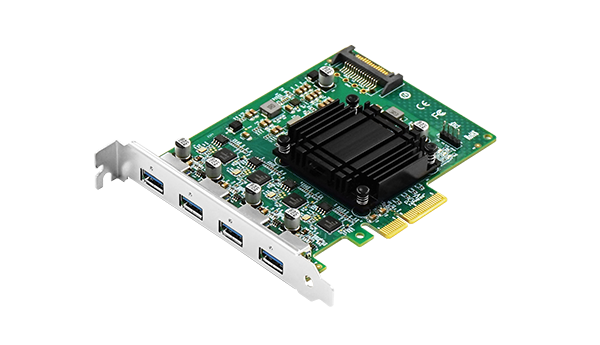

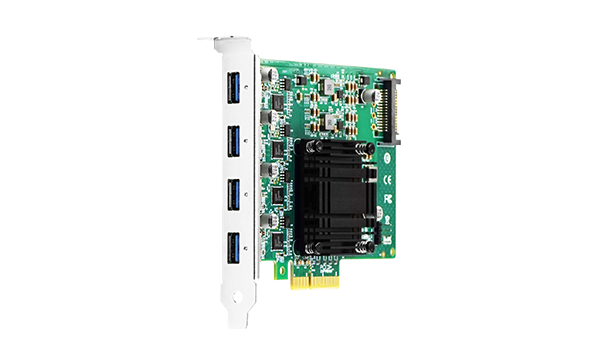

PCIe2.0 x4 4P Type A 5Gb USB 3.0 Adapter

Model

LRSU9A72-4A(3U)

Bus Type

PCI-Express 2.0 x4

I/O Controller

Renesas uPD720202

External Port

USB 3.2 Gen1 Type-A

Number of ports

4

Transfer Speed

per channel: 5Gb/s

ESD_Contact discharge

Contact discharge

±8KV(Class A)

ESD_Air discharge

Air discharge

±4KV(Class A)

ESD test classification

Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser.

Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the disturbance stops, without operator intervention;

Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore;

Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data.

Device Connector

USB 3.2 Gen1 Type-A

Host Bus

PCI-Express 2.0 x4

Humidity

15%-90%

Operating Temperature

0℃-85℃(32℉-185℉)

Storage Temperature

-20℃-70℃(-4℉-158℉)

Min Power(w)

3.648W

Max Power(w)

11.76W

PCB size(unit:mm)

98*124*1.6

Product Weight(unit:g)

*

Package size (unit: mm)

208*143*25

Included in Package

1 - USB 3.2 Gen1 Adapter

1 - Full bracket(installed)
