LRSU9A71-4A(3U)

PCIe 2.0 x1 | Renesas uPD720201 | USB 3.0 | 5Gbps | Quad-port

LRSU9A71-4A(3U)

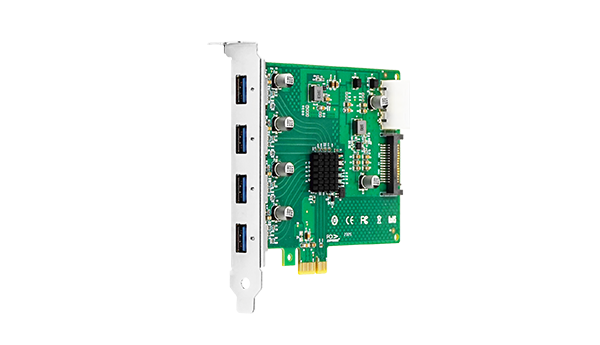

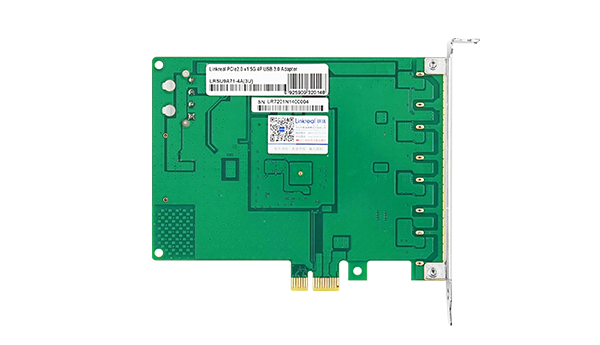

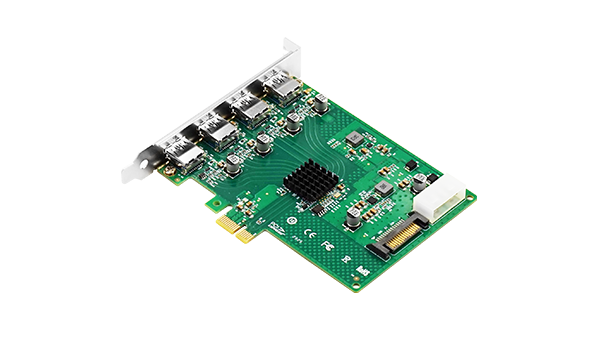

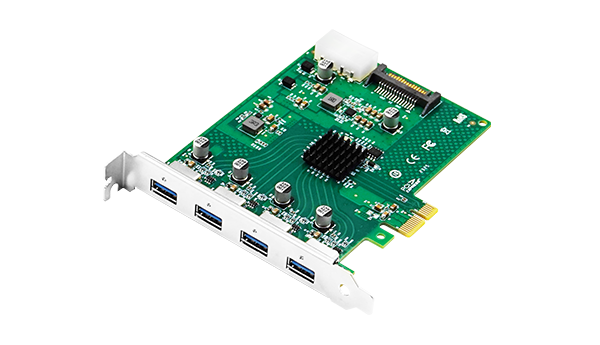

PCIe2.0 x1 5G 4P USB3.0 Adapter

Renesas uPD720201 main control chip, USB3.0 host controller
ŸSupport 4 USB 3.0 Gen1 ports
ŸUp to 5Gbps shared bandwidth performance
ŸBackward compatible with USB2.0 functions and devices
ŸPCIe2.0 x1 interface, compatible with slots x4, x8, x16
ŸCompliant with USB Link Protocol Revision V1.0
ŸCompliant with the Universal Serial Bus USB 3.0 Gen1 specification
ŸSupport multiple USB interface devices to run at the same time
Overview

LRSU9A71-4A(3U) is a PCI-Express 2.0 x1 four-port USB 3.2 Gen1 adapter developed based on the Renesas uPD720201 master control solution. This USB adapter can easily expand 4 USB ports to a PC or server to connect multiple external devices, such as industrial cameras, through available x1 or higher PCle slots. This USB adapter has a USB 3.2 Gen1 port with a channel bandwidth of up to 5 Gbps. The unique structural design allows the product to have a shared bandwidth of 5Gbps. At the same time, this port supports hot plugging, and users can connect and disconnect external drives as needed. . The adapter configures the new USB 3.2 Gen1 standard to support data transfer speeds that are ten times faster than the previous generation USB 2.0 standard.


Specifications

HARDWARE

Model

LRSU9A71-4A(3U)

Bus Type

PCI-Express 2.0 x1

I/O Controller

Renesas uPD720201

External Port

USB 3.2 Gen1 Type-A

Number of ports

4

Transfer Speed

5Gb/s

ESD_Contact discharge

Contact discharge

±8KV(Class A)

ESD_Air discharge

Air discharge

±15KV(Class B)

ESD test classification

Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser.

Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the disturbance stops, without operator intervention;

Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore;

Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data.

CONNECTOR

Device Connector

USB 3.2 Gen1 Type-A

Host Bus

PCI-Express 2.0 x1

ENVIRONMENTAL

Humidity

15%-90%

Operating Temperature

0-60(32-140)

Storage Temperature

-20-70(-4-158)

Min Power(w)

1.039W

Max Power(w)

1.089W

PHYSICAL CHARACTERISTICS

PCB size(unit:mm)

98*124*1.6

Product Weight(unit:g)

*

PACKAGING INFORMATION

Package size (unit: mm)

179*150*30

WHAT'S IN THE BOX

Included in Package

1 - USB 3.2 Gen1 Adapter

1 - Full bracket(installed)


Driver
File name For OS Version Upload time Downlaod
RENESAS-USB3-Host-Driver-30230-setup Windows 3.0.23.0 2024-08-14
