SFP+ | 10G | 1m

SFP+-DAC-1m

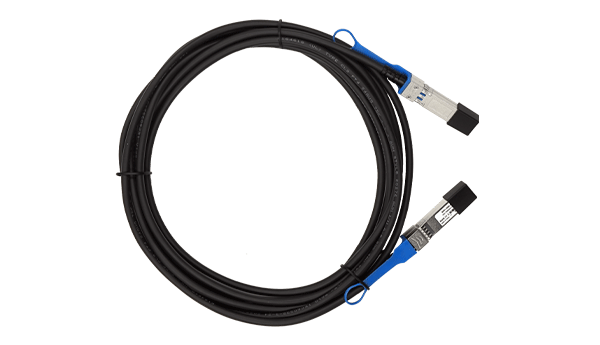

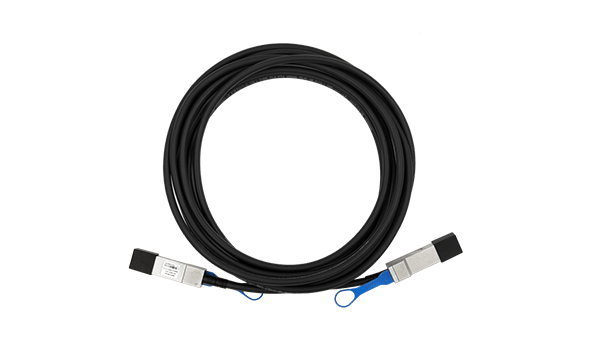

SFP+ 10G Direct Attach Cable

Single power supply +3.3V;

AC coupled inputs and outputs;

Up to 10 Gb/s bi-directional data links;

Compliant with 10GFC;

Compliant with SFF-8431;

RoHS Compliant;

Enhanced EMI design;

Operating Case Temperature: 0℃~+70℃;

Storage Temperature: -40℃~+85℃;

SFP+-DAC-1m

PDF 303.86KB

Download

More Support

Overview Specifications Related products

Overview

LR-LINK SFP+-DAC-1m passive direct attach cable uses shielded high-speed differential cables, supports 10G transmission rates, and is backward compatible with 1G rates.SFP+ passive cable is the preferred solution for short-distance applications. It is widely used for data transmission between data centers and cabinets or adjacent cabinets. Its biggest feature is low cost, ultra-low power consumption (less than 0.1 watt) and high reliability.

SFP+-DAC-1m cable compliant with 10 Gigabit Ethernet standards and SFP Multi-Source Agreement (MSA) standards, increase port density and save costs, and are suitable for high-density connections between network devices.

Specifications

Absolute Maximum Ratings
Parameter	Symbol	Min.	Typical	Max.	Unit
Supply Voltage	VCC	3.14	3.30	3.46	V
Storage Temperature	TST	-40	-	85	℃
Operating temperature	TOPC	0	-	70	℃
Relative Humidity (non-condensing)	RH	0	-	85	%
Bit Error Rate	BER	-	-	E-12	-
Recommended work environment
Parameter	Symbol	Min.	Typical	Max.	Unit
Operating Case Temperature	TA	0	-	70	℃
Power Supply Voltage	VCC	3.14	3.30	3.46	V
Data Rate per Lane	DR	-	10.3125	-	Gbps

P/N	Description	Length
SFP+-DAC-1m	SFP+ 10G Direct Attach Cable	1m
SFP+-DAC-3m	SFP+ 10G Direct Attach Cable	3m
SFP+-DAC-5m	SFP+ 10G Direct Attach Cable	5m
SFP+-DAC-7m	SFP+ 10G Direct Attach Cable	7m
SFP+-DAC-10m	SFP+ 10G Direct Attach Cable	10m
