SFP+-DAC-3m

SFP+ | 10G | 3m

SFP+-DAC-3m

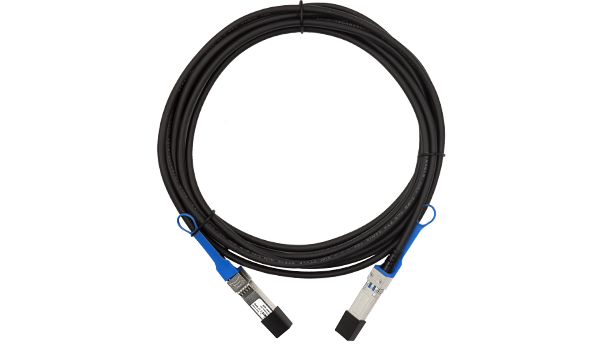

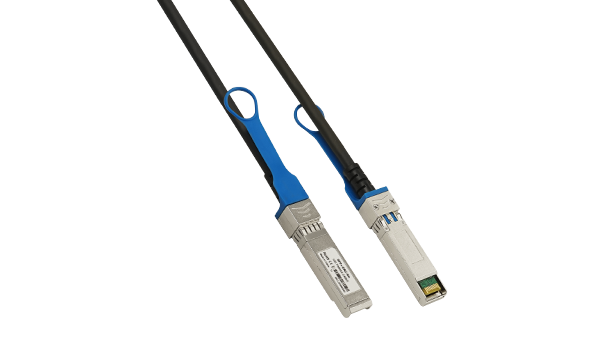

SFP+ 10G Direct Attach Cable

Single power supply +3.3V;
AC coupled inputs and outputs;
Up to 10 Gb/s bi-directional data links;
Compliant with 10GFC;
Compliant with SFF-8431;
RoHS Compliant;
Enhanced EMI design;
Operating Case Temperature: 0℃~+70℃;
Storage Temperature: -40℃~+85℃;
Overview

LR-LINK SFP+-DAC-3m passive direct attach cable uses shielded high-speed differential cables, supports 10G transmission rates, and is backward compatible with 1G rates.SFP+ passive cable is the preferred solution for short-distance applications. It is widely used for data transmission between data centers and cabinets or adjacent cabinets. Its biggest feature is low cost, ultra-low power consumption (less than 0.1 watt) and high reliability.




SFP+-DAC-3m cable compliant with 10 Gigabit Ethernet standards and SFP Multi-Source Agreement (MSA) standards, increase port density and save costs, and are suitable for high-density connections between network devices.


Specifications


Absolute Maximum Ratings

Parameter

Symbol

Min.

Typical

Max.

Unit

Supply Voltage

VCC

3.14

3.30

3.46

V

Storage Temperature

TST

-40

-

85

Operating temperature

TOPC

0

-

70

Relative Humidity (non-condensing)

RH

0

-

85

%

Bit Error Rate

BER

-

-

E-12

-

Recommended work environment

Parameter

Symbol

Min.

Typical

Max.

Unit

Operating Case Temperature

TA

0

-

70

Power Supply Voltage

VCC

3.14

3.30

3.46

V

Data Rate per Lane

DR

-

10.3125

-

Gbps
