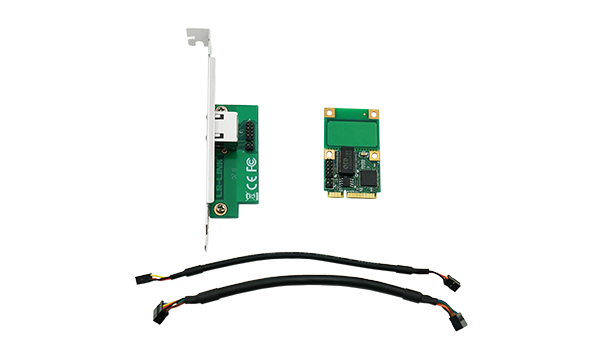

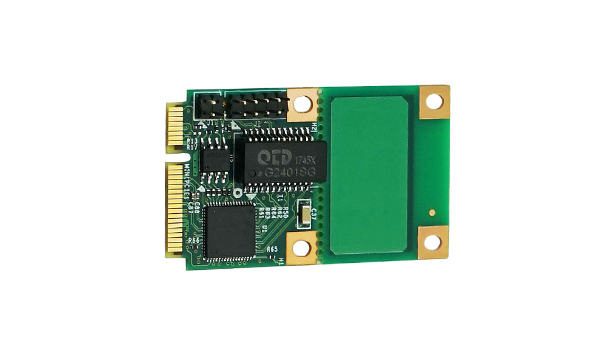

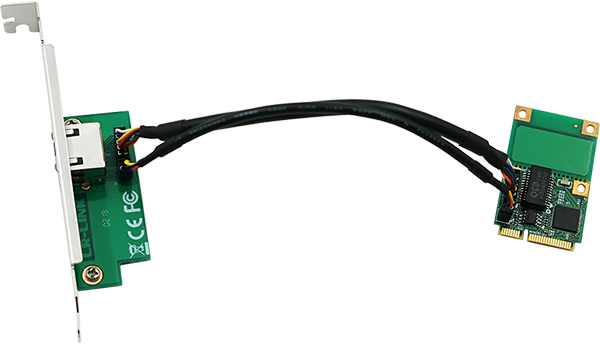

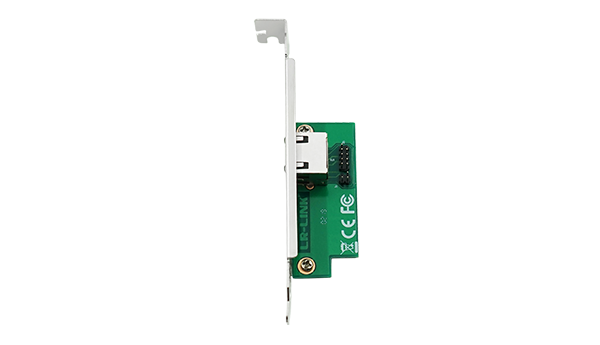

Mini PCIe Single-port Gigabit Copper Ethernet Network Adapter (Intel I210)

Controller

Intel(R) Chip

Transmission medium

Copper

Type

1000Base-T Cat 5E/6 or higher , up to 100m

100Base-Tx Cat5/5E/6 or higher , up to 100m

10Base-T Category 3/4/5/5E/6 or higher , up to 100m

Baffle Height

Half & full height

Power Consumption

1.0W

Connector

1*1G RJ45

PCI-e Bus Type

Mini PCI Express

Data rate per port

10/100/1000Mbps

Power supply

Mini PCIe

Standards compliant

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs
IEEE 802.3x
IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

OS Support

* Windows 7、8/8.1、10

* Windows Server 2008 / R2

* Windows Server 2012 / R2

* Windows Server 2016 / R2

* Windows Server 2019 / R2

* Linux Stable Kernel version 2.6.x / 3.x / 4.x or later

* CentOS / RHEL 6.x / 7.x or later

* Ubuntu14.x/16.x or later

* FreeBSD 9 / 10 / 11 or later

* Vmware ESX/ESXi 5.x / 6.xor later

PXE

No

DPDK

Yes

WOL

No

iSCSI

Yes

Jumbo Frames

Yes

FCoE

No

LED Indication

LED Indication

1000Mbps：Orange bright + Green flashing

10Mbps/100Mbps: Green flashing

Environment Features

Operating Temperature

0℃ to 55℃ (32℉ to 131℉)

Storage Temperature

-40℃ to 70℃ (-40℉ to 158℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35℃

Certification

FCC B,CE

Physical Features

Product Size(mm)

30*50.9*1.0 + 63*25.3*1.6

Sackage Size (mm)

170*150*30

Weight(g)

139
