Mini PCIe | Intel I350 | 1G | RJ45 | Dual-port

LRES2217PT

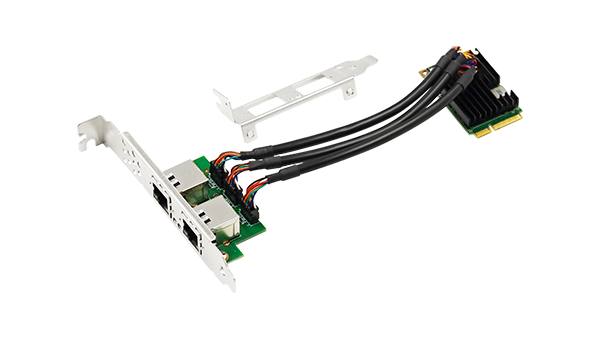

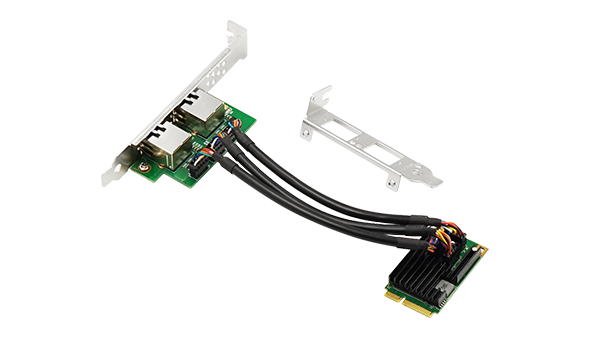

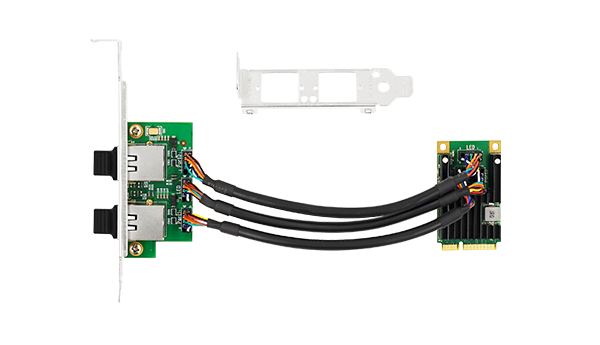

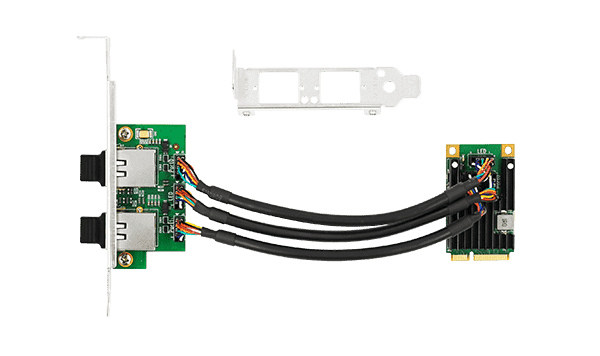

Mini PCIe Dual-port Gigabit copper Ethernet card (Intel I350)

The adapter card adopts a wider RJ45 spacing design

The interface specially designed for industrial cable access

The efficient radiator can effectively solve the problem of heat dissipation of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time

carefully selected the thickened gold sink RJ45 connector to ensure more solid and reliable connection

2* 8-pin RJ45 connector design can better save precious motherboard slot resources

LRES2217PT

PDF 429.13KB

Download

More Support

Overview Specifications Driver

Overview

LRES2217PT is a Mini PCIe dual port gigabit ethernet network adapter developed by Linkreal Co., Ltd. based on Intel master control solution.

The adapter adopts Mini PCI-E full-height slot design, which is designed to be used in industrial computers, single board computers and other industrial equipment with Mini PCIe interface slots. It can greatly solve the problem of compact device space. The ethernet adapter supports 10/100/1000Mbps connection rate to automatically adapt to the existing ethernet network.

This ethernet adapter can be widely used in industrial computer, embedded computer, single board computer, digital multimedia and other network equipment, can achieve Windows, Linux and other systems support.

Mini PCIe Dual-port SFP Gigabit Ethernet Network Adapter (Intel I350): LRES2203PF-2SFP

Specifications

Controller	Intel I350
Baffle Height	Half height and full height configuration
Power Consumption	3.0W
System Support	Windows 7/8/8.1/10/11;
	Windows Server 2008 R2/2012 R2/2016 R2/2019 R2/2022 R2
	Linux Stable Kernel version 2.6.x / 3.x/4.x or later;
	Linux CentOS/RHEL 6.x / 7.x or later;
	Ubuntu 14.x/15.x/16.x or later;
	VMware ESX/ESXi 4.x/5.x/6.x or later;
Bus Type	Mini PCIe
Data rate	10/100/1000MbE
Connector	2*8-Pin RJ45

Protocol Support	IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
PXE	No
DPDK	Yes
Jumbo Frames	Yes
iSCSI	No
Jumbo Frames	Yes
WoL	No
FCoE	No

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
