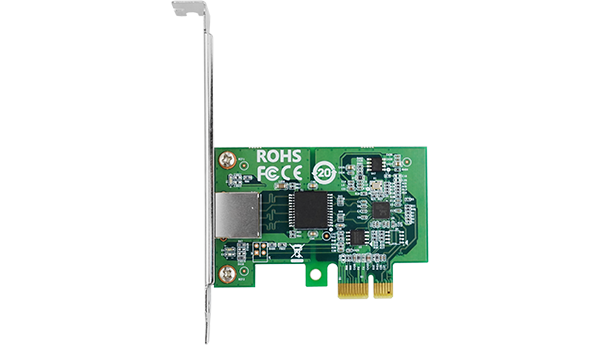

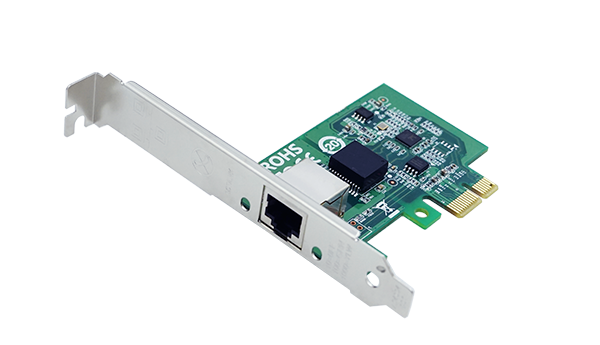

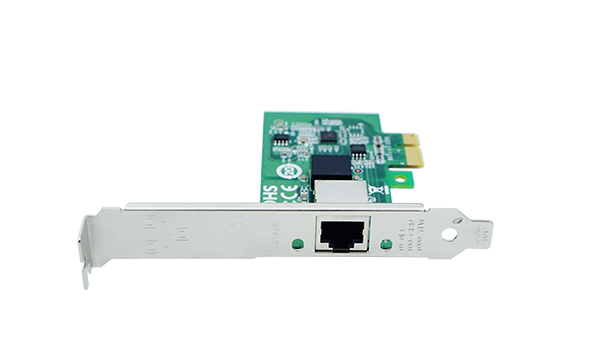

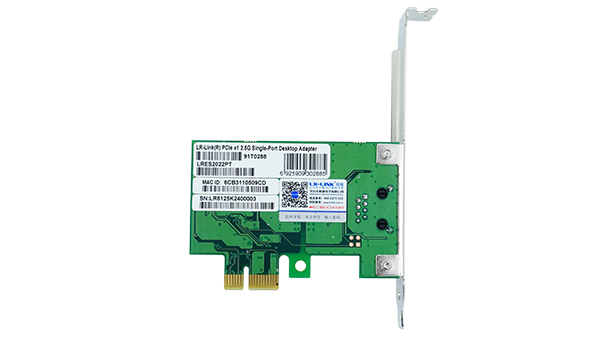

LRES2022PT is a PCIe x1 2.5G Ethernet network adapter independently developed by Linkreal Co., Ltd. based on the Realtek RTL8125BG solution. This adapter card has a universal and low-cost way to deploy 2.5GbE Ethernet network connections. It can provide the network with four speed links: 2.5 Gbps, 1G, 100Mbps, 10Mbps. This product is designed to be used without the need for a 10 Gigabit port but a Gigabit network port, which can solve the computer's link demand for network speed.
This network adapter card adds a 2.5GBASE-T technology Ethernet port to the computer through the PCIe x1 slot. Can be widely used in industrial control computers, embedded computers, single board computers, digital multimedia and other network equipment, can achieve Windows, Linux and other system support. Through the existing Gigabit Ethernet network, 2.5 Gigabits, which is up to 250% higher than the Gigabit network speed, is realized, and an efficient, energy-efficient and cost-effective multi-gigabit Ethernet solution is realized.
PCIe x1 Single-port 2.5G Copper Ethernet Network Adapter (Intel I225): LRES2031PT
Controller | Realtek RTL8125BG |
Baffle Height | Full height & half height |
Transmission medium | Copper |
Cable type | 2500Base-T/1000Base-T Cat 5E/6 or higher,up to 100m |
100Base-Tx Cat5/5E/6 or higher,up to 100m | |
10Base-T Category 3/4/5/5E/6 or higher,up to100m | |
Power Consumption | 1.0W |
System Support | Windows 7/8/8.1/10 |
Windows Server 2008 R2/2012 R2/2016 R2/2019 /2019 R2; | |
Linux Stable Kernel version 2.6.32/3.x/4.x or later; | |
Linux CentOS/RHEL 6.5 / 7.x or later; | |
Ubuntu 14.x/15.x/16.x or later; | |
VMware ESX/ESXi 4.x/5.x/6.x or later | |
Bus Type | PCIe x1 |
Data rate supported per port | 10/100/1000/2500MbE |
Connector | 1*2.5G RJ45 |
Standards compliant | IEEE 802.3bz (2.5GBASE-T) IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3i 10BASE-T IEEE 802.3x Full Duplex and flow control IEEE 802.3ad Link aggregation for parallel links IEEE 802.1Q VLAN IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) |
iSCSI | No |
WoL | Yes |
Jumbo Frames | YES |
DPDK | Yes |
PXE | Yes |
FCoE | No |
File name | For OS | Version | Upload time | Downlaod |
---|---|---|---|---|
LRES2022PT_Install_PCIE_WinServer2022_110.1_09012022_Win Server 2022 Auto Installation Program (NDIS) | Windows | 110.1_09012022 | 2024-08-12 | |
LRES2022PT_Install_Win7_7154_11022022_Win7 and Server 2008 R2 Auto Installation Program | Windows | 10/14/2022,7.154.1014.2022 | 2024-08-12 | |
LRES2022PT_Install_Win8_8.1_8100_11042022_Win8, Win8.1 and Server 2012 Auto Installation Program | Windows | 8100_11042022 | 2024-08-12 | |
LRES2022PT_Install_Win11_Win10_10072_07232024 | Windows | 10072_07232024 | 2024-08-12 | |
LRES2022PT linux driver | Linux | 9.013.02 | 2024-08-12 | |
rtl_bsd_drv_v1100.00 | FreeBSD | v1100.00 | 2024-08-09 |
