LRES2031PT

PCIe 3.1 x1 | Intel I225 | 2.5G | RJ45 | Single-port

LRES2031PT

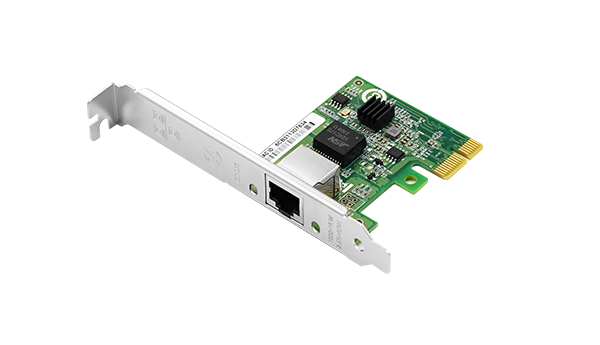

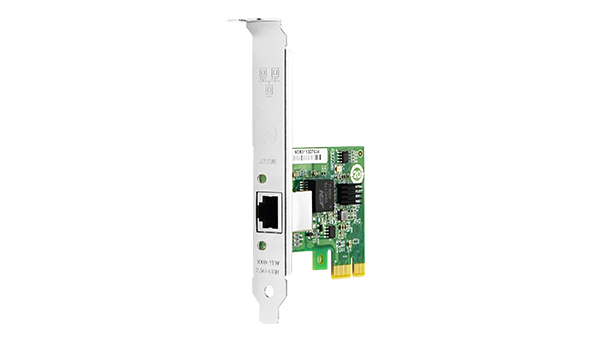

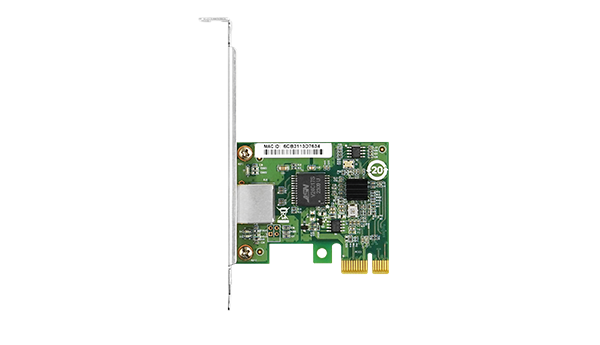

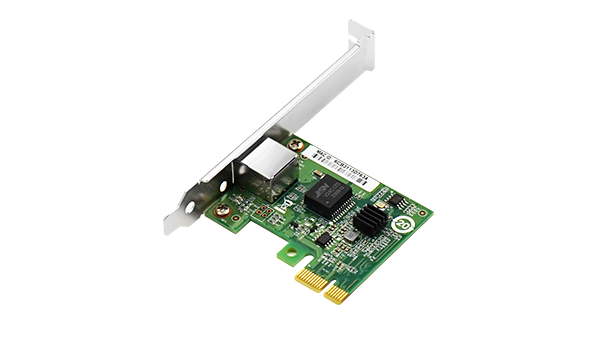

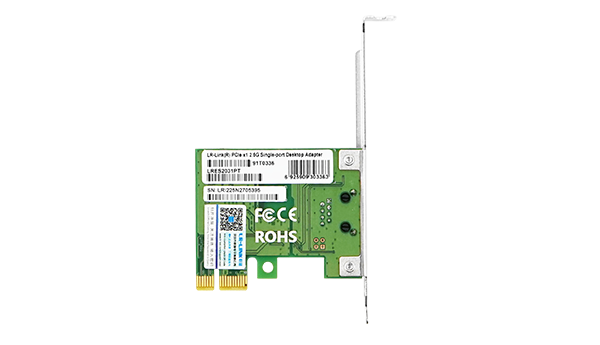

PCIe x1 Single-port 2.5G Copper Ethernet Network Adapter (Intel I225)

A PCIe x1 Single Port 2.5G Ethernet Network Adapter
For home network, home storage, network games and other applications that require high quality network to provide better network performance than gigabit network.
Widely used in household storage, industrial computer, embedded computer, single board computer, digital multimedia and other applications.
Overview

LRES2031PT is a PCIe x1 single port 2.5G Ethernet network adapter developed by Shenzhen Linkreal Co., Ltd. based on Intel master control scheme. This adapter provides better network performance than gigabit network for high quality network requirements such as home network, home storage, online games and other applications. Solve in do not need to link but the use of gigabit can not be satisfied with the occasion.




By using the card to add a 2.5G speed network link port on the computer, to achieve faster than gigabit network speed, better cost-effective network card; It can be widely used in household storage, industrial computer, embedded computer, single board computer, digital multimedia and other applications.




PCIe x1 Single-port 2.5G Copper Ethernet Network Adapter (RTL8125BG): LRES2022PT


Specifications

Controller

Intel Chip

Baffle Height

Full-height & half-height bracket

Power Consumption

2.0W

System Support

Windows 10




* AMD is not support

Bus Type

PCIe v3.1 x1,compatible with x4/x8/x16

Data rate per port

100MbE/1/2.5GbE

Connector

1*2.5G RJ45

Protocol Support

IEEE 802.3bz 2.5GBASE-T Ethernet

IEEE 802.3ab 1000BASE-T Ethernet

IEEE 802.3u 100BASE-TX Ethernet

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

iSCSI

No

WoL

Yes

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No


Driver
File name For OS Version Upload time Downlaod
Release_28.2.zip OS Independent v28.2 2024-07-19
