PCIe 2.1 x1 | BCM5721 | 1G | RJ45 | Single-port

LREC9210PT

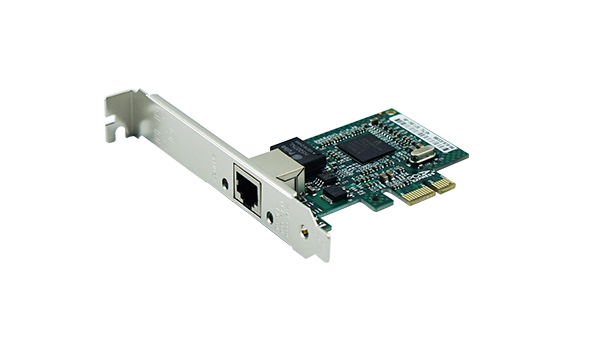

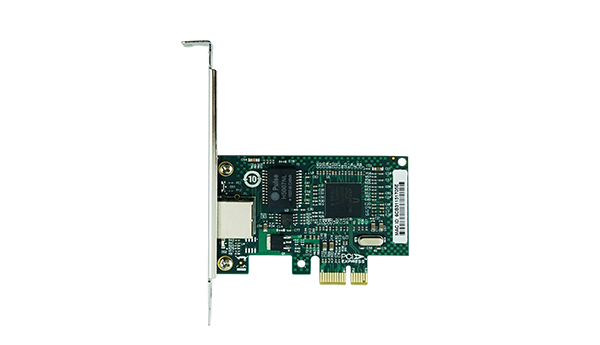

PCIe x1 Single-port Copper Gigabit Ethernet Network Adapter (BCM5721)

Single port gigabit based on Broadcom master control;

Compatible with PCIe X4 \ X8 \ X16 channels;

Support IPMI 1.5 manageable standard, allowing remote management of devices;

Fully integrated 10/100/1000BASE-T Gigabit Ethernet MA and on-chip buffer memory.

LREC9210PT

PDF 641.47KB

Download

More Support

Overview Specifications Related products

Overview

LREC9210PT is a single-port copper cable Gigabit PCIe x1 Ethernet network adapter independently developed by Linkreal Co., Ltd. based on Broadcom master control scheme, compatible with PCIe x4 \ x8 \ x16 channels at the same time.

Broadcom BCM5721 for the LREC9210PT supports the IPMI 1.5 manageable standard, allowing remote management of devices, and a fully integrated 10/100/1000Base-T Gigabit Ethernet MAC with integrated on-chip buffer memory.

Jumbo Frame Transfer, No Frame Loss: LR-LINK PCIe x4 Single-port 10G Copper Ethernet Network Adapter LRES2051PT

Specifications

Controller	Broadcom Chip
Baffle Height	Full-height & half-height bracket
Power Consumption	1.5W
System Support	Windows 7/8/8.1/10
	Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2
	Linux Stable Kernel version 2.6/3.x/4.x or later;
	Linux CentOS/RHEL 7.x or later;
	Ubuntu 16.x or later;
	VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type	PCIe v2.1 x1，compatible with x4 \x8 \ x16
Data rate per port	10/100/1000MbE
Connector	1*1G RJ45

Protocol Support	IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588
iSCSI	No
WoL	No
Jumbo Frames	YES
DPDK	Yes
PXE	Yes
FCoE	No
