PCIe 2.1 x1 | Intel I210 | 1G | Single-port

LREC9204CT

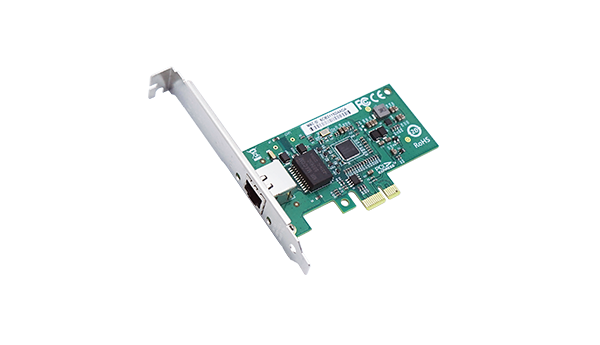

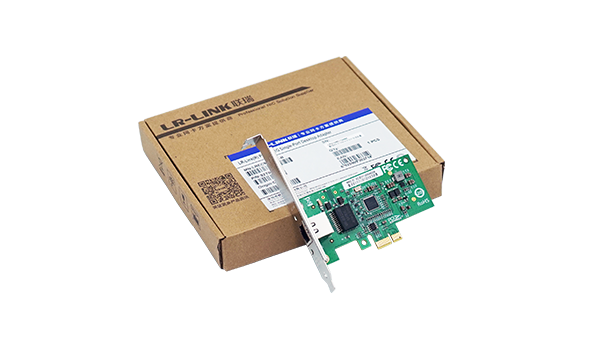

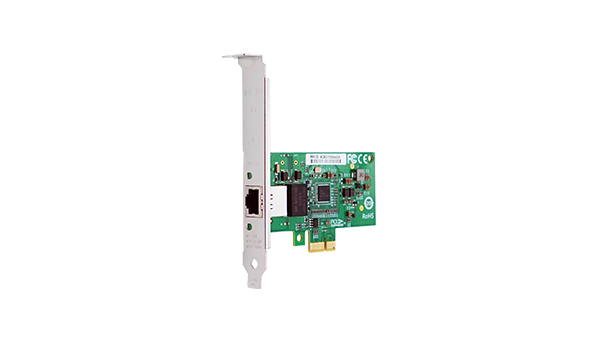

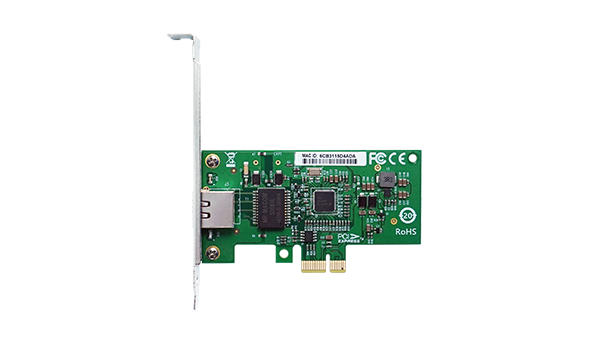

PCIe x1 1G Single-port Desktop Adapter (Intel I210 Based)

Integrate power management technologies such as energy-saving Ethernet and DMA merging to improve energy efficiency;

Supports commercial and industrial temperature applications;

Full wake support;

Adopt miniaturized design without loss of performance.

LREC9204CT

PDF 663.73KB

Download

More Support

Overview Specifications Related products

Overview

LREC9204CT is a PCIe x1 1G Single-port Desktop Adapter developed by Linkreal Co., Ltd. based on the Intel I210 main control solution. This Gigabit adapter adopts a miniaturized design without reducing the various performance indicators of the network card.

It adopts Ethernet power management technologies such as energy-saving Ethernet and DMA merging, and has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. By combining parallel and pipeline logic architecture in together to effectively manage packets with latency.

It achieves high-performance network data transmission on the machine bus architecture and is compatible with Ethernet and Fast Ethernet, thus greatly reducing customer deployment and training costs. Users can easily and quickly migrate the network to Gigabit Ethernet 10/100/1000Mbps. The link rate adapts to the links on the network.

Specifications

Model	LREC9204CT
Controller	Intel I210
Cable medium	Copper
Cable Type	CAT5	50m:1Gbps 100m:1Gbps 150m:1Gbps
	CAT6	50m:1Gbps 100m:1Gbps 150m:1Gbps
	CAT6E	50m:1Gbps 100m:1Gbps 150m:100Mbps
	CAT7	50m:1Gbps 100m:1Gbps

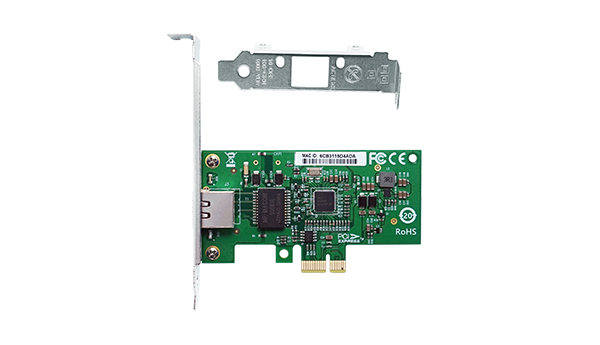

Baffle Configuration	Full height & half height
Bus Type	PCIe v2.1(2.5GT/s) x1 , compatible with x8 , x16
Data Rate	10/100/1000Mbps
Connector	1*RJ45
ESD	Air discharge	±15KV
	Contact discharge	±8KV
Lightning surge test	±2kV common mode
Power Consumption(mini)	0.363W
Power Consumption(max)	0.834W
System Support	* Windows 7/8/ 8.1/10/11 * Windows Server 2008/2012/2016 * Windows Server 2019/2022 * RHEL/Centos7.6/7.9/8.2/8.3 * Deepin 15.11/20/ 20.6/ 20.9 * Ubuntu 18.04.5/20.04.1 * Ubuntu 22.04.2/22.04.3 * SUSE 12.5/15.4 * FreeBSD 12.2/13.2 * ZTE New Fulcrum 3.2.2/ 5.0.5 * Galaxy Unicorn v10		* NeoKylin 7.6 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Tongxin UOS 20 * Emind OS * OpenKylin 0.7.5 * VMware ESXi 6.5/ 6.7/7.0 * Mikrotik * iKuai router
PXE	Yes
WoL	Yes
Jumbo frame	Yes
SR-IOV	No
1588 PTP	Yes
UEFI	Yes
Standards Compliant	IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3u 100BASE-T Ethernet IEEE 802.3z IEEE 802.3 IEEE 802.1Q VLANs IEEE 802.3x IEEE 802.3az - Energy Efficient Ethernet (EEE)
