PCIe 2.0 x4 | Net-swift 1860 | 1G | RJ45 | Six-port

LRES2047PT

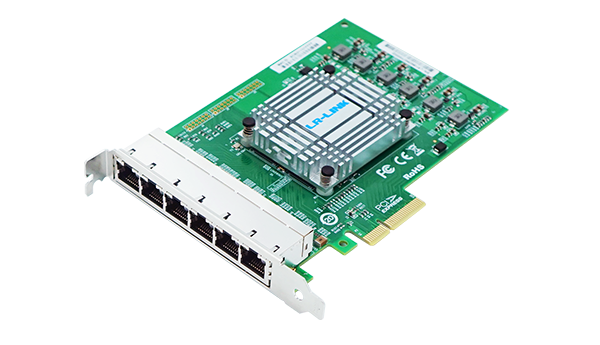

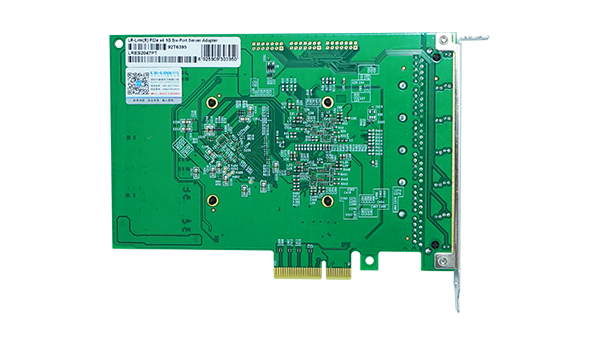

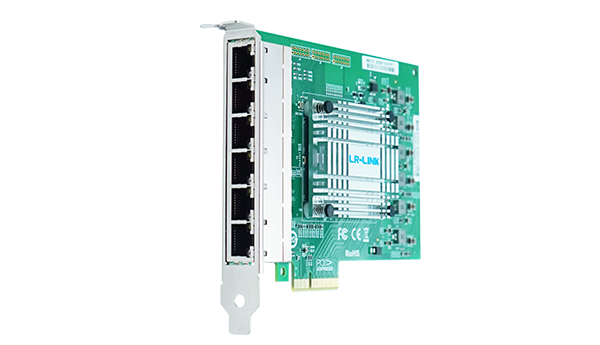

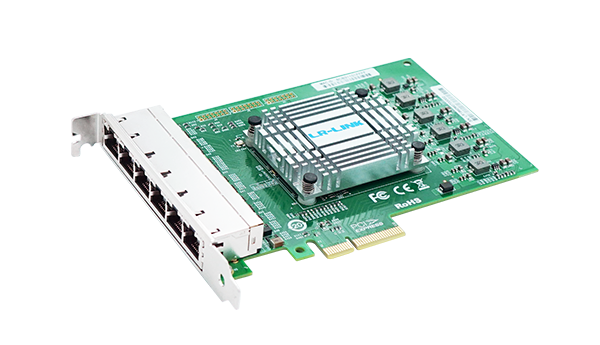

PCIe x4 Six-port Gigabit Copper Ethernet Network Adapter (Net-swift 1860)

Developed on the basis of the controller solution designed and produced with Net-swift;

A PCI Express v2.0 x4 Six-port copper gigabit ethernet network adapter.

It is widely used in network communication and used on PC servers, embedded and other network devices.

It is of great significance for breaking the monopoly of certain enterprises and ensuring information security.

LRES2047PT

PDF 386.42KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES2047PT is a PCI Express v2.0 x4 Six-port copper gigabit ethernet network adapter developed by Linkreal Co., Ltd. based on Net-swift 1860. This adapter can be compatible with PCIe x8 and x16 .

The ethernet network card (LRES2047PT) with Net-swift 's independent intellectual property rights launched by Shenzhen Lianrui Electronics Co., Ltd. has a fully integrated gigabit ethernet media access control (MAC) module. It is widely used in network communication, and can also be used on PC servers, embedded and other network devices.

The main controller used by Net-swift's independent intellectual property rights and independent controllability, which is of great significance for breaking the monopoly of certain enterprises and ensuring information security.

The controller used by LRES2047PT is autonomous and controllable. The indicators including data transmission, data network bandwidth, average transmission delay, and actual small packet transmission rate have reached the industry level.

PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter: LRES2025PT

Specifications

Controller	Net-swift 1860
Transmission medium	Copper
Copper Type	Cat 5E & Cat6 or higher, 1000Base-T up to 100m
	Cat 5 & Cat5E or higher, 100Base-T up to 100m
	Cat 3,4,5 & Cat5E or higher, 10Base-T up to 100m
Baffle Height	Full-height bracket
Power Consumption	*W
OS Support	Windows 7/8/8.1/10/11
	Windows Server 2008 R2 /2012 R2 /2016 R2 /2019 R2
	Linux SLES 11/12
	CentOS / RHEL 6.6 ~ 7.4
	Ubuntu 14.04/16.10
	iKuai 3.6.4
Bus Type	PCIe v2.0 x4，compatible with x8，x16
Data rate per port	10/100/1000Mbps
Connector	6*1G RJ45 Connector
Power supply	PCIe

Standards compliant	IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.1Q VLAN IEEE 802.1AS IEEE 802.1Qau IEEE 802.1p IEEE 802.1Qbg Virtual Bridging IEEE 802.1Qbb Priority Flow Control
iSCSI	No
WoL	*
Jumbo Frames	Yes
DPDK	Yes
PXE	Yes
FCoE	No
PCI-SIG/SR-IOV	Yes
IPsec	Yes

Operating Temperature	0℃ to 70℃ (32℉ to 158℉)
Storage Temperature	-40℃ to 70℃ (-40℉ to 158℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35℃
Certification	FCC, CE, RoHS

Size (mm ±0.5mm)	*
Weight (g ±2g)	*

LED indication

Driver

File name	For OS	Version	Upload time	Downlaod
Win Driver_tn_setup.exe	Windows	1.2.0606.2023	2024-05-05
ngbe-1.2.6.zip	Linux	1.2.6	2024-05-05
