PCIe 2.1 x4 | Intel I210AT | 1G | RJ45 | Dual-port

LRES1051PT

PCIe x4 Dual-port 1G Ethernet Network Adapter (Intel I210AT Based)

Comply with PCIe2.1 design specifications;

Supports 9.5KB jumbo data frames;

Support IEEE 1588 PTP clock synchronization;

Support 10/100/1000Mbps network adaptation;

LRES1051PT

PDF 311.98KB

Download

More Support

Overview Specifications Driver Related products

Overview

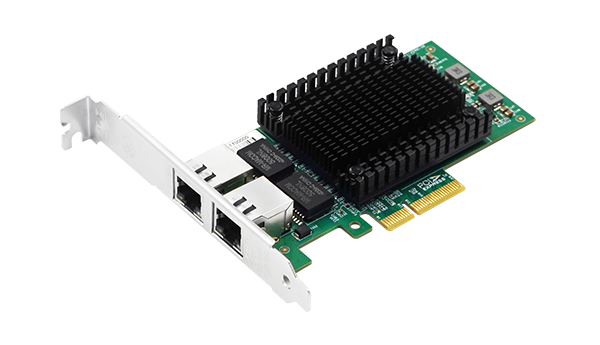

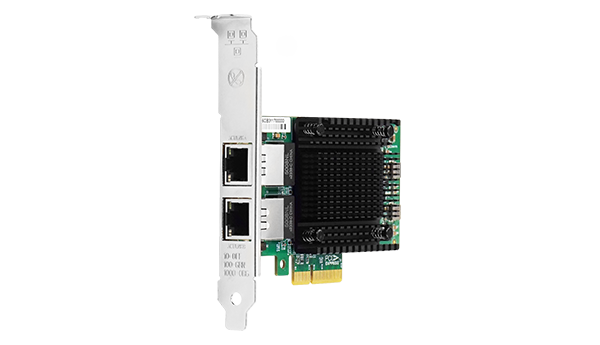

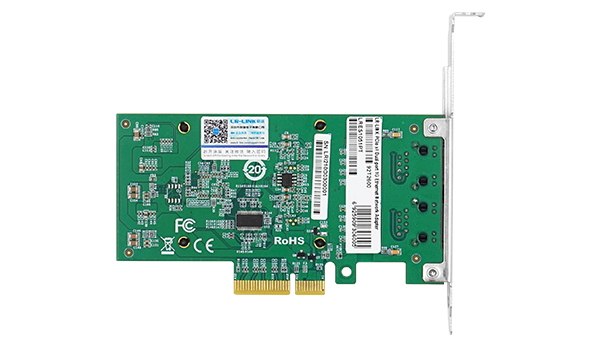

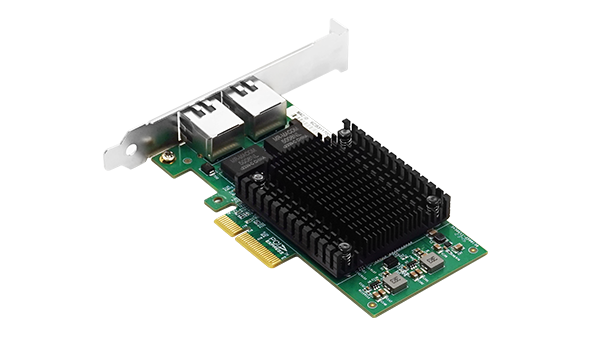

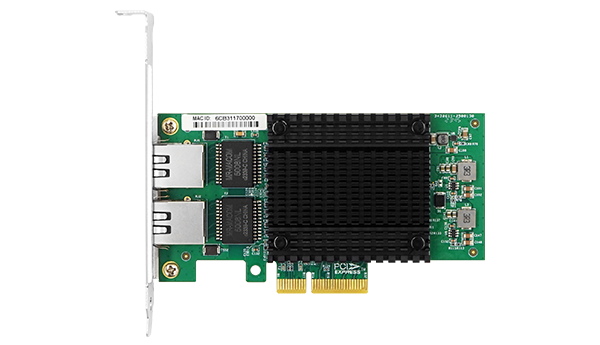

LRES1051PT is a PCIe2.1 x4 dual-port 1G Ethernet Network Adapter developed based on the Intel I210AT main control solution. The adapter uses PCIe 2.1 x4 interface, equipped with dual electrical port design, and supports Gigabit Ethernet connection, making the network layout more flexible while ensuring the bandwidth and speed of data transmission. It adopts Ethernet power management technologies such as energy-saving Ethernet and DMA merging, and has 4 send queues and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission, by combining parallel and pipeline logic architecture together to efficiently manage packets with latency. LRES1051PT supports Wake-on-LAN function, which can remotely wake up the device through the network to facilitate remote management and maintenance. At the same time, its UEFI compatibility ensures stable startup and operation on various platforms, enhancing system compatibility and reliability. LRES1051PT is suitable for various scenarios such as industrial automation control systems, machine vision applications, Internet of Things equipment, and industrial monitoring systems, providing users with stable and reliable network connection and control functions.

Specifications

Model	LRES1051PT
Controller	Intel I210AT
Cable medium	Copper
Fiber Type	1000BASE-T、100BASE-TX、10BASE-T
Bracket Height	Low Profile & Full Height
Power (min)	2.808W
Power (max)	3.684W
Bus Interface	PCIe v2.1 (2.5GT/s) x1; Structure PCIe x4
Data rate per port	10Mbps；100Mbps；1Gbps
Connector	2* RJ45
ESD	±8KV
Lightning surge test	±2KV
Power Supply	PCIe
Operating System Support	* Windows 7/8/8.1/10/11 * Windows Server 2008/ 2012 * Windows Server 2016/2019 * Windows Server 2022 * RHEL/Centos7.6/7.9/8.2/8.3 * Deepin 15.11/ 20(deepin) * Deepin 20.6/20.9(deepin) * Ubuntu 18.04.5/20.04.1 * Ubuntu 22.04.2/ 22.04.3 * SUSE 12.5/15.4 * FreeBSD 12.2/13.2 * ZTE New Fulcrum 3.2.2/5.0.5	* Galaxy Unicorn v10 * NeoKylin 7.6 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Tongxin UOS 20 * Emind OS * OpenKylin 0.7.5 * VMware ESXi 6.5/6.7/7.0 * Mikrotik * iKuai router
RSS	4
PXE	No
WoL	Yes
DPDK	Yes
Jumbo Frames	Yes
UEFI	Yes
SR-IOV	No
1588 PTP	Yes
Jumbo Frame(max)	9.5KB
Protocol Support	IEEE802.3u IEEE802.3ab IEEE 802.1AS IEEE 802.1Qav IEEE 802.3az

10Mbps	Connection Status	Green Link
10Mbps	Transfer status	Green Blink
100Mbps	Connection Status	Green Link + Green Link
100Mbps	Transfer status	Green Link + Green Blink
1Gbps	Connection Status	Green Link + Orange Link
1Gbps	Transfer status	Green Blink + Orange Link

Operating Temperature	0℃ to 70℃ (32℉ to 158℉)
Storage Temperature	0℃ to 70℃ (32℉ to 158℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
