PCIe 2.0 x4 | RNP N500L-AM4 | 1G | RJ45 | Quad-port

LRES1048PT

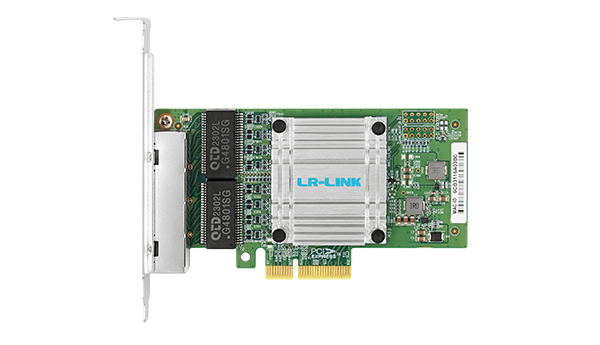

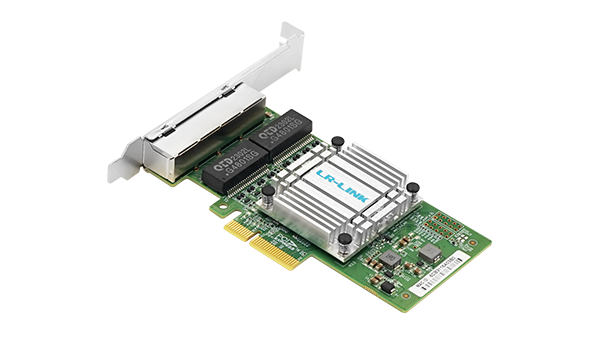

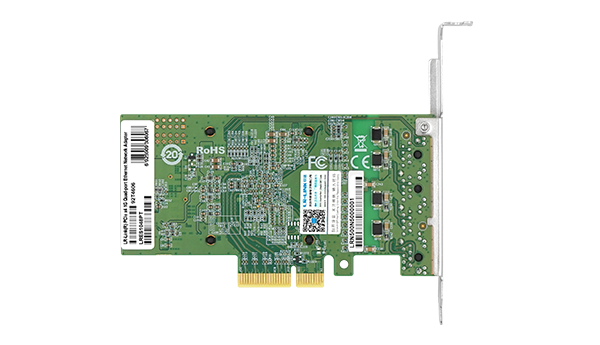

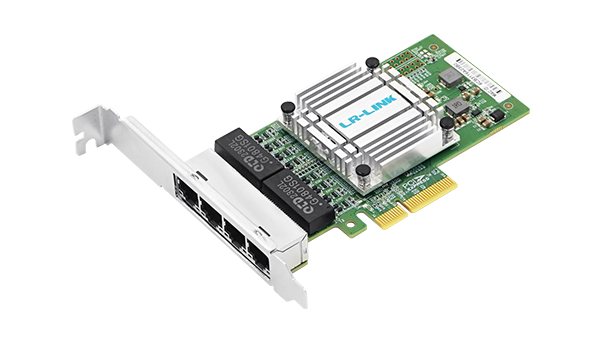

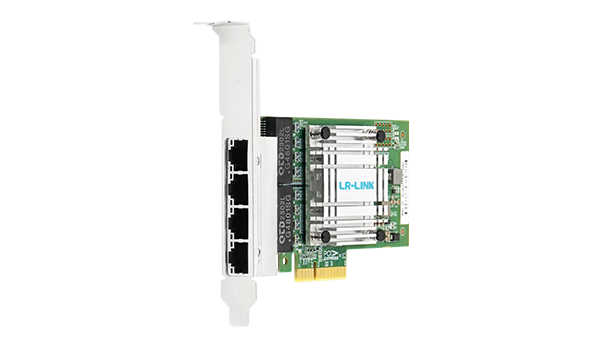

PCIe x4 1G Quad-port Ethernet Network Adapter (Mucse RNP N500L-AM4 Based)

Support network protocol hardware acceleration;

Support cross detection and automatic correction;

Support IEEE 1588 PTP clock synchronization;

Support 10/100/1000Mbps network adaptation;

LRES1048PT

PDF 988.13KB

Download

More Support

Overview Specifications Related products

Overview

LRES1048PT is a PCIe 2.0 x4 1G Quad-port Ethernet network adapter developed based on the Mucse RNP N500L-AM4 main control solution. It is a purely domestic network solution. It utilizes the PCIe 2.0 x4 interface to achieve high-bandwidth and low-latency data transmission, ensuring smooth network operation. Configured with four Gigabit Ethernet interfaces to meet high-density and high-throughput network connection requirements, it is suitable for multiple scenarios such as servers, network security equipment, and data centers. And as a domestic design, it meets the national information security and independent controllability requirements, providing users with a stable and reliable network connection experience. Overall, LRES1048PT creates a highly reliable network adapter for users with its excellent performance and comprehensive applicability.

Specifications

Model	LRES1048PT
Controller	Mucse RNP N500L-AM4
Cable medium	Copper
Fiber Type	1000BASE-T、100BASE-TX、10BASE-T
Bracket Height	Low Profile & Full Height
Power (min)	1.836W
Power (max)	3.384W
Bus Interface	PCIe v2.0 (5.0GT/s) x4
Data rate per port	10Mbps；100Mbps；1Gbps
Connector	4*1G RJ45
Power Supply	PCIe
Operating System Support	* Deepin 20 /20.6 /20.9 * Galaxy Unicorn V10 * NeoKylin 7.6 * RHEL/CentOS 7.6 /7.9 /8.3/8.4 * Ubuntu 16.04.3 /18.04.5 * Ubuntu 20.04.1 /22.04.2 * ZTE New Fulcrum 5.0.5 /3.2.2 * Tongxin UOS 20	* Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * iKuai route * Open Kylin 0.7.5
RSS	8 queues per port
PXE	Yes
MDI/MDI-X	Yes
DPDK	Yes
WoL	Yes
Jumbo Frames	Yes
SCAN CHAIN	No
IEEE 1588	Yes
SR-IOV	Yes
UEFI	Yes
Jumbo Frame(max)	9.5KB
Protocol Support	IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 802.3az - Energy Efficient Ethernet (EEE)

10Mbps	Connection Status	Green Link
10Mbps	Transfer status	Green Blink
100Mbps	Connection Status	Green Link + Green Link
100Mbps	Transfer status	Green Link + Green Blink
1Gbps	Connection Status	Green Link + Orange Link
1Gbps	Transfer status	Green Blink + Orange Link

Operating Temperature	-40℃ to 85℃ (-40℉ to 185℉)
Storage Temperature	-40℃ to 85℃(-40℉ to 185℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS
