Home
Products
Cyber Security Cards
One-Way NICs
1 G

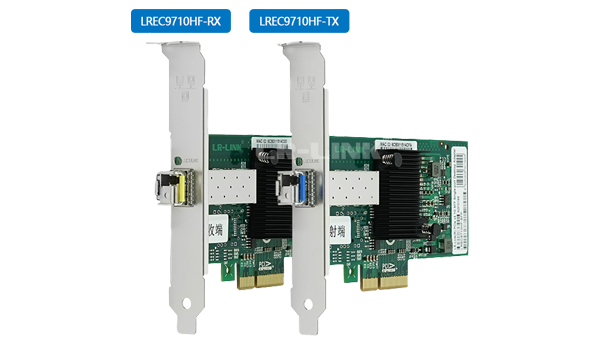

LREC9710HF-TX RX
LREC9710HF-TX RX

PCIe 2.1 x4 | Intel I350 | 1G | LC | Single-port

LREC9710HF-TX RX

PCIe x4 1G Fiber Uni-directional Server Adapter (Intel I350)

Gigabit One-way Adapter
PCI Express (PCIe) v2.1, 5 GT/s, x4 lanes
Single LC Connectivity
PXE, iSCSI boot
Network Virtualization
Data Plane Development Kit (DPDK) support
Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
Low profile and full-height bracket
LREC9710HF-TX RX
PDF 0B
Download
More Support
Overview

LREC9710HF-TX/RX is used the latest optical fiber One-way transmission technology, effectively guarantee the stability of data transmission, reduce the packet loss rate. Since the one-way transmission characteristics of light, this Ethernet Adapter has not only achieved physical separation between the internal computer network and the external network, but also ensured the data between internal and external networks in real time, reliable, secure One-way transmission.  LREC9710HF-TX/RX adapter can be widely used in public security, government systems, military and other security departments as well as used in other confidential computer network.


Specifications

Controller

Intel I350

Transmission Rate Per Port

1000Mbps

Network Standard Physical Layer Interfaces

1000BASE-LX: 10Km at 9µm

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 55 °C (32 °F to 131 °F)

LED Indicators

Link/Activity  LED: Off = No Link; On = Link; Blinking = Activity

Operating System Support

Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /  2016 R2

Windows 7 / 8 / 8.1 / 10

Linux SLES 10 / 11 or later

Linux Stable Kernel version 2.6.32/3.x/4.x or later

VMvare ESX/ESXi 4.x/5.x/6.x or later


Driver
File name For OS Version Upload time Downlaod
Release_28.2.zip OS Independent v28.2 2024-07-19
